You have created a TGW route table to route traffic from your spoke VPC to the security VPC where two FortiGate devices are inspecting traffic. Your spoke VPC CIDR block is already propagated to the Transit Gateway (TGW) route table.
Which type of attachment should you use to advertise routes through BGP from the spoke VPC to the security VPC?

1. A. Connect attachment
2. B. VPC attachment
3. C. Route attachment
4. D. GRE attachment

Correct Answer: B
A VPC attachment is the type of attachment that allows you to connect a VPC to a TGW and advertise routes through BGP. A VPC attachment creates a VPN connection between the VPC and the TGW, and enables dynamic routing with BGP. A connect attachment is used to connect a VPN or Direct Connect gateway to a TGW. A route attachment is not a valid type of attachment for TGW. A GRE attachment is used to connect a FortiGate device to a TGW using GRE tunnels. References:
✑ Creating the TGW and related resources
✑ Configuring TGW route tables
✑ FortiGate Public Cloud 7.2.0 - Fortinet Documentation
✑ Updating the route table and adding an IAM policy

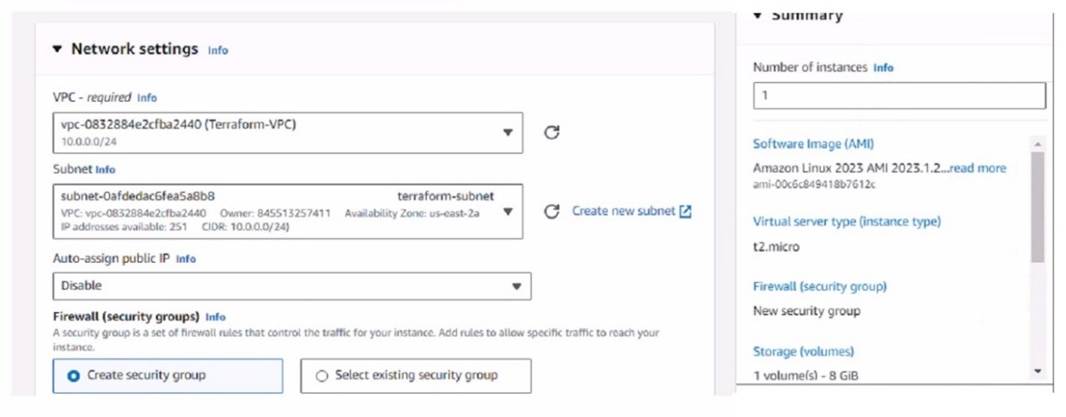

Refer to the exhibit.

You have deployed a Linux EC2 instance in Amazon Web Services (AWS) with the settings shown on the exhibit
What next step must the administrator take to access this instance from the internet?

1. A. Configure the user name and password.
2. B. Enable source and destination checks on the instance
3. C. Enable SSH and allocate it to the device
4. D. Allocate an Elastic IP address and assign it to the instance

Correct Answer: D
The next step the administrator must take to access the Linux EC2 instance from the internet is:
D.Allocate an Elastic IP address and assign it to the instance.
✑ Elastic IP (EIP) Requirement:By default, when an EC2 instance is launched in AWS, it receives a public IP address from Amazon's pool, which is not static. This IP address can change, for example, if the instance is stopped and started again. To have a static IP address, you need to allocate an Elastic IP (EIP), which is a persistent public IP address, and then associate it with the instance.
✑ Public Accessibility:Without an Elastic IP, the instance may not be accessible over the internet after a reboot or stop/start sequence. Assigning an Elastic IP ensures the instance can be accessed consistently using the same IP address.
References:The AWS documentation on EC2 instances details the process and need for Elastic IPs to ensure consistent internet access to instances.

What are two main features in Amazon Web Services (AWS) network access control lists (ACLs)? (Choose two.)

1. A. You cannot use Network ACL and Security Group at the same time.
2. B. The default network ACL is configured to allow all traffic
3. C. NetworkACLs are stateless, and inbound and outbound rules are used for traffic filtering
4. D. Network ACLs are tied to an instance

Correct Answer: BC
* B. The default network ACL is configured to allow all traffic. This means that when you create a VPC, AWS automatically creates a default network ACL for that VPC, and associates it with all the subnets in the VPC1. By default, the default network ACL allows all inbound and outbound IPv4 traffic and, if applicable, IPv6 traffic1. You can modify the default network ACL, but you cannot delete it1. C. Network ACLs are stateless, and inbound and outbound rules are used for traffic filtering. This means that network ACLs do not keep track of the traffic that they allow or deny, and they evaluate each packet separately1. Therefore, you need to create both inbound and outbound rules for each type of traffic that you want to allow or deny1. For example, if you want to allow SSH traffic from a specific IP address to your subnet, you need to create an inbound rule to allow TCP port 22 from that IP address, and an outbound rule to allow TCP port 1024-65535 (the ephemeral ports) to that IP address2.
The other options are incorrect because:
✑ You can use network ACL and security group at the same time. Network ACL and security group are two different types of security layers for your VPC that can work together to control traffic3. Network ACLacts as a firewall for your subnets, while security group acts as a firewall for your instances3. You can use both of them to create a more granular and effective security policy for your VPC.
✑ Network ACLs are not tied to an instance. Network ACLs are associated with subnets, not instances1. This means that network ACLs apply to all the instances in the subnets that they are associated with1. You cannot associate a network ACL with a specific instance. However, you can associate a security group with a specific instance or multiple instances3.

You need a solution to safeguard public cloud-hosted web applications from the OWASP Top 10 vulnerabilities. The solution must support the same region in which your applications reside, with minimum traffic cost
Which solution meets the requirements?

1. A. Use FortiADC
2. B. Use FortiCNP
3. C. Use FortiWebCloud
4. D. Use FortiGate

Correct Answer: C
The correct answer is C. Use FortiWebCloud.
FortiWebCloud is a SaaS cloud-based web application firewall (WAF) that protects public cloud hosted web applications from the OWASP Top 10, zero day threats, and other application layer attacks1.FortiWebCloud also includes robust features such as API discovery and protection, bot mitigation, threat analytics, and advanced reporting2.FortiWebCloud supports multiple regions across the world, and you can choose the region that is closest to your applications to minimize traffic cost3.
The other options are incorrect because:
✑ FortiADC is an application delivery controller that provides load balancing, acceleration, and security for web applications.It is not a dedicated WAF solution and does not offer the same level of protection as FortiWebCloud4.
✑ FortiCNP is a cloud-native platform that provides security and visibility for containerized applications.It is not a WAF solution and does not protect web applications from the OWASP Top 10 vulnerabilities5.
✑ FortiGate is a next-generation firewall (NGFW) that provides network security and threat prevention. It is not a WAF solution and doesnot offer the same level of protection as FortiWebCloud for web applications.It also requires additional configuration and management to deploy in the public cloud6.
1:Overview | FortiWeb Cloud 23.3.0 - Fortinet Documentation2:Web Application Firewall (WAF) & API Protection | Fortinet3: [FortiWeb Cloud WAF-as-a-Service | Fortinet]4: [Application Delivery Controller (ADC) | Fortinet]5: [Fortinet Cloud Native Platform | Fortinet]6: [FortiGate Next-Generation Firewall (NGFW) | Fortinet]

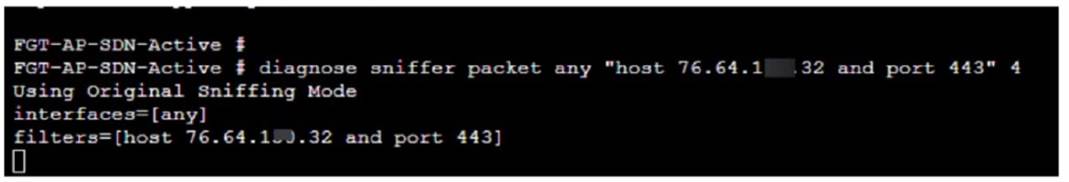

Refer to the exhibit.

An administrator has deployed a FortiGate VM in Amazon Web Services (AWS) and is trying to access it using its public IP address from their local computer However, the connection is not successful and at the same time FortiGate is not receiving any HTTPS or SSH traffic to its external interface
What should the administrator check for possible issue?

1. A. Run a debug flow to check any network ACLs
2. B. Check the FortiGate firewall policies
3. C. Check the FortiGate instance ID
4. D. Check the inbound network security group rules

Correct Answer: D
Considering the situation where the administrator is unable to access the FortiGate VM using its public IP address and no traffic is reaching the FortiGate's external interface, the administrator should check: D.Check the inbound network security group rules.
✑ Network Security Group Rules:AWS uses security groups as a virtual firewall that controls inbound and outbound traffic to AWS resources such as EC2 instances. If the FortiGate VM??s public interface is not receiving HTTPS or SSH traffic, it's likely because the inbound security group rules associated with that interface are not allowing access on the necessary ports (HTTPS - port 443, SSH - port 22).
✑ Troubleshooting:The administrator should verify that the security group rules for the FortiGate VM??s network interface allow inbound traffic on the specific ports used for management access. If these rules are absent or misconfigured, the intended traffic will be blocked, resulting in the inability to connect.
References:The role of security groups in network traffic management is a core concept in AWS and is outlined in AWS documentation. Checking security group rules is a standard troubleshooting step when dealing with connectivity issues to AWS resources.
