Customer XYZ has an ExpressRoute connection from Microsoft Azure to a data center. They want to secure communication over ExpressRoute, and to install an in-line FortiGate to perform intrusion prevention system (IPS) and antivirus scanning.
Which three methods can the customer use to ensure that all traffic from the data center is sent through FortiGate over ExpressRoute? (Choose three.)

1. A. Install FortiGate in Azure and build a VPN tunnel to the data center over ExpressRoute
2. B. Configure a user-defined route table
3. C. Enable the redirect option in ExpressRoute to send data center traffic to a user-defined route table
4. D. Configure the gateway subnet as the subnet in the user-defined route table
5. E. Define a default route where the next hop IP is the FortiGate WAN interface

Correct Answer: CDE

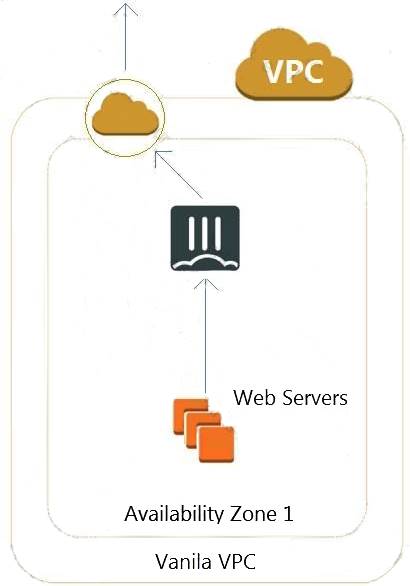

Refer to the exhibit.

A customer has deployed an environment in Amazon Web Services (AWS) and is now trying to send outbound traffic from the Web servers to the Internet. The FortiGate policies are configured to allow all outbound traffic; however, the traffic is not reaching the FortiGate internal interface.
What are two possible reasons for this behavior? (Choose two.)

1. A. The web servers are not configured with the default gateway.
2. B. The Internet gateway (IGW) is not added to VPC (virtual private cloud).
3. C. AWS source and destination checks are enabled on the FortiGate interfaces.
4. D. AWS security groups may be blocking the traffic.

Correct Answer: AD

When an organization deploys a FortiGate-VM in a high availability (HA) (active/active) architecture in Microsoft Azure, they need to determine the default timeout values of the load balancer probes.
In the event of failure, how long will Azure take to mark a FortiGate-VM as unhealthy, considering the default timeout values?

1. A. Less than 10 seconds
2. B. 30 seconds
3. C. 20 seconds
4. D. 16 seconds

Correct Answer: B

You have been asked to develop an Azure Resource Manager infrastructure as a code template for the FortiGate-VM, that can be reused for multiple deployments. The deployment fails, and errors point to the storageAccount name.
Which two are restrictions for a storageAccount name in an Azure Resource Manager template? (Choose two.)

1. A. The uniqueString() function must be used.
2. B. The storageAccount name must use special characters.
3. C. The storageAccount name must be in lowercase.
4. D. The storageAccount name must contain between 3 and 24 alphanumeric characters.

Correct Answer: AC
