- (Exam Topic 1)

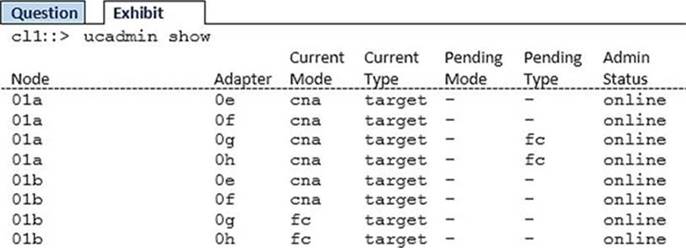

Referring to the exhibit, which two pairs of ports are currently configurable as FC SAN LIFs? (Choose two.)

1. A. 01b, 0h
2. B. 01a, 0g
3. C. 01a, 0h
4. D. 01b, 0g

Correct Answer: D

- (Exam Topic 1)
You are planning to implement a 32 Gb FC SAN on a 2-node AFF A700 ONTAP 9.5 cluster. You need to create 112 FC LIFs across the HA pair with a limit of 20 FC LIFs per physical HBA port.
In this scenario, how many 2-port 32 Gb HBA cards do you need per storage controller?

1. A. 2
2. B. 1
3. C. 4
4. D. 3

Correct Answer: A

- (Exam Topic 2)
When setting up a VLAN for administrative security purposes, which four ports are the only important ports to include in the VLAN? (Choose four.)

1. A. Storage Controllers Management Ethernet ports
2. B. FC Switches Ethernet port
3. C. Hosts iSCSI HBA Ethernet port
4. D. Ethernet Switches Management port
5. E. Storage Controller iSCSI Ethernet Target ports
6. F. Hosts NIC Ethernet port

Correct Answer: ABDF

- (Exam Topic 1)
An administrator wants to design an NVMe solution to connect Linux hosts to an ONTAP cluster. The proposed solution uses two Cisco MDS 9396T switches for each fabric in a top-of-rack design.
In this scenario, which statement is true?

1. A. Asymmetric Namespace Access requires ONTAP 9.4 and higher.
2. B. NVMe solutions require heterogeneous multiple switch fabrics.
3. C. N_Port ID virtualization (NPIV) must be enabled on all switches.
4. D. A middle-of-rack design is required.

Correct Answer: C

- (Exam Topic 1)
A customer has an FC host that needs to be attached to the NetApp AFF A700 dual controller storage cluster. To accomplish this task, which three steps should the customer perform? (Choose three.)

1. A. Configure the FCP service for the node that has the LUN that is being accessed.
2. B. Confirm that the FC HBA driver and firmware is supported according to the Interoperability Matrix Tool (IMT)
3. C. Configure portsets to support the availability of multiple paths.
4. D. Configure an igroup with the WWPN from the host initiator for LUN access.
5. E. Confirm that the switch firmware is supported according to the Interoperability Matrix Tool (IMT).

Correct Answer: CDE
