- (Exam Topic 2)
You are planning few a new AFF A700 2-node switchless FC solution with two Cisco 9100 switches. Each AFF A700 will have one 16 Gb port Connected to each Cisco 9100 switch and four FC LIKs per physical port. You want to guarantee recovery from connection loss on a NetApp physical port and you are using single initiator to multiple target zoning.
What is the minimum number of zones required to accomplish this task?

1. A. 8
2. B. 4
3. C. 2
4. D. 1

Correct Answer: C

- (Exam Topic 1)

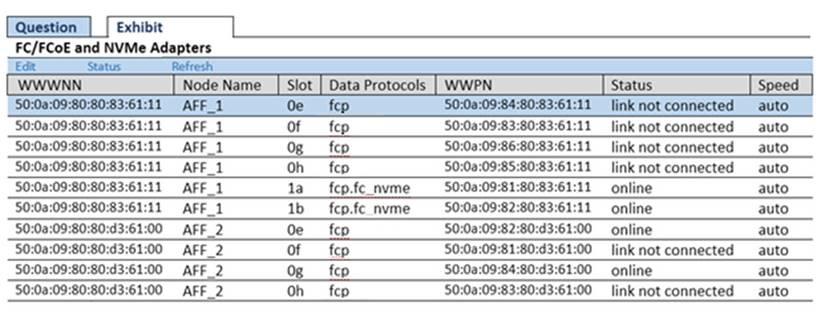

A customer is using both FC and NVMe in a cluster. The customer needs to do some work on AFF_1. Referring to the exhibit, what will happen?

1. A. The NVMe namespaces on AFF_2 will be available after takeover of AFF_1.
2. B. The FC LUNs that use cluster interconnect to access the LUNs on AFF_1 will be unavailable after failover.
3. C. The FC LUNs on node AFF_2 will be unavailable after failover of AFF_1.
4. D. The NVMe namespaces on AFF_1 will be unavailable after takeover by AFF_2.

Correct Answer: C

- (Exam Topic 3)

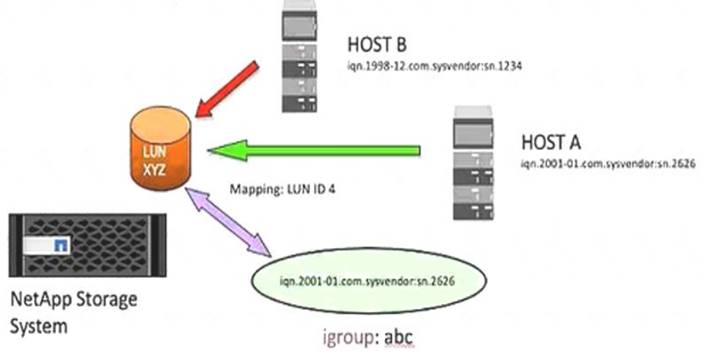

Referring to the exhibit, which security feature would guarantee that the host A system that is mapped to LUN XYZ on the NetApp storage system is the only host that access the LUN?

1. A. igroup setup with the IQN of the ISCSi software initiator on Host A.
2. B. CHAP configured on HOST A and the NetApp Storage System
3. C. igroup setup with no IQNs
4. D. IPsec configured on both host A and the NetApp Storage System

Correct Answer: B

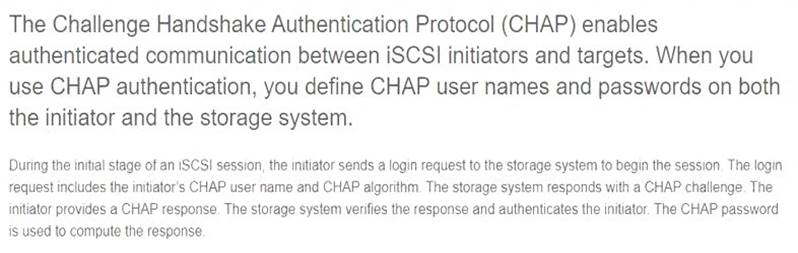

Graphical user interface, text, application, email Description automatically generated

You can find more information on this link:
https://docs.netapp.com/ontap-9/index.jsp?topic=%2Fcom.netapp.doc.dot-cm-sanag%2FGUID-3FC8A37A-FFC

- (Exam Topic 1)
You are provisioning storage to an ESX host that uses iSCSI.
According to NetApp best practice, which three actions accomplish this task? (Choose three.)

1. A. Enable the iSCSI service.
2. B. Bind the iSCSI ports to the software iSCSI adapter.
3. C. Install Virtual Storage Console (VSC) for VMware.
4. D. Enable BGP on the switch.
5. E. Configure MTU 1500 on the switch.

Correct Answer: BCE

- (Exam Topic 1)

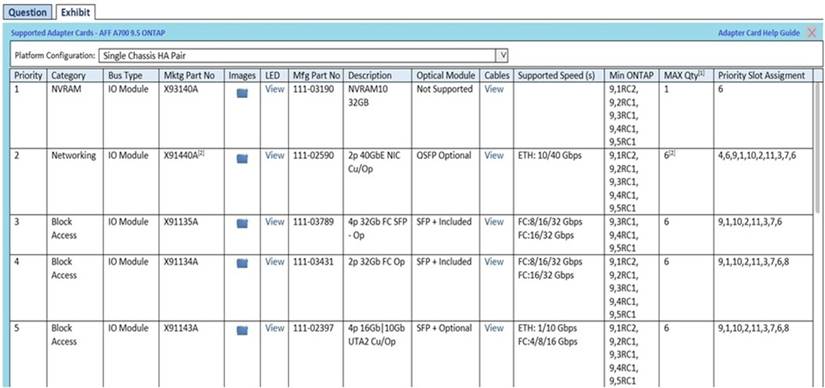

A customer wants to add a 2-port, 32 Gb FC card to support NVMe in an AFF A700 2-node cluster. Currently, there are cards in slots 1, 2, 4, 6, 8, and 9.
Referring to the exhibit, what is the number of the slot that should be used?

1. A. 10
2. B. 3
3. C. 5
4. D. 7

Correct Answer: C
