- (Exam Topic 3)

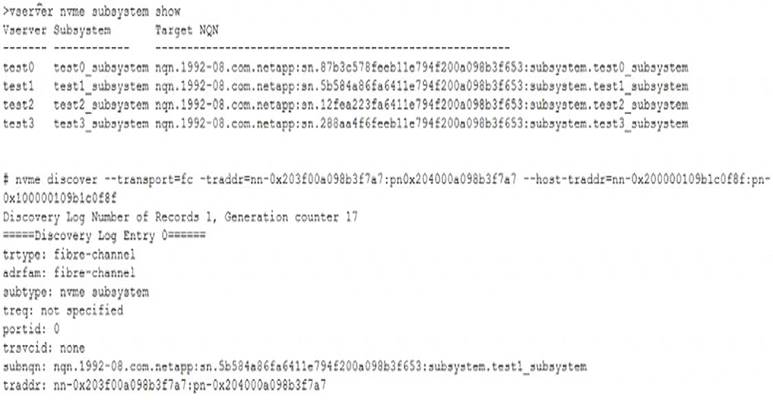

During testing, an administrator notices that the wrong subsystem was returned using the NVMe discover command. The administrator was expecting test0_subsystem as the subsystem
Referring to the exhibit, what would cause the discrepancy?

1. A. The wrong NQN was mapped to the subsystem
2. B. The wrong WWPN was used in the discovery command
3. C. Asymmetric Namespace Access (ANA) was not properly configured
4. D. The NVMe was not configured on the test0 SVM

Correct Answer: A
We can discard that ANA was not properly configured becase this is not a problem about multipathing. We can discard WWPN because this is an NVMe configuration where WWPN is not involved
We can discard that NVMe was not configured because we wouldn't be able to even run that command if that's true
Configure the NQN correctly is one of the steps when we configure NVMe You can find more information on this link:
http://senthil-it-infrastructure.blogspot.com/2020/05/netapp-ontap-97-nvme-configuration-and.html

- (Exam Topic 2)
Exhibit.

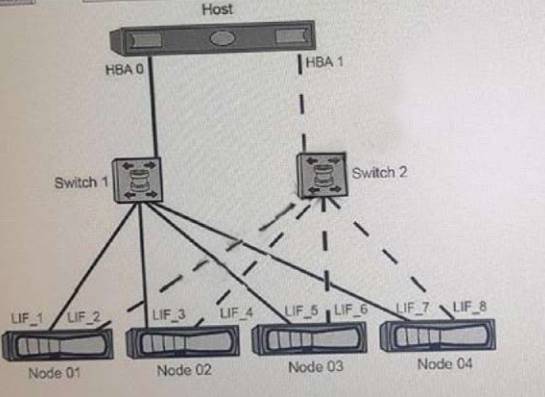

A customer is testing a dual-fabric FC SAN configuration as shown in the exhibit and the zones are implemented on the switches shown below.

If all the nodes are in the SLM reporting nodes list, hoe many path per LUN should the customer expect when simulating an FC SFP failure by bringing LIF_3 offline?

1. A. 15 paths
2. B. 3 paths
3. C. 4 paths
4. D. 7 paths

Correct Answer: D

- (Exam Topic 3)
You are planning to install a new AFF All SAN Array A250 system and want to use persistent ports. In this
scenario, what should be identical within the HA pair?

1. A. FCP port MTU size
2. B. FCP Port
3. C. FCP port names
4. D. FCP port LIF WWNN-based zoning

Correct Answer: C

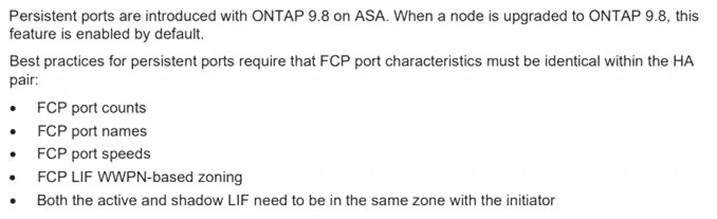

Graphical user interface, text, application, email Description automatically generated

You can find more information on this link: https://www.netapp.com/pdf.html?item=/media/10379-tr4515.pdf&v=20217121554 (11)

- (Exam Topic 2)
Exhibit.

Referring to the exhibit, which type of zoning should be used?

1. A. a WWPN with a single initiator and multiple targets
2. B. a WWPN with a single initiator and a single target
3. C. a WWNN with a single initiator and multiple targets
4. D. a WWNN with a single Initiator and a single target

Correct Answer: B

- (Exam Topic 3)
You have a Netapp ONTAP cluster and are configuring ISCSI for some new hosts . You want to ensure that ISCSI connectivity can survive physical network failures.
In this scenario, which two features would help fulfill this requirement? (choose two)

1. A. Broadcast domains
2. B. Failover groups
3. C. MPIO
4. D. Interface groups

Correct Answer: CD

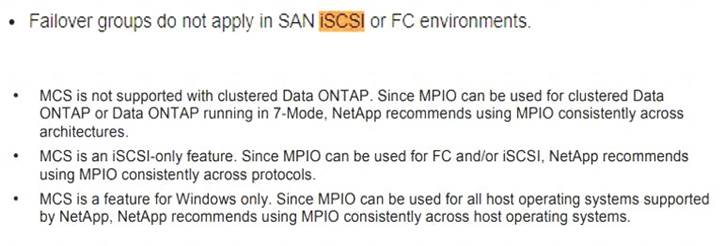

Broadcast Domains are used to segment and create failover groups automatically... Broadcast Domain do not guarantee redundancy on ISCSI because failover groups are not used on ISCSI.
Graphical user interface, text, application, email Description automatically generated
