An organization is using Mulesoft cloudhub and develops API's in the latest version. As a part of requirements for one of the API's, third party API needs to be called. The security team has made it clear that calling any external API needs to have include listing
As an integration architect please suggest the best way to accomplish the design plan to support these requirements?
Correct Answer:
D
An organization is designing an integration solution to replicate financial transaction data from a legacy system into a data warehouse (DWH).
The DWH must contain a daily snapshot of financial transactions, to be delivered as a CSV file. Daily transaction volume exceeds tens of millions of records, with significant spikes in volume during popular shopping periods.
What is the most appropriate integration style for an integration solution that meets the organization's current requirements?
Correct Answer:
D
Correct answer is Batch-triggered ETL Within a Mule application, batch processing provides a construct for asynchronously processing larger-than-memory data sets that are split into individual records. Batch jobs allow for the description of a reliable process that automatically splits up source data and stores it into persistent queues, which makes it possible to process large data sets while providing reliability. In the event that the application is redeployed or Mule crashes, the job execution is able to resume at the point it stopped.
An organization is designing Mule application which connects to a legacy backend. It has been reported that backend services are not highly available and experience downtime quite often. As an integration architect which of the below approach you would propose to achieve high reliability goals?
Correct Answer:
B
Correct answer is Untill Successful scope can be implemented while calling backend API's The Until Successful scope repeatedly triggers the scope's components (including flow references) until they all succeed or until a maximum number of retries is exceeded The scope provides option to control the max number of retries and the interval between retries The scope can execute any sequence of processors that may fail for whatever reason and may succeed upon retry
As a part of project , existing java implementation is being migrated to Mulesoft. Business is very tight on the budget and wish to complete the project in most economical way possible.
Canonical object model using java is already a part of existing implementation. Same object model is required by mule application for a business use case. What is the best way to achieve this?
Correct Answer:
A
Mule 4 is built to:
•Minimize the need for custom code.
•Avoid the need for you to know or understand Java.
However, some advanced uses cases require integration with custom Java code, such as:
•Reuse of a library, such as a tax calculation library.
•Reuse of a canonical object model that is standard in the organization.
•Execution of custom logic using Java.
Mule ref doc : https://docs.mulesoft.com/java-module/1.2/

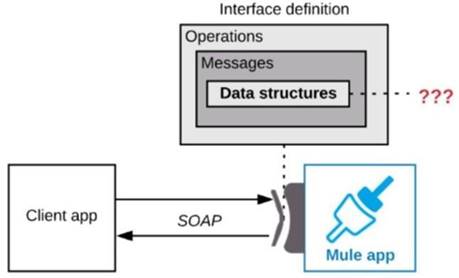

Refer to the exhibit.
A Mule application is being designed to expose a SOAP web service to its clients.
What language is typically used inside the web service's interface definition to define the data structures that the web service Is expected to exchange with its clients?
Correct Answer:
B
Correct Answer XSD In this approach to developing a web service, you begin with an XML schema (XSD file) that defines XML data structures to be used as parameters and return types in the web service operations.
----------------------------------------------------------------------------------------------------------------- Reference:
https://www.w3schools.com/xml/schema_intro.asp
