You are configuring an MX Series router to act as a Layer 3 gateway to route traffic between VXLANs in different data centers across a WAN connection. In this scenario, what must you do to enable this communication?

1. A. Configure route reflectors.
2. B. Change the UDP port used by the VXLANs.
3. C. Configure the IRB interfaces to connect the VXLANs.
4. D. Enable PIM on all interfaces.

Correct Answer: C

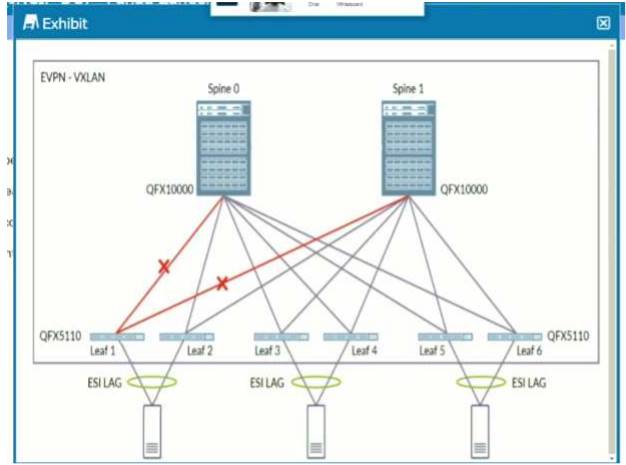

Exhibit.

Referring to the exhibit, what effect does EVPN core isolation have?

1. A. Leaf 1 will send a pause frame to each connected host.
2. B. Leaf 1 will place the interfaces to connected hosts into LACP passive mode.
3. C. Leaf 1 will take down all revenue interfaces.
4. D. Spine 1 will block all traffic.

Correct Answer: C

Which device provides microsegmentation in a data center network?

1. A. vSRX
2. B. EX4300
3. C. vMX
4. D. QFX5100

Correct Answer: A

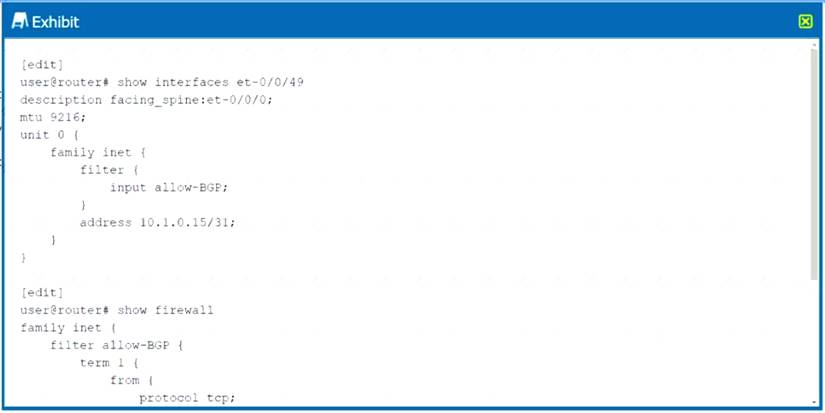

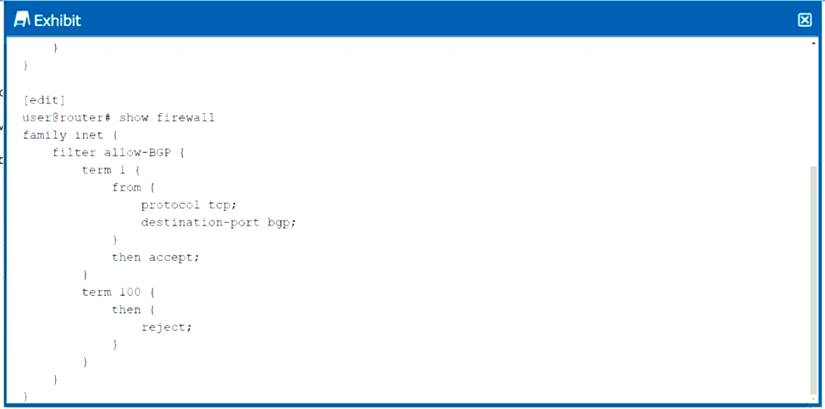

Exhibit.


You administer an EVPN-VXLAN fabric. You notice that there is no VXLAN traffic forwarding through the network.
Referring to the exhibit, which modification will solve the problem?

1. A. set firewall family inet filter allow-BGP term 1 from protocol udp set firewall family inet filter allow-BGP term 1 from destination-port 4789
2. B. set interfaces et-0/0/49 unit 0 family vxlan
3. C. set interfaces et-0/0/49 unit 0 family vpls
4. D. set firewall family inet filter allow-BGP term 1 from protocol tcp set firewall family inet filter allow-BGP term 1 from destination-port 4789

Correct Answer: A

You are an architect for an enterprise organization that currently operates three data centers with plans to expand to five data centers in the next year. You already notice large amounts of BUM flooding and must control this issue before implementing the next two data centers.
Which feature would address this issue?

1. A. type-5 routes
2. B. type-6 routes
3. C. mesh groups
4. D. VXLAN BUM traffic filter

Correct Answer: B
