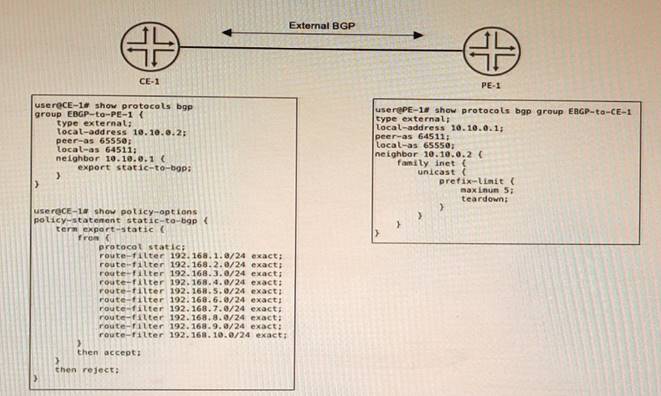

CE-1 must advertise ten subnets to PE-1 using BGP Once CE-1 starts advertising the subnets to PE-1, the BGP peering state changes to Active.
Referring to the CLI output shown in the exhibit, which statement is correct?
Correct Answer:
B
The problem in this scenario is that CE-1 is configured with an incorrect peer AS number for its BGP session with PE-1. The CLI output shows that CE-1 is using AS 65531 as its local AS number and AS 65530 as its peer AS number. However, PE-1 is using AS 65530 as its local AS number and AS 65531 as its peer AS number. This causes a mismatch in the BGP OPEN messages and prevents the BGP session from being established. To solve this problem, CE-1 should configure its peer AS number as 65530 under [edit protocols bgp group external] hierarchy level.
Exhibit

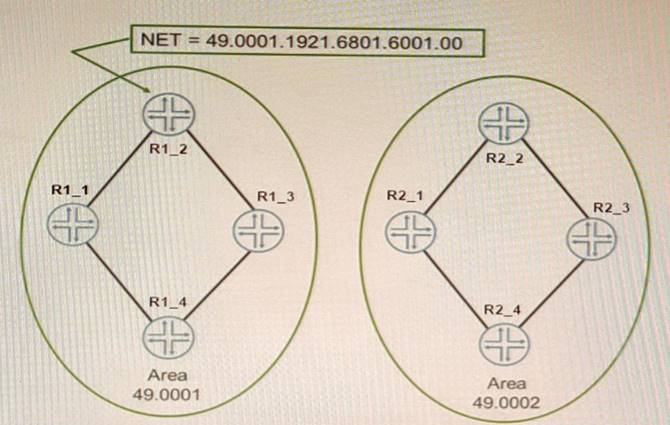

The network shown in the exhibit is based on IS-IS Which statement is correct in this scenario?
Correct Answer:
A
IS-IS is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. IS-IS uses two types of addresses to identify routers and areas: system ID and area address. The system ID is a unique identifier for each router in an IS-IS domain. The system ID is 6 octets long and can be derived from the MAC address or manually configured. The area address is a variable-length identifier for each area in an IS-IS domain. The area address can be 1 to 13 octets long and is composed of high-order octets of the address. An IS-IS instance may be assigned multiple area addresses, which are considered synonymous. Multiple synonymous area addresses are useful when merging or splitting areas in the domain1. In this question, we have a network based on IS-IS with four routers (R1_1, R1_2, R2_1, and R2_2) belonging to area 0001. The area address for area 0001 is 49.0001. The NSEL byte for area 0001 is the last octet of the address, which is 01. The NSEL byte stands for Network Service Access Point Selector (NSAP Selector) and indicates the type of service requested from the network layer2. Therefore, the correct statement in this scenario is that the NSEL byte for area 0001 is 01.
References: 1: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_isis/configuration/xe-16/irs-xe-16-book/irs-ovrvw-cf.html 2:
https://www.juniper.net/documentation/us/en/software/junos/is-is/topics/concept/is-is-routing-overview.html
Exhibit

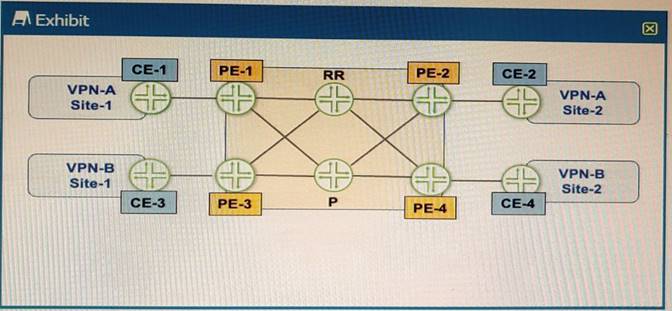

Referring to the exhibit, PE-1 and PE-2 are getting route updates for VPN-B when neither of them service that VPN
Which two actions would optimize this process? (Choose two.)
Correct Answer:
BD
BGP route target filtering is a technique that reduces the number of routers that receive VPN routes and route updates, helping to limit the amount of overhead associated with running a VPN. BGP route target filtering is based on the exchange of the route-target address family, which contains information about the VPN membership of each PE device. Based on this information, a PE device can decide whether to accept or reject VPN routes from another PE device.
BGP route target filtering can be configured on PE devices or on route reflectors (RRs). Configuring BGP route target filtering on RRs is more efficient and scalable, as it reduces the number of BGP sessions and updates between PE devices. To configure BGP route target filtering on RRs, the following steps are required:
✑ Configure the family route-target statement under the BGP group or neighbor configuration on the RRs. This enables the exchange of the route-target address family between the RRs and their clients (PE devices).
✑ Configure the resolution rib bgp.l3vpn.0 resolution-ribs inet.0 statement under the routing-options configuration on the RRs. This enables the RRs to resolve next hops for VPN routes using the inet.0 routing table.
✑ Configure an export policy for BGP route target filtering under the routing-options configuration on the RRs. This policy controls which route targets are advertised to each PE device based on their VPN membership.
Which two statements about IS-IS are correct? (Choose two.)
Correct Answer:
BC
IS-IS is an interior gateway protocol that uses link-state routing to exchange routing information among routers within a single autonomous system. IS-IS uses two types of packets to synchronize link-state databases among routers: Link State Packets (LSPs) and Partial Sequence Number Packets (PSNPs). LSPs contain information about the state and cost of links in the network, and are flooded periodically throughout the network. PSNPs are used to acknowledge receipt of LSPs and request retransmission of missing or corrupted LSPs. PSNPs contain only descriptions of LSPs, such as their sequence numbers and checksums3. IS-IS also uses another type of packet called Complete Sequence Number Packets (CSNPs), which are used to summarize the entire link-state database at regular intervals or when a new adjacency is formed. CSNPs are flooded periodically throughout the network and contain only descriptions of LSPs4. Therefore, PSNPs contain only descriptions of LSPs and CSNPs are flooded periodically. References: 3: https://www.juniper.net/documentation/us/en/software/junos/routing-
policy/topics/concept/routing-policy-is-is-partial-sequence-number-packet-psnp.html 4: https://www.juniper.net/documentation/us/en/software/junos/routing-policy/topics/concept/routing-policy-is-is-complete-sequence-number-packet-csnp.html
