Which two statements are correct about IS-IS interfaces? (Choose two.)

1. A. If a broadcast interface is in both L1 and L2, one combined hello message is sent for both levels.
2. B. If a point-to-point interface is in both L1 and L2, separate hello messages are sent for each level.
3. C. If a point-to-point interface is in both L1 and L2, one combined hello message is sent for both levels.
4. D. If a broadcast interface is in both L1 and L2, separate hello messages are sent for each level

Correct Answer: BD
IS-IS supports two levels of routing: Level 1 (intra-area) and Level 2 (interarea). An IS-IS router can be either Level 1 only, Level 2 only, or both Level 1 and Level 2. A router that is both Level 1 and Level 2 is called a Level 1-2 router. A Level 1-2 router sends separate hello messages for each level on both point-to-point and broadcast interfaces1. A point-to-point interface provides a connection between a single source and a single destination. A broadcast interface behaves as if the router is connected to a LAN.

Which statement is correct about IS-IS when it performs the Dijkstra algorithm?

1. A. The local router moves its own local tuples into the candidate database
2. B. When a new neighbor ID in the tree database matches a router ID in the LSDB, the neighbor ID is moved to the candidate database
3. C. Tuples with the lowest cost are moved from the tree database to the LSDB.
4. D. The algorithm will stop processing once the tree database is empty.

Correct Answer: A
IS-IS is a link-state routing protocol that uses the Dijkstra algorithm to compute the shortest paths between nodes in a network. The Dijkstra algorithm maintains three data structures: a tree database, a candidate database, and a link-state database (LSDB). The tree database contains the nodes that have been visited and their shortest distances from the source node. The candidate database contains the nodes that have not been visited yet and their tentative distances from the source node. The LSDB contains the topology information of the network, such as the links and their costs.
The Dijkstra algorithm works as follows:
✑ The local router moves its own local tuples into the tree database. A tuple consists of a node ID, a distance, and a parent node ID. The local router’s tuple has a distance of zero and no parent node.
✑ The local router moves its neighbors’ tuples into the candidate database. The neighbors’ tuples have distances equal to the costs of the links to them and parent node IDs equal to the local router’s node ID.
✑ The local router selects the tuple with the lowest distance from the candidate database and moves it to the tree database. This tuple becomes the current node.
✑ The local router updates the distances of the current node’s neighbors in the candidate database by adding the current node’s distance to the link costs. If a shorter distance is found, the parent node ID is also updated.
✑ The algorithm repeats steps 3 and 4 until either the destination node is reached or the candidate database is empty.

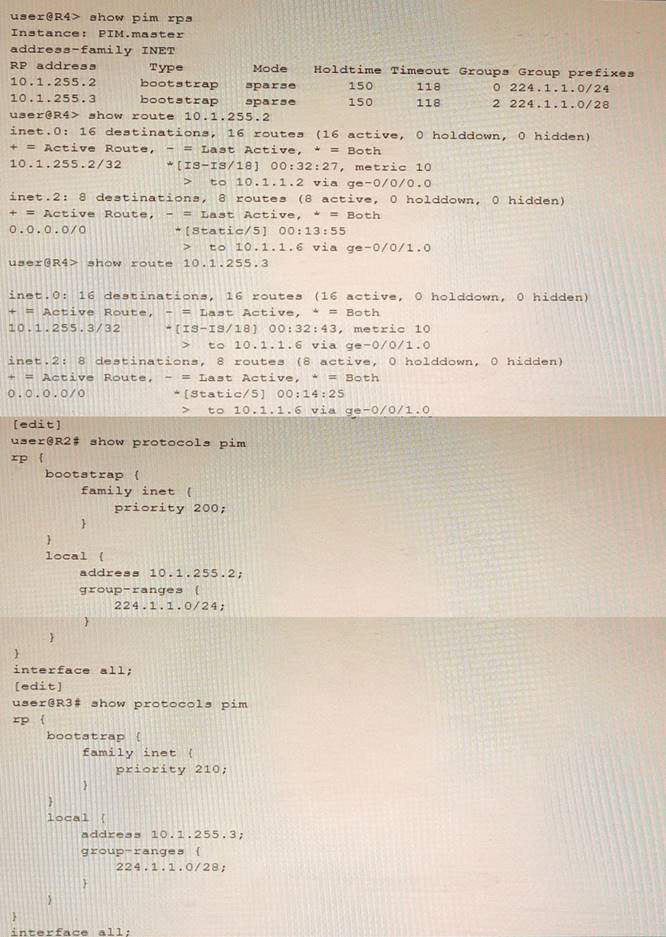

Exhibit

R4 is directly connected to both RPs (R2 and R3) R4 is currently sending all ,o,ns upstream to R3 but you want all joins to go to R2 instead Referring to the exhibit, which configuration change will solve this issue?

1. A. Change the bootstrap priority on R2 to be higher than R3
2. B. Change the default route in inet.2 on R4 from R3 as the next hop to R2
3. C. Change the local address on R2 to be higher than R3.
4. D. Change the group-range to be more specific on R2 than R3.

Correct Answer: A
PIM Bootstrap Router (BSR) is a mechanism that allows PIM routers to discover and announce rendezvous point (RP) information for multicast groups. BSR uses two roles: candidate BSR and candidate RP. Candidate BSR is the router that collects information from all available RPs in the network and advertises it throughout the network. Candidate RP is the router that wants to become the RP and registers itself with the BSR. There can be only one active BSR in the network, which is elected based on the highest priority or highest IP address if the priority is the same. The BSR priority can be configured manually or assigned automatically. The default priority is 0 and the highest priority is 2515. In this question, R4 is directly connected to both RPs (R2 and R3) and is currently sending all joins upstream to R3 but we want all joins to go to R2 instead. To achieve this, we need to change the BSR priority on R2 to be higher than R3 so that R2 becomes the active BSR and advertises its RP information to R4.
Reference: 1: https://study-ccnp.com/multicast-rendezvous-points-explained/

An interface is configured with a behavior aggregate classifier and a multifield classifier How will the packet be processed when received on this interface?

1. A. The packet will be discarded.
2. B. The packet will be processed by the BA classifier first, then the MF classifier.
3. C. The packet will be forwarded with no classification changes.
4. D. The packet will be processed by the MF classifier first, then the BA classifier.

Correct Answer: C
behavior aggregate (BA) classifiers and multifield (MF) classifiers are two types of classifiers that are used to assign packets to a forwarding class and a loss priority based on different criteria. The forwarding class determines the output queue for a packet. The loss priority is used by a scheduler to control packet discard during periods of congestion.
A BA classifier maps packets to a forwarding class and a loss priority based on a fixed- length field in the packet header, such as DSCP, IP precedence, MPLS EXP, or IEEE 802.1p CoS bits. A BA classifier is computationally efficient and suitable for core devices that handle high traffic volumes. A BA classifier is useful if the traffic comes from a trusted source and the CoS value in the packet header is trusted.
An MF classifier maps packets to a forwarding class and a loss priority based on multiple fields in the packet header, such as source address, destination address, protocol type, port number, or VLAN ID. An MF classifier is more flexible and granular than a BA classifier and can match packets based on complex filter rules. An MF classifier is suitable for edge devices that need to classify traffic from untrusted sources or rewrite packet headers.
You can configure both a BA classifier and an MF classifier on an interface. If you do this, the BA classification is performed first and then the MF classification. If the two classification results conflict, the MF classification result overrides the BA classification result.
Based on this information, we can infer the following statements:
✑ The packet will be discarded. This is not correct because the packet will not be discarded by the classifiers unless it matches a filter rule that specifies discard as an action. The classifiers only assign packets to a forwarding class and a loss priority based on their match criteria.
✑ The packet will be processed by the BA classifier first, then the MF classifier. This is correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.
✑ The packet will be forwarded with no classification changes. This is not correct because the packet will be classified by both the BA classifier and the MF classifier if they are configured on an interface. The final classification result will determine which output queue and which discard policy will be applied to the packet.
✑ The packet will be processed by the MF classifier first, then the BA classifier. This is not correct because if both a BA classifier and an MF classifier are configured on an interface, the BA classification is performed first and then the MF classification. If they conflict, the MF classification result overrides the BA classification result.

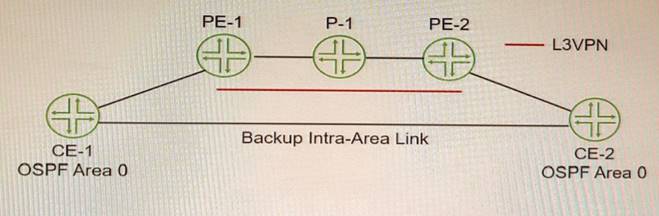

Exhibit

You must ensure that the VPN backbone is preferred over the back door intra-area link as long as the VPN is available. Referring to the exhibit, which action will accomplish this task?

1. A. Configure an import routing policy on the CE routers that rejects OSPF routes learned on the backup intra-area link.
2. B. Enable OSPF traffic-engineering.
3. C. Configure the OSPF metric on the backup intra-area link that is higher than the L3VPN link.
4. D. Create an OSPF sham link between the PE routers.

Correct Answer: D
A sham link is a logical link between two PE routers that belong to the same OSPF area but are connected through an L3VPN. A sham link makes the PE routers appear as if they are directly connected, and prevents OSPF from preferring an intra-area back door link over the VPN backbone. To create a sham link, you need to configure the local and remote addresses of the PE routers under the [edit protocols ospf area area-id] hierarchy level1.
