Exhibit

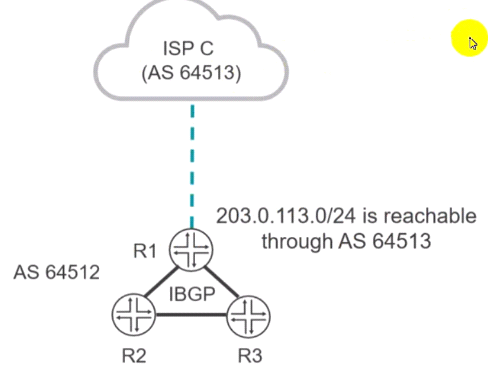

You confirm that the R2 and R3 routers are receiving a BGP route to the 203.0.113.0/24 network, but both routers display the route as hidden. Referring to the exhibit, which two actions solve this problem? (Choose two.)

1. A. Apply the routing policy on R1 as an export policy to the IBGP group.
2. B. Apply the touting policy on R1 as an Import policy to the IBGP group.
3. C. Configure a routing policy on R1 that sets the next hop for the 203.0.113.0/24 BGP route to the IP address that R1 uses for IBGP peering.
4. D. Configure a routing policy on R1 that sets the next hop for the 203.0.113.0/24 BGP route to the IP address that R1 uses for EBGP peering.

Correct Answer: CD

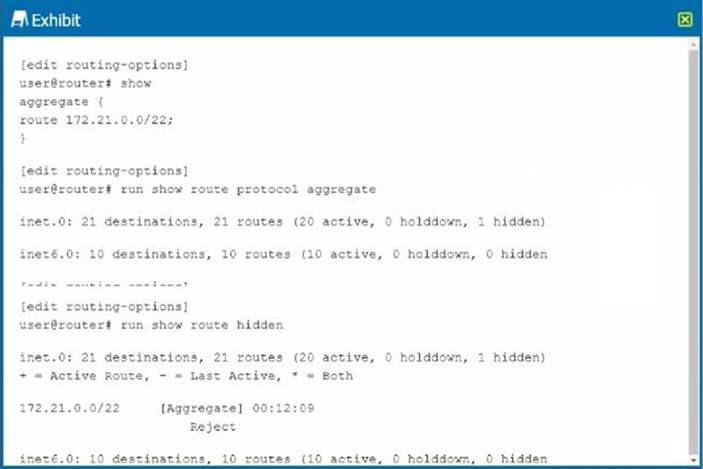

Exhibit.

Referring to the exhibit, you have configured an aggregate route that represents the 172.21.0.0/24, 172.21.1.0/24, and 172.21.2.0/24 networks. However, when you view the routing table, your new route hidden.
Which action would you perform to determine the problem?

1. A. Verify that you have active contributing routes on the device.
2. B. Verify that you have configured a policy on the device to accept aggregate routes.
3. C. Verify that you have defined a metric value for the aggregate route.
4. D. Verify that you have set the preference to a lower default value.

Correct Answer: D

Interface ge-0/0/0.0 connecls yout network to your ISP. You want to advertise this interface address as an Internal route In OSPF without creating a neighbor with your ISP.
In this scenario, how is this task accomplished?

1. A. Remove interface ge-0/0/0.0 from OSPF.
2. B. Create a generated route for Interface ge-0/0/0.0.
3. C. Add ge-0/0/0.0 as a passive interface In OSPF.
4. D. Configure a static route for Interface ge-0/0/0.0.

Correct Answer: D

You are bringing a new network online with three MX Series devices enabled for STP. No root bridge priority has been configured. Which statement is true in this scenario?

1. A. The device with the lowest MAC address will be elected as the root bridge.
2. B. The device with the highest MAC address will be elected as the root bridge.
3. C. The device with the lowest numerical lo0 IP address will be elected as the root bridge.
4. D. The device with the highest numerical lo0 IP address will be elected as The bridge.

Correct Answer: A

Which configuration selling prohibits a static route from being redistributed by a dynamic routing protocol?

1. A. route-filter
2. B. no-readvertise
3. C. qualified-next-hop
4. D. passive

Correct Answer: B
