Exhibit

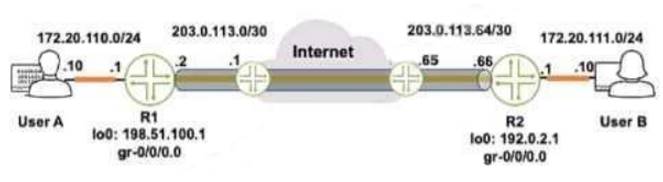

Referring to the exhibit, how do you verify the status of the tunnel from R1?

1. A. Issue the ping 172.20.111.10 source 172.20.110.1 command.
2. B. Issue the ping 172.20.111.10 source 198.51.100.1 command.
3. C. Issue the ping 172.20.iii.io source 203.0.113.2 command.
4. D. Issue the ping 172.20. Il
5. E. 10 command.

Correct Answer: C

Exhibit

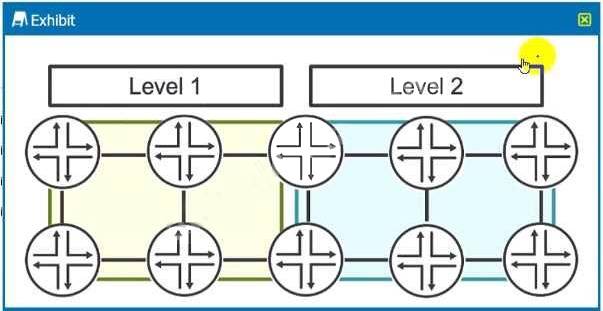

Referring to the exhibit, which two statements are correct? (Choose two.)

1. A. Prefixes in Level 1 will be redistributed to Level 2.
2. B. Prefixes In Level 2 will be not redistributed to Level 1.
3. C. Prefixes in Level 2 will be redistributed to Level 1.
4. D. Prefixes in Level 1 will not be redistributed to Level 2.

Correct Answer: C

Exhibit

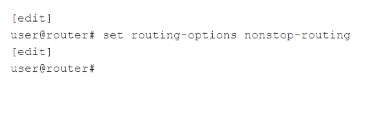

Referring to the exhibit, which two additional steps should you lake to fully configure NSR? (Choose two.)

1. A. You should configure the max period for NSR precision timers.
2. B. You must configure GRES.
3. C. You must configure graceful restart.
4. D. You should configure commit synchronization.

Correct Answer: AB

Exhibit

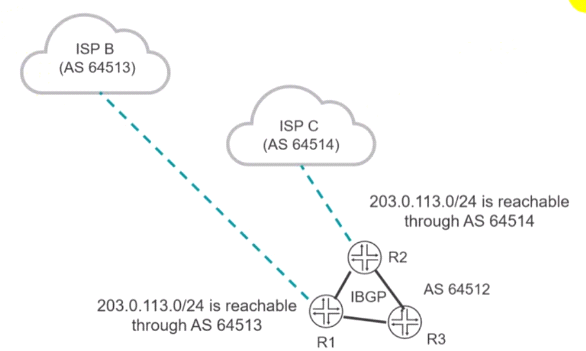

You want the R1 and R3 routers to forward traffic destined to the 203.0.113.0/24 network through R2. Which BGP attribute would you modify to satisfy this requirement?

1. A. community
2. B. origin
3. C. MED
4. D. local preference

Correct Answer: C

What are three well-known mandatory BGP attributes? (Choose three.)

1. A. next hop
2. B. origin
3. C. community
4. D. MED
5. E. AS path

Correct Answer: ABE
