- (Exam Topic 2)
How would you change the display so that 40 lines will be displayed in the terminal program when you are logged into a junos device?

1. A. Set the window size of your terminal program
2. B. Issue that set cli screen-length 40 command from operational mode
3. C. Set the display options in your terminal program
4. D. Issue that set cli screen-length 40 command from Configuration mode

Correct Answer: B

- (Exam Topic 2)
You have configure an SRX Series device for the first time. When you commit your configuration, the Junos OS notifies you that you cannot yet commit your configuration. Which configuration step must you complete?

1. A. security policies
2. B. hostname
3. C. date/time
4. D. root authentication

Correct Answer: D

- (Exam Topic 1)
Which three benefits are made possible by the separation of the control plane and forwarding plane of a Junos device? (Choose three.)

1. A. nonstop active routing
2. B. in-service software upgrades
3. C. deep packet inspection
4. D. stateful firewall
5. E. graceful Routing Engine switchover

Correct Answer: ABE

- (Exam Topic 2)

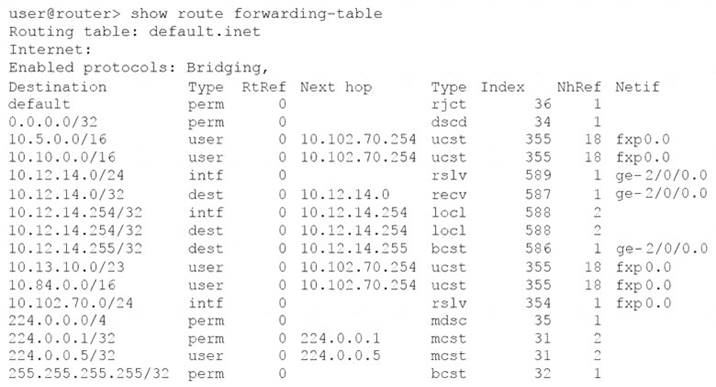

Click the Exhibit button.

Referring to the exhibit, what happens to a packet that has a destination address of 172.17.0.1?

1. A. The packet is forwarded to the next hop defined in the default route.
2. B. The packet is silently discarded.
3. C. The packet is rejected and an ICMP network unreachable message is sent to the source address.
4. D. The packet is forwarded to the next hop of the management network.

Correct Answer: C

- (Exam Topic 2)

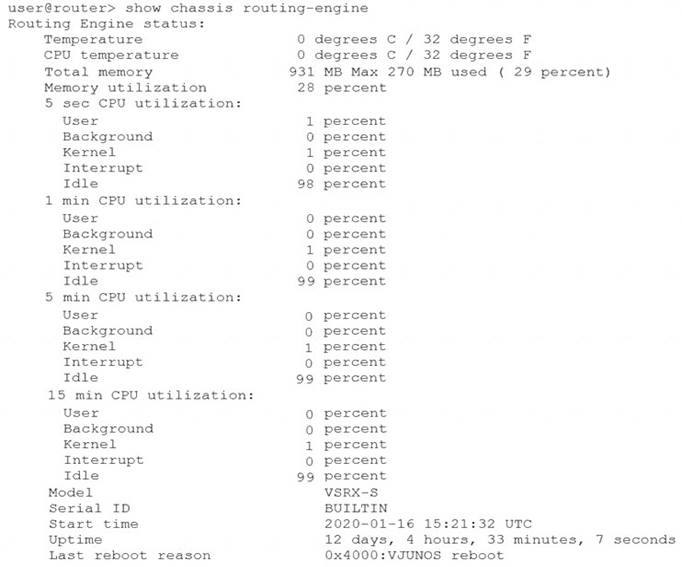

Click the Exhibit button.

Referring to the exhibit, which two statements are correct? (Choose two.)

1. A. The memory utilization is 28%
2. B. The memory utilization is 72%
3. C. The CPU kernel utilization is 1%
4. D. The 15 minute CPU load average is 99%

Correct Answer: AC
