- (Exam Topic 2)
Which two statements describe IPv4 default behavior for BGP? Choose Two

1. A. All Active BGP routes are exported to configured EBGP neighbors
2. B. All BGP routes are exported to configured EBGP neighbors
3. C. All BGP routes are imported into the inet.0 routing table
4. D. All BGP routes are imported into the inet4.0 routing table

Correct Answer: AC

- (Exam Topic 1)
Which component is responsible for performing protocol updates and system management?

1. A. forwarding tables
2. B. Routing Engine
3. C. bridging table
4. D. Packet Forwarding Engine

Correct Answer: B

- (Exam Topic 2)

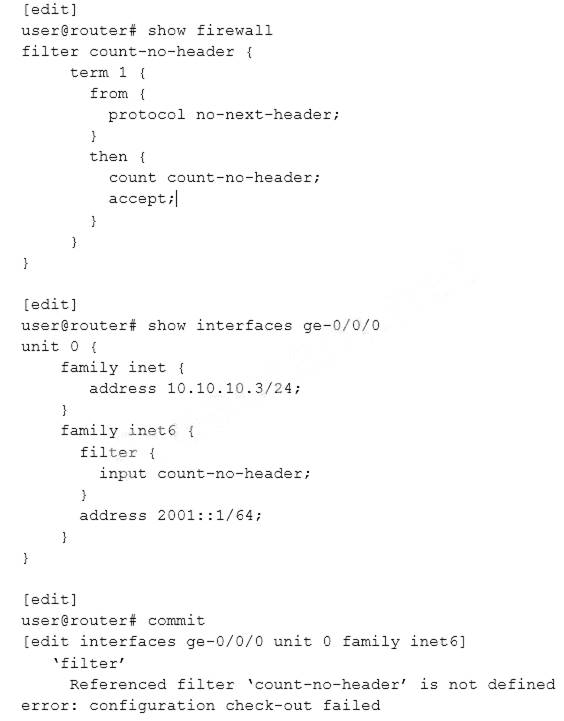

Refer to the exhibit.

You asked to create a firewall filter to count IPv6 packets that arrive with a no next header value. As shown in the exhibit, you have created and applied the count-no-header firewall filter to the ge-0/0/0 interface. The commit operation fails.
What is causing this problem?

1. A. IPv6 interfaces do not support firewall filters.
2. B. The filter name must be different than the counter name.
3. C. The firewall term does not include inet6 in the from statement.
4. D. The firewall family is not correct.

Correct Answer: D

- (Exam Topic 2)
What is a valid IPv6 address?

1. A. 00:05:85:23:45:67
2. B. 127.0.0.1
3. C. 2001:0db8:3000:2215:0000:0000:aaaa:llll
4. D. 49.0001.0192.0168.1001.00

Correct Answer: C

- (Exam Topic 2)
Which three statements are true about IPv6 linl local addresses? (Choose three.)

1. A. They begin with the prefix fe80::/64.
2. B. They can be assigned manually or dynamically.
3. C. They are not guaranteed to be unique outside of the network segment.
4. D. They are optional adddresses.
5. E. They provide reachability to the internet.

Correct Answer: ABC
