- (Exam Topic 2)
What is the name of the volume containing the software and files used for the day-to day operation of a device using Junos with upgraded FreeBSD?

1. A. /var
2. B. /active
3. C. /junos
4. D. /oam

Correct Answer: C

- (Exam Topic 1)
You just received a new factory-default Junos device.
Which two steps must be completed to connect and log in to the device? (Choose two.)

1. A. Connect to the device using an SSH connection.
2. B. Log in with the user root and no password.
3. C. Connect to the device using the console connection.
4. D. Log in with the user root and password of root123.

Correct Answer: BC

- (Exam Topic 2)

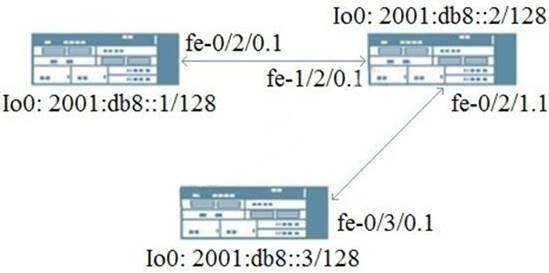

Referring to the exhibit,

which dynamic routing protocol would be used for this topology?

1. A. IGMPv3
2. B. OSPFv2
3. C. RIPng
4. D. RIP

Correct Answer: C

- (Exam Topic 2)
Which command verifies configuration syntax without applying the changes?

1. A. commit and –quit
2. B. commit check
3. C. commit comment
4. D. commit confirmed

Correct Answer: B

- (Exam Topic 2)
Which two statements describe the connection between control plane and the forwarding plane?
Choose Two

1. A. No rate limiter is configured by default
2. B. A rate limiter is configured by default
3. C. Exception traffic is preferred over the control traffic during congestion
4. D. Control traffic is preferred over the exception traffic during congestion

Correct Answer: AD
