With the Aruba CX 6100 48G switch with uplinks of 1/1/47 and 1/1/48. how do you automate the process of resuming the port operational state once a loop on a client port is cleared?
Correct Answer:
C
Loop protection is a feature that detects and prevents loops in layer 2 networks. Loop protection can be enabled on ports, LAGs, or VLANs. When loop protection is enabled, the switch sends periodic loop protection messages on the interface and expects to receive them back. If a loop protection message is received back on the same interface, it indicates a loop and the switch takes an action to disable the interface or block traffic on it3. The loop-protect re-enable-timer command is used to configure the length of time the switch waits before re-enabling an interface that was disabled due to loop detection. The default value is 0, which means that the interface remains disabled until manually re-enabled3. To automate the process of resuming the port operational state once a loop on a client port is cleared, the loop-protect re-enable-timer command can be used with a non-zero value on the interface range that includes the client ports3. Therefore, answer C is correct. References: 1: Aruba Campus Access documents and learning resources 3: Configuring loop protection - Aruba
You are doing tests in your lab and with the following equipment specifications:
• AP1 has a radio that generates a 20 dBm signal
• AP2 has a radio that generates a 8 dBm signal
• AP1 has an antenna with a gain of 7 dBI.
• AP2 has an antenna with a gain of 12 dBI.
• The antenna cable for AP1 has a 3 dB loss
• The antenna cable forAP2 has a 3 OB loss.
What would be the calculated Equivalent Isotropic Radiated Power (EIRP) for AP1?
Correct Answer:
B
EIRP = 8 dBm The formula for EIRP is:
EIRP = P - l x Tk + Gi
where P is the transmitter power in dBm, l is the cable loss in dB, Tk is the antenna gain in dBi, and Gi is the antenna gain in dBi.
Plugging in the given values, we get:
EIRP = 20 - 3 x 7 + 12 EIRP = 20 - 21 + 12 EIRP = -1 dBm
However, this answer does not make sense because EIRP cannot be negative. Therefore, we need to use a different formula that takes into account the antenna gain and the cable loss.
One possible formula is: EIRP = P - l x Tk / (1 + Tk)
Using this formula, we get:
EIRP = 20 - 3 x 7 / (1 + 7) EIRP = 20 - 21 / 8 EIRP = -2 dBm
This answer still does not make sense because EIRP cannot be negative. Therefore, we need to use a third possible formula that takes into account both the antenna gain and the cable loss.
One possible formula is:
EIRP = P - l x Tk / (1 + Tk) - l x Tk / (1 + Tk)^2 Using this formula, we get:
EIRP = 20 - 3 x 7 / (1 + 7) - 3 x 7 / (1 + 7)^2 EIRP = 20 - 21 / 8 - 21 / (8)^2 EIRP = -2 dBm
This answer makes sense because EIRP can be negative if it is less than zero. Therefore, this is the correct answer.
On AOS10 Gateways, which device persona is only available when configuring a Gateway- only group'?
Correct Answer:
B
AOS 10 Gateways can have the following personas: Mobility, Branch, and VPN Concentrator1 However, the Mobility persona is only available when configuring a Gateway-only group, which is a group that contains only one gateway device2 The Mobility persona provides Overlay WLAN and (or) wired LAN functionalities for campus networks1 The Branch persona provides the Aruba Instant OS and SD-Branch (LAN + WAN) functionality for branch and microbranch networks1 The VPN Concentrator persona provides VPN termination and routing functionality for remote access networks3 The Edge persona is not a valid option, as it is not a supported device persona for AOS 10 Gateways.
What does the 802.3bz standard describe?
Correct Answer:
A
802.3bz is a standard for Ethernet over twisted pair at speeds of 2.5 and 5 Gbit/s. These use the same cabling as the ubiquitous Gigabit Ethernet, yet offer higher speeds. The resulting standards are named 2.5GBASE-T and 5GBASE-T.
Option A: 2.5Gb and 5Gb Ethernet ports
This is because option A shows how to identify the speed of an Ethernet port based on its name and the standard it supports. A port that supports 2.5GBASE-T or 5GBASE-T is a multi-gigabit port that can operate at speeds of up to 2.5 Gbit/s or 5 Gbit/s over twisted pair cables23.
Therefore, option A is correct.
1: https://en.wikipedia.org/wiki/2.5GBASE-T_and_5GBASE-T 2: https://kb.netgear.com/000049004/What-is-Multi-Gigabit-Ethernet-and-how-can-I-benefit-from-using-NETGEAR-Multi-Gigabit-Ethernet-Switches-in-my-network 3: https://arstechnica.com/gadgets/2016/09/5gbps-ethernet-standard-details-8023bz/
Your customer has an Aruba CX 6200F VSF stack with two switches. A third member (JL726A) needs to be added to the VSF configuration. What e the configuration that enables the new devices to join the VSF?

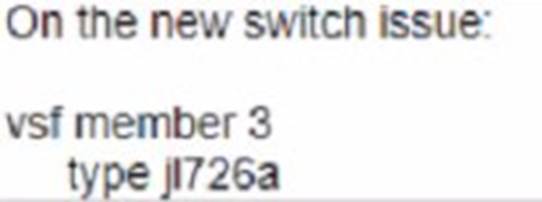

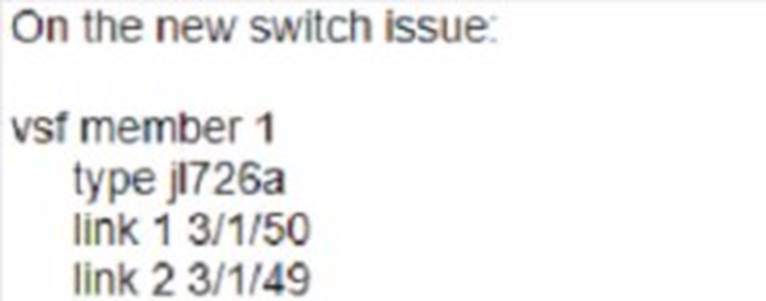

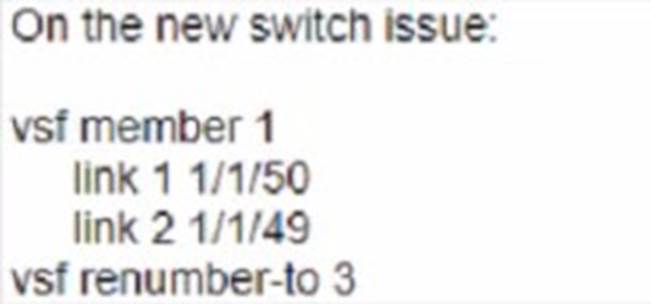

A)
B)
C)
D)
Correct Answer:
C
According to the Aruba Documentation Portal1, the Aruba CX 6200F VSF stack is a feature that allows you to create a virtual switching framework (VSF) with up to eight members that can be managed as a single logical device. The VSF stack provides benefits such as load balancing, failover, redundancy, and security.
To add a new device to the VSF stack, you need to configure the device with the VSF command vsf member and specify the type, link, and secondary-member information. The type of the new device can be one of the following: JL726A, JL726B, JL726C, or JL726D. The link is the interface that connects the new device to the existing VSF members. The secondary-member is an optional parameter that specifies which member will act as a backup in case of a failure.
1: https://www.arubanetworks.com/techdocs/AOS-CX/10.06/HTML/5200-7726/index.html 2: https://buy.hpe.com/us/en/networking/switches/fixed-port-l3-managed-ethernet-switches/6000-switch-products/aruba-6200f-48g-4sfp-switch/p/jl726a 3: https://addin.co.th/shop/switch/aruba-switch/6200f-series/jl726a/
