A network administrator is managing a network that deploys a multicast service. The administrator has multiple streams successfully being routed by PIM-DM in the network. The administrator then adds a new
stream with a destination address of 239.0.0.1. However, clients who have not joined the stream are receiving it.
What should the administrator do to fix this problem?

1. A. Verify that IGMP is enabled between the switches connecting the multicast source and receivers
2. B. Change the destination multicast address to 239.1.1.1
3. C. Define the 239.0.0.1 stream on the rendezvous point (RP)
4. D. Define the 239.0.0.1 stream on the PIM candidate bootstrap router

Correct Answer: B

Which protocols are used by NetEdit to interact with third-party devices? (Choose two.)

1. A. telnet
2. B. SNMP
3. C. SSH
4. D. Restful API
5. E. CDP

Correct Answer: BC

What is correct regarding the operation of VSX and multicasting with PIM-SM routing configured?

1. A. Each VSX peers runs PIM and builds its own group databas
2. B. One of the VSX peers is elected as the designated router (DR) to forward multicast streams to a receiver VLAN
3. C. Each VSX peers runs PIM and creates a shared group databas
4. D. Both VSX peers can forward multicast streams to receivers in a VLAN, achieving load sharing
5. E. Each VSX peers runs PIM and builds its own group databas
6. F. Both VSX peers can forward multicast streams to receivers in a VLAN, achieving load sharing
7. G. Each VSX peers runs PIM and creates a shared group databas
8. H. One of the VSX peers is elected as the designated router (DR) to forward multicast streams to a receiver VLAN

Correct Answer: A

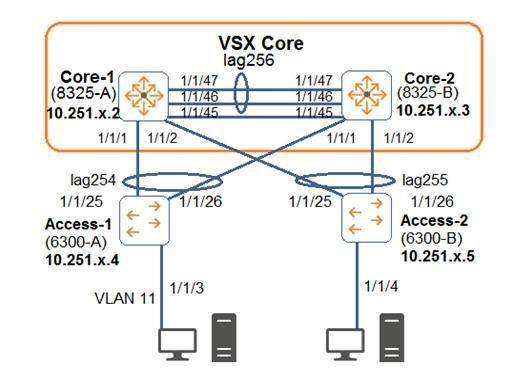

Examine the attached diagram.

The two PCs are located in VLAN 11 (10.1.11.0/24). Which example defines how to implement active gateway on the VSX core for VLAN 11?

1. A. interface vlan 11active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
2. B. interface lag 254active-gateway vlan 11 ip 10.1.11.1active-gateway vlan 11 mac 02:02:00:00:01:00
3. C. interface lag 254active-gateway ip 10.1.11.1active-gateway mac 02:02:00:00:01:00
4. D. vsxvrrp group 1

Correct Answer: A

A network administrator is implementing OSPF, where there are two exit points. Each exit point has a stateful, application inspection firewall to implement company policies.
What would the best practice be to ensure that one firewall will see both directions of the traffic, preventing asynchronous connections in the network?

1. A. Both ASBRs should define External Type 1 routes for the
2. B. Both ASBRs should define External Type 1 routes for the
3. C. Both ASBRs should define External Type 2 routes for the
4. D. Both ASBRs should define External Type 2 routes for the

Correct Answer: A
