A company is implementing AOS-CX switches at the access layer. The company wants to implement access control for employees and guests.
Which security features will require a ClearPass server to be installed and used by the company?

1. A. Downloadable user roles
2. B. Dynamic segmentation
3. C. User-based tunneling (UBT)
4. D. Change of authorization (CoA)

Correct Answer: B

How does PIM build the IP multicast routing table to route traffic between a multicast source and one or more receivers?

1. A. It uses the unicast routing table and reverse path forwarding (RPF)
2. B. It uses IGMP and calculates a shortest path tree (SPT)
3. C. It uses the shortest path first (SPF) algorithm derived from link state protocols
4. D. It uses the Bellman-Ford algorithm derived from distance vector protocols

Correct Answer: A

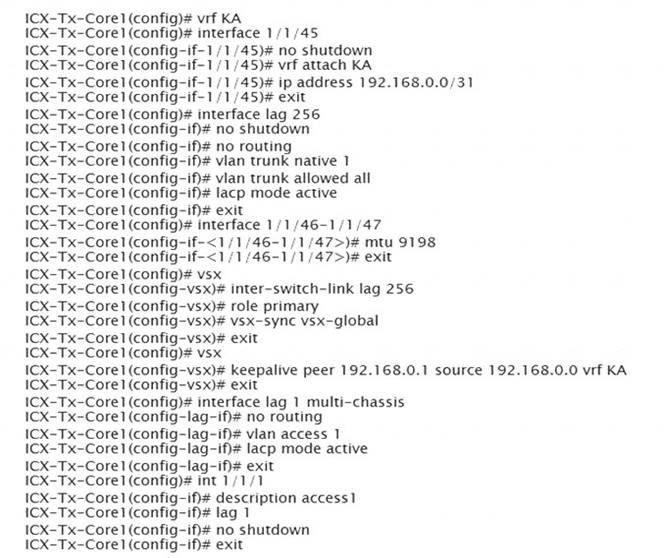

Examine the VSX-related configuration of the core layer AOS-CX switch:

A network administrator is troubleshooting a connectivity issue involving the VSX LAG (link aggregation) between the core and access layer switch, during HW replacement of one of the core switches.
Which configuration should the administrator add to the core switch to fix this issue?

1. A. ICX-Tx-Core1(config)# vsxICX-Tx-Core1(config-vsx)# system-mac 02:01:00:00:01:00
2. B. ICX-Tx-Core1(config)# interface lag 1 multi-chassisICX-Tx-Core1(config-if-lag-if)# mtu 9198
3. C. ICX-Tx-Core1(config)# interface 1/1/46-1/1/47ICX-Tx-Core1(config-if-vlan)# active-gateway ip 10.1.11.1 mac 02:02:00:00:01:00
4. D. ICX-Tx-Core1(config)# interface 1/1/45ICX-Tx-Core1(config-if-vlan)# active-gateway ip 192.168.0.0 mac 02:02:00:00:01:00

Correct Answer: D

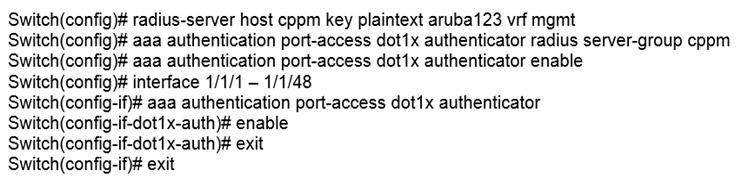

Examine the configuration performed on newly deployed AOS-CX switches:

After performing this configuration, the administrator notices that the switch ports always remain in the EAP start state. What should the administrator do to fix this problem?

1. A. Define the server group cppm
2. B. Set the ports to client-mode
3. C. Create and assign a local user role to the ports
4. D. Enable change of authorization (CoA)

Correct Answer: D

An administrator is configuring BGP and has two connections to a service provider to two different local routers.
Which BGP metric should the administrator configure to influence which local router the service provider will use to reach certain routes?

1. A. Weight
2. B. Multiple exit discriminator
3. C. Local preference
4. D. Origin

Correct Answer: C
