Examine the following ACL rule policies:
Permit traffic from 10.2.2.1 through 10.2.2.30 to anywhere
Permit traffic from 10.2.2.40 through 10.2.2.55 to anywhere
Deny all others
Based on this policy, place the following ACL rule statements in the correct order to accomplish the above filtering policy.

1. A. deny ip 10.2.2.31 255.255.255.255 anypermit ip 10.2.2.40 255.255.255.248 anypermit ip 10.2.2.48 255.255.255.248 anydeny ip 10.2.2.32 255.255.255.224 anypermit ip 10.2.2.0 255.255.255.192 any
2. B. permit ip 10.2.2.40 255.255.255.248 anypermit ip 10.2.2.48 255.255.255.248 anypermit ip 10.2.2.0 255.255.255.192 anydeny ip 10.2.2.31 255.255.255.255 anydeny ip 10.2.2.32 255.255.255.224 any
3. C. deny ip 10.2.2.31 255.255.255.255 anydeny ip 10.2.2.32 255.255.255.224 anypermit ip 10.2.2.40 255.255.255.248 anypermit ip 10.2.2.48 255.255.255.248 anypermit ip 10.2.2.0 255.255.255.192 any
4. D. deny ip 10.2.2.31 255.255.255.255 anypermit ip 10.2.2.40 255.255.255.248 anydeny ip 10.2.2.32 255.255.255.224 anypermit ip 10.2.2.48 255.255.255.248 anypermit ip 10.2.2.0 255.255.255.192 any

Correct Answer: A

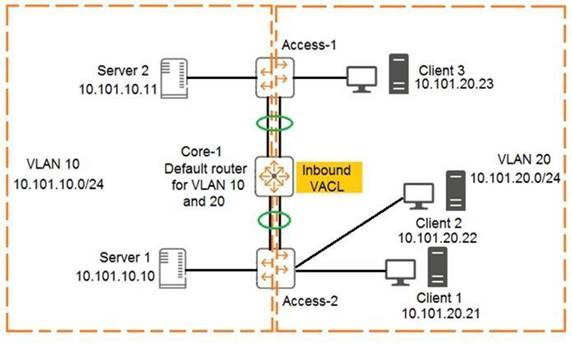

Examine the network exhibit:

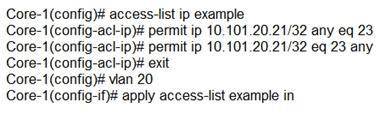

The ACL configuration defined on Core-1 is as follows:

If telnet was being used, which device connection would be permitted and functional in both directions? (Choose two.)

1. A. Client 3 to Client 2
2. B. Client 1 to Client 2
3. C. Server 2 to Client 2
4. D. Server 1 to Client 1
5. E. Client 1 to Client 3

Correct Answer: BD

An administrator is implementing a multicast solution in a multi-VLAN network. Which statement is true about the configuration of the switches in the network?

1. A. IGMP snooping must be enabled on all interfaces on a switch to intelligently forward traffic
2. B. IGMP requires join and leave messages to graft and prune multicast streams between switches
3. C. IGMP must be enabled on all routed interfaces where multicast traffic will traverse
4. D. IGMP must be enabled on all interfaces where multicast sources and receivers are connected

Correct Answer: B

An administrator is looking for a data center switching solution that will greatly reduce the likelihood of dropped frames when uplink congestion is experienced. Which AOS-CX switch queuing feature meets the administrator’s needs?

1. A. FIFO
2. B. VOQ
3. C. WFQ
4. D. DWWR

Correct Answer: B

A company requires access by all users, guests, and employees to be authenticated. Employees will be authenticated using 802.1X, whereas guests will be authenticated using captive portal. Which type of authentication must be configured on an AOS-CX switch ports where both guests and employees connect?

1. A. Both 802.1X and captive portal
2. B. 802.1X only
3. C. Both 802.1X and MAC-Auth
4. D. 802.1X, captive portal, and MAC-Auth

Correct Answer: C
