Refer to the exhibit.

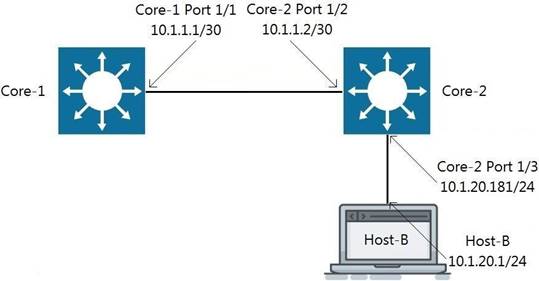

Traffic is failing between Core-1 and Host-B. IP addressing has correctly been applied, and all interfaces are attached to the vrf GREEN. Which configuration will correct the issue?

1. A. Core-2(config)# ip route 0.0.0.0/0 10.1.1.1 vrf GREEN Host-B: assign the default-gateway address 10.1.20.181
2. B. Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREENHost-B: assign the default-gateway address 10.1.20.181
3. C. Core-1(config)# ip route 10.1.20.0/24 10.1.1.2 vrf GREENHost-B: assign the default-gateway address 10.1.20.1
4. D. Host-B: assign the default-gateway address 10.1.20.181

Correct Answer: B

Refer to the exhibit.

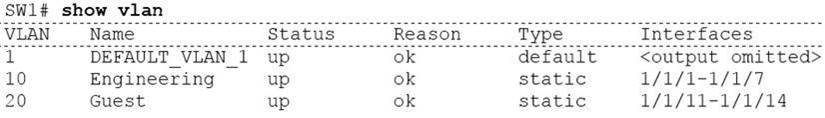

The above command was applied to an Aruba AOS-CX 6300M 24-port switch with 4-port SFP56 uplinks. All ports are set as access switchports. Which ports carry VLAN 1 traffic?

1. A. 1/1/8, 1/1/10, 1/1/5-1/1/24
2. B. 1/1/1-1/1/28
3. C. 1/1/1-1/1/24
4. D. 1/1/8-1/1/10, 1/1/5-1/1/28

Correct Answer: D

Refer to the exhibit.

LLDP

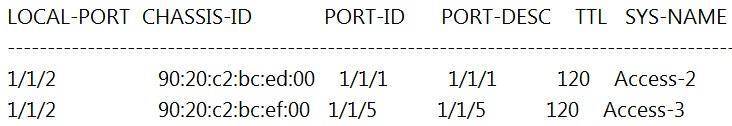

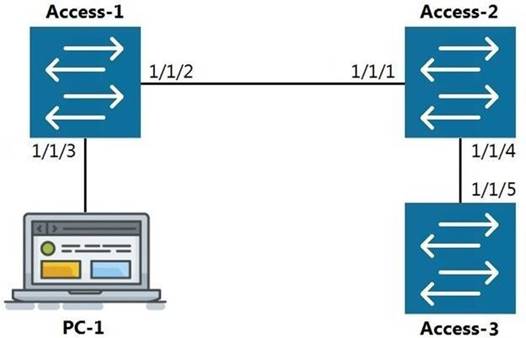

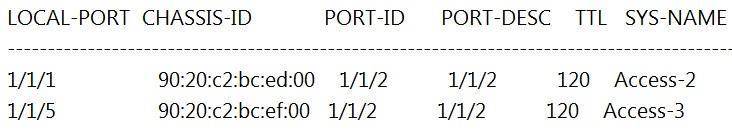

The command show LLDP neighbor-info gets typed into Access-1. All switches are Aruba OS-CX switches.
What is the output of this command?

1. A.
2. B.
3. C.
4. D.

Correct Answer: D

DRAG DROP

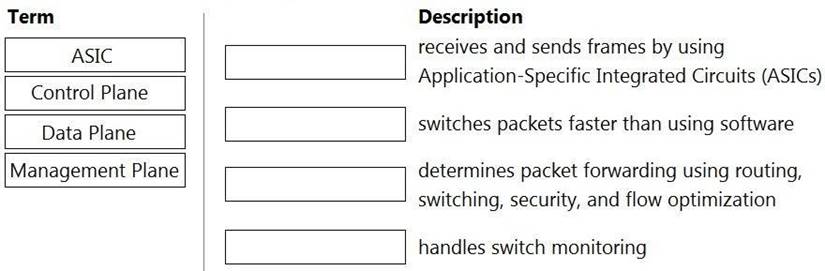

Match each description to the correct term.

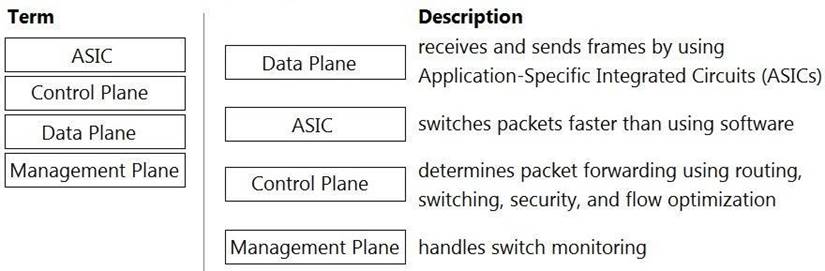

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

Which two options are the Layer 3 Routing protocols? (Choose two.)

1. A. BGP
2. B. LLDP
3. C. OSPF
4. D. MPLS
5. E. 802.3ad

Correct Answer: AC
