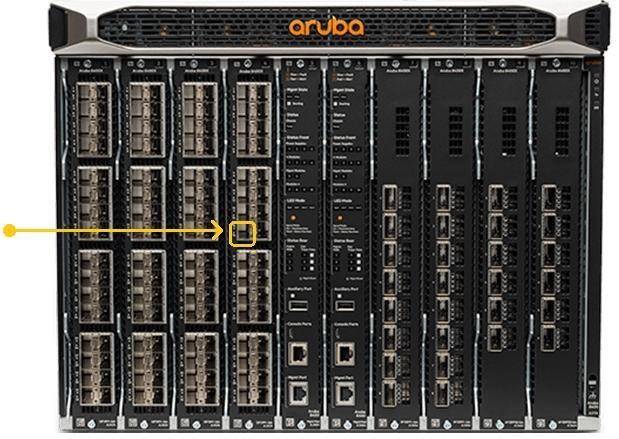

Refer to the exhibit.

The Aruba 8400 in the exhibit is member 2 of a VSX stack.
Which command will enter the interface sub configuration mode for the port, indicated by the orange square?

1. A. 8400(config)# interface 2/4/15
2. B. 8400(config)# interface 1/7/16
3. C. 8400(config)# interface 1/4/15
4. D. 8400(config)# interface 2/3/17

Correct Answer: A

Which two statements are true regarding Checkpoints on Aruba switches? (Choose two.)

1. A. Rolling back to a prior checkpoint triggers a reboot of the switch.
2. B. Stacking switches using VSF or VSX will disable the Checkpoint feature.
3. C. A checkpoint is a snapshot of the running-configuration and relevant metadata at the time the checkpoint was created.
4. D. System-generated checkpoints are created after a configuration change and 5 minutes of inactivity.
5. E. Checkpoints are available on AOS 5400R switches, as well as on all AOS-CX switches.

Correct Answer: CE

What is the correct description of a Multi- Layer Switch?

1. A. a switch with Layer 3 routing capabilities but lacks any Layer 1 features as a consequence
2. B. any switch that supports PoE, LLDP-MED and Flow Control
3. C. has all the functionality of a Layer 2 switch and most of the functionality of a Layer 3 router
4. D. multi-Layer refers specifically to using chassis switches with several line cards over stack port switches

Correct Answer: C

ServiceOS login: admin
SVOS> password
Enter password: ********
Confirm password: ********
The login password to access an Aruba AOS-CX was lost. After connecting to the switch console port, a reboot is performed and the Service OS console is accessed as shown above. What is the default password that is required for the admin account while under the Service OS console?

1. A. No password is set for this account.
2. B. "password"
3. C. "forgetme!"
4. D. The same login password that has lost originally.

Correct Answer: C

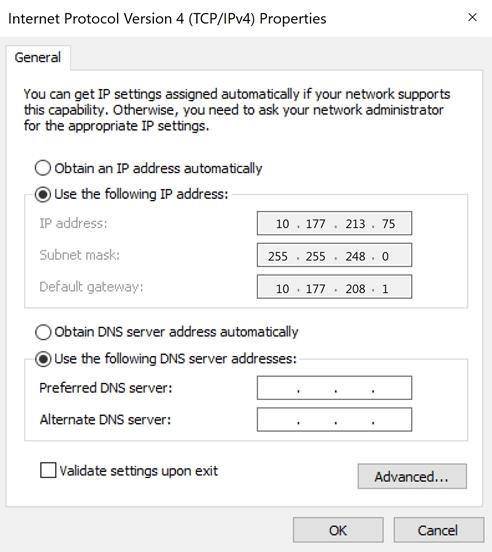

Refer to the exhibit.

Using the static IP address configured above, what is the converted binary value of the third octet assigned to the local interface?

1. A. 11010101
2. B. 10110001
3. C. 01001011
4. D. 11111000

Correct Answer: A
