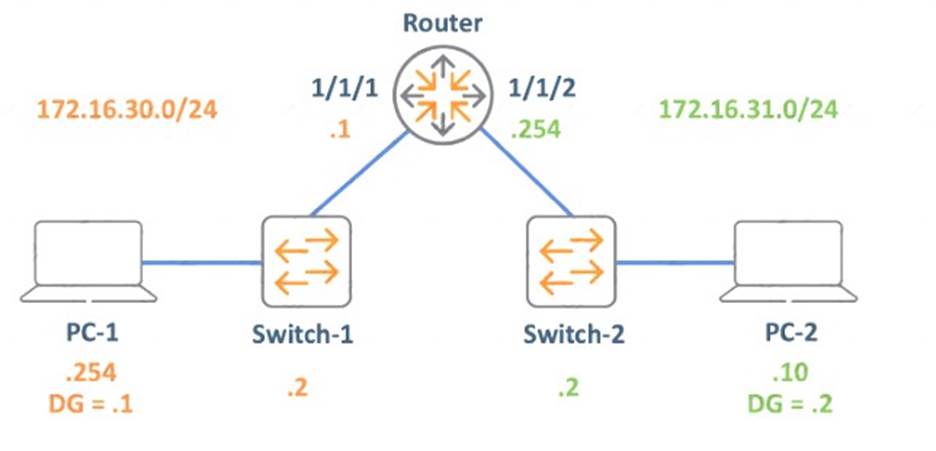

Refer to Exhibit.

The PCs are not able to successfully establish bidirectional communication. What change must you deploy to enable the communication between PC-1 and PC-2?

1. A. change PC-1 's default gateway to 172.16.30.2
2. B. change PC-1's IP address to 172.16.30.10
3. C. change the Router's 1/1/1 interface IP to 172.16.30.254
4. D. change PC-2's default gateway to 172.16.31.254

Correct Answer: C

What is the goal of the TCP three-way handshake?

1. A. To notify the destination who the originator is.
2. B. To acknowledge the reception of the segments.
3. C. To establish a reliable, flow-controlled connection.
4. D. To notify the number of segments that will be sent.

Correct Answer: C

Which commands can you use to save the switch configuration changes, so they survive a switch reboot? (Select two.)

1. A. copy running-config checkpoint backup
2. B. store memory
3. C. write memory
4. D. copy running-config checkpoint startup-config
5. E. save memory

Correct Answer: BD

Which protocols operate on the Management Plane? (Select two.)

1. A. Transmission Control Protocol
2. B. Address Resolution Protocol
3. C. Spanning Tree Protocol
4. D. Hypertext Transfer Protocol Secure
5. E. Secure Shell

Correct Answer: CE

WhichOSImodel layer is in charge of creating data?

1. A. Physical
2. B. Transport
3. C. Layer 4
4. D. Layer 7

Correct Answer: B
