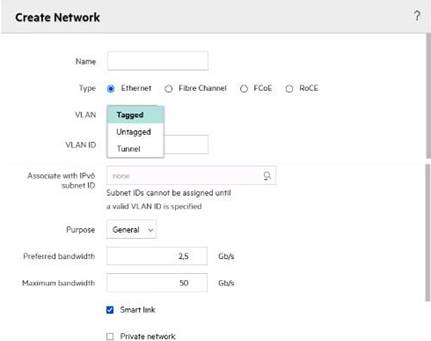

You need to make sure that server ports connected to this network cannot communicate with each other within the logical interconnect. Click the option within the network definition that will allow you to configure the required parameter.

Solution:

Tagged

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

You want to update the firmware for only two HPE Synergy Virtual Connect SE 32Gb FC Modules of a large environment. From which level must this procedure be initiated?

1. A. Logical Enclosure
2. B. Logical Interconnect Group
3. C. Logical Interconnect
4. D. Server Profile

Correct Answer: A

You configured downlink aggregation for one of the HPE Synergy Compute Modules in an environment by placing two connections in the same Link Aggregation Group. After you made the changes to the server profile, its status changed to critical.
What can be done to fix this issue?

1. A. The teaming or bonding driver in the server OS must be configured to enable the LACP and to form the LAG correctly.
2. B. The server profile for a given HPE Synergy compute module should be reapplied, then the Compute Module should be rebooted.
3. C. Link Aggregation Group functionality should be enabled in advanced properties of the Logical Interconnect.
4. D. Ensure that the Link Aggregation Group time-out value matches the server set values.

Correct Answer: C

You want to add the latest IL0 firmware to an HPE OneView firmware repository. How can you complete this task?

1. A. A PowerShell script must be used to upload IL0 firmware to the Internal or external firmware repository.
2. B. A custom SPP iso Image must be created with the new IL0 firmware version and uploaded to therepository.
3. C. An external repository must be created, because standalone components are supported only In an external repository.
4. D. ILO firmware can be marked as a hotnx and uploaded directly to the Internal or external firmware repository.

Correct Answer: B

what is required to add a remote frame to the primary management ring?

1. A. UUD of the remote HPE Composer
2. B. Serial number of one of the remote frames
3. C. Remote frame Link Module IPv6 address
4. D. Request code from the primary HPE Composer

Correct Answer: D
