- (Topic 3)
You have a hybrid environment that uses ExpressRoute to connect an on-premises network and Azure.
You need to log the uptime and the latency of the connection periodically by using an Azure virtual machine and an on-premises virtual machine.
What should you use?

1. A. Azure Monitor
2. B. IP flow verify
3. C. Connection Monitor
4. D. Azure Internet Analyzer

Correct Answer: C
Reference:
https://docs.microsoft.com/en-us/azure/network-watcher/connection-monitor

HOTSPOT - (Topic 3)

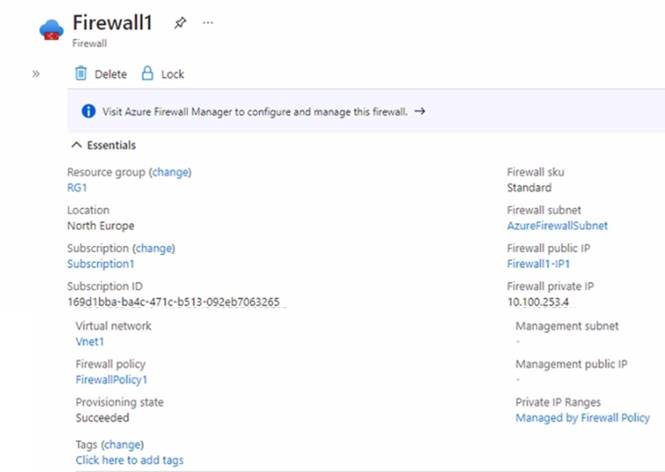

You have the Azure firewall shown in the following exhibit.

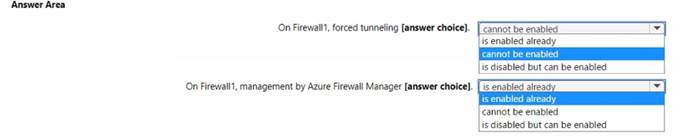

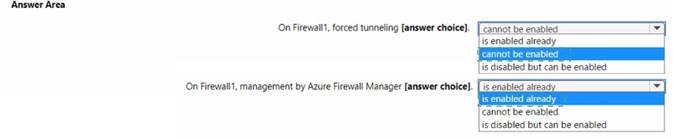

Use the drop-down menus to select the answer choice that completes each statement based on the information presented in the graphic.
NOTE: Each correct selection is worth one point.

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 3)

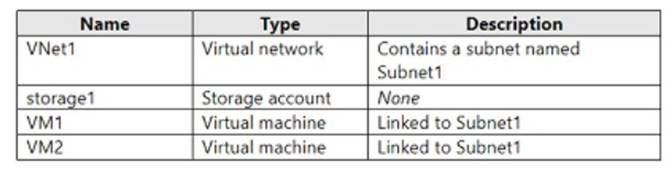

You have an Azure subscription that contains the resources shown in the following table.

You need to ensure that VM1 and VM2 can connect only to storage1. The solution must meet the following requirements:
• Prevent VM1 and VM2 from accessing any other storage accounts.
• Ensure that storage1 is accessible from the internet. What should you use?

1. A. a network security group (NSG)
2. B. a private endpoint
3. C. a private link
4. D. a service endpoint policy

Correct Answer: D

- (Topic 3)
You are planning the IP addressing for the subnets in Azure virtual networks. Which type of resource requires IP addresses in the subnets?

1. A. Azure Virtual Network NAT
2. B. virtual network peering
3. C. service endpoints
4. D. private endpoints

Correct Answer: A

HOTSPOT - (Topic 1)

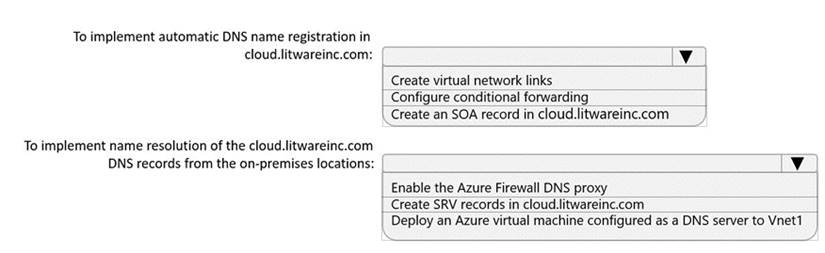

You need to implement name resolution for the cloud.liwareinc.com. The solution must
meet the networking requirements.
What should you do? To answer, select the appropriate options in the answer area. NOTE: Each correct selection is worth one point.

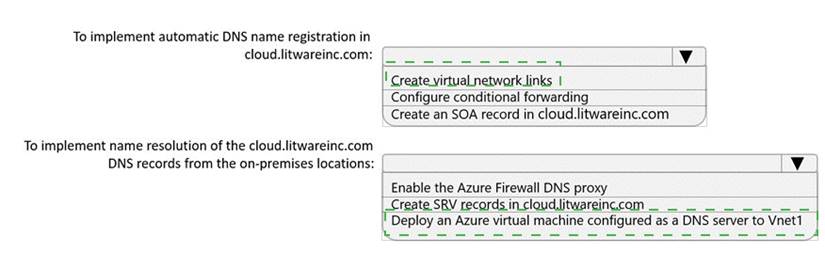

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
