HOTSPOT - (Topic 2)
You are implementing the virtual network requirements for VM Analyze.
What should you include in a custom route that is linked to Subnet2? To answer, select the
appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Solution:
Does this meet the goal?
Correct Answer:
A
HOTSPOT
You have on-premises datacenters in New York and Seattle.
You have an Azure subscription that contains the ExpressRoute circuits shown in the following table.
Name
Azure region Datacenter ERC1
East US New Vork ERC2
West US2 Seattle

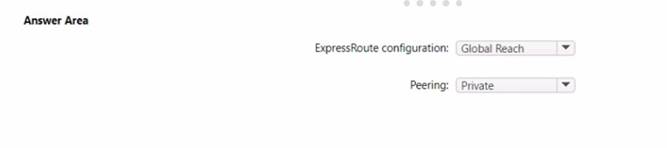

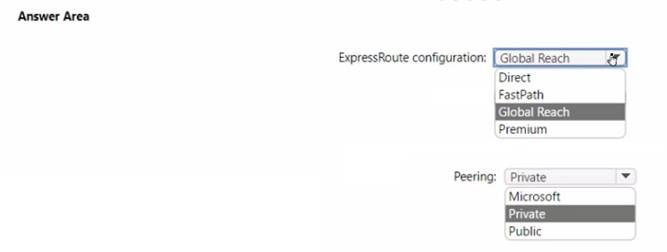

You need to ensure that all the data sent between the datacenters is routed via the ExoressRoute circuits. The solution must minimize costs.
Solution:
Does this meet the goal?
Correct Answer:
A
HOTSPOT - (Topic 3)

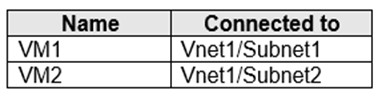

You have an Azure subscription that contains the virtual machines shown in the following table.
Subnet1 and Subnet2 are associated to a network security group (NSG) named NSG1 that has the following outbound rule:
✑ Priority: 100
✑ Port: Any
✑ Protocol: Any
✑ Source: Any
✑ Destination: Storage
✑ Action: Deny
You create a private endpoint that has the following settings:
✑ Name: Private1
✑ Resource type: Microsoft.Storage/storageAccounts
✑ Resource: storage1
✑ Target sub-resource: blob
✑ Virtual network: Vnet1
✑ Subnet: Subnet1

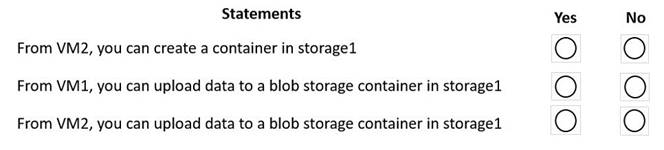

For each of the following statements, select Yes of the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Solution:
Yes, Yes, Yes
NSG rules applied to the subnet hosting the private endpoint are not applied to the private endpoint.So the NSG1 doesn't limit storage access from either VM1 or VM2. https://docs.microsoft.com/en-us/azure/storage/common/storage-private- endpoints#network-security-group-rules-for-subnets-with-private-endpoints
Does this meet the goal?
Correct Answer:
A
HOTSPOT - (Topic 2)

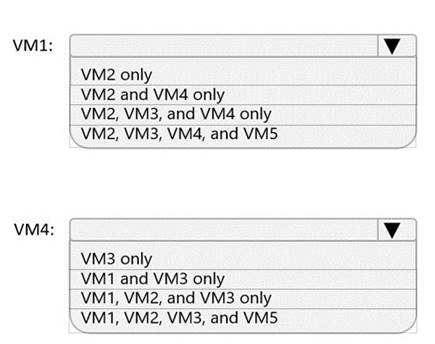

Which virtual machines can VM1 and VM4 ping successfully? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.
Solution:
Box 1: VM2, VM3 and VM4.
VM1 is in VNet1/Subnet1. VNet1 is peered with VNet2 and VNet3.
There are no NSGs blocking outbound ICMP from VNet1. There are no NSGs blocking inbound ICMP to VNet1/Subnet2, VNet2 or VNet3. Therefore, VM1 can ping VM2 in VNet1/Subnet2, VM3 in VNet2 and VM4 in VNet3.
Box 2:
VM4 is in VNet3. VNet3 is peered with VNet1 and VNet2. There are no NSGs blocking outbound ICMP from VNet3. There are no NSGs blocking inbound ICMP to VNet1/Subnet1, VNet1/Subnet2 or VNet2 from VNet3 (NSG10 blocks inbound ICMP from VNet4 but not from VNet3). Therefore, VM4 can ping VM1 in VNet1/Subnet1, VM2 in VNet1/Subnet2 and VM3 in VNet2.
Does this meet the goal?
Correct Answer:
A
- (Topic 3)
You have an Azure application gateway named AppGW1 that balances requests to a web app named App1.
You need to modify the server variables in the response header of App1. What should you configure on AppGW1?
Correct Answer:
B
Reference:
https://docs.microsoft.com/en-us/azure/application-gateway/rewrite-http-headers-url
