- (Exam Topic 3)

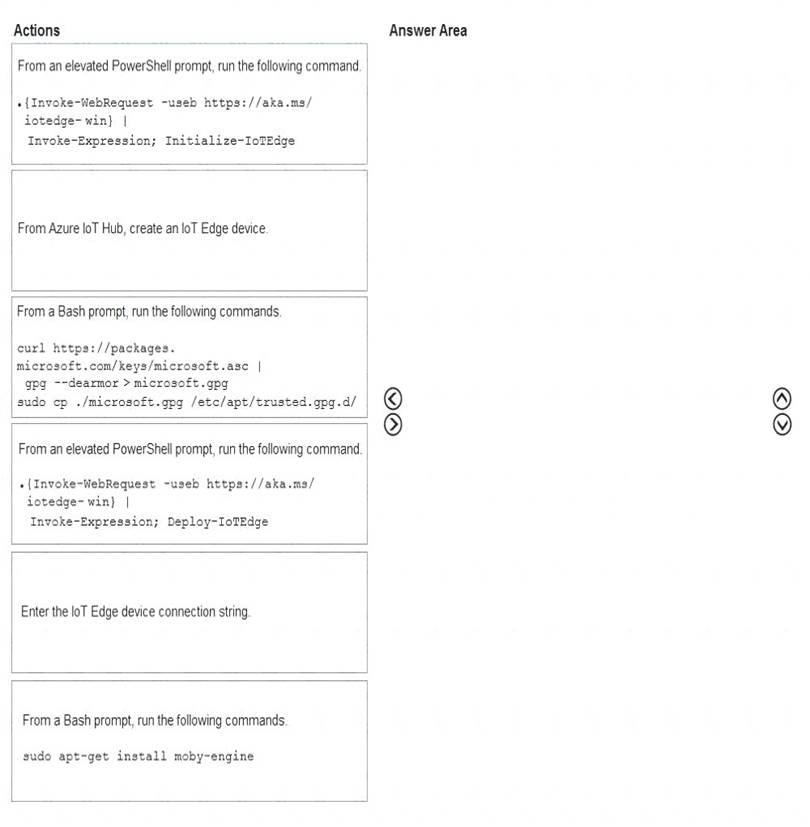

You need to install the Azure IoT Edge runtime on a new device that runs Windows 10 IoT Enterprise. Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.

Solution:
Step 1: From Azure IoT Hub, create an IoT Edge Device
Step 2: Deploy-IoTEdge
The Deploy-IoTEdge command checks that your Windows machine is on a supported version, turns on the containers feature, and then downloads the moby runtime and the IoT Edge runtime. The command defaults to using Windows containers.
{Invoke-WebRequest -useb https://aka.ms/iotedge-win} | Invoke-Expression; ` Deploy-IoTEdge
Step 3: Initialize-IoTEdge
The Initialize-IoTEdge command configures the IoT Edge runtime on your machine. The command defaults to manual provisioning with Windows containers.
{Invoke-WebRequest -useb https://aka.ms/iotedge Step 4: Enter the IoT Edge device connection string.
When prompted, provide the device connection string that you retrieved in step 1. The device connection string associates the physical device with a device ID in IoT Hub.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/module-composition

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 3)
You have the devices shown in the following table.

You are implementing a proof of concept (POC) for an Azure IoT solution. You need to deploy an Azure IoT Edge device as part of the POC.
On which two devices can you deploy IOT Edge? Each correct answer presents a complete solution.
NOTE: Each correct selection is worth one point.

1. A. Device1
2. B. Device2
3. C. Device3
4. D. Device4

Correct Answer: BC
Azure IoT Edge runs great on devices as small as a Raspberry Pi3 to server grade hardware. Tier 1.
The systems listed in the following table are supported by Microsoft, either generally available or in public preview, and are tested with each new release.

Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/support

- (Exam Topic 3)
You have an Azure IoT hub.
You plan to deploy 1,000 IoT devices by using automatic device management. The device twin is shown below.
You need to configure automatic device management for the deployment.
Which target Condition and Device Twin Path should you use? To answer, select the appropriate options in the answer area.
NOTE: Each correct selection is worth one point.

Solution:
Box 1: tags.engine.warpDriveType='VM105a'
Use tags to target twins. Before you create a configuration, you must specify which devices or modules you want to affect. Azure IoT Hub identifies devices and using tags in the device twin, and identifies modules using tags in the module twin.
Box 2: properties.desired.warpOperating
The twin path, which is the path to the JSON section within the twin desired properties that will be set. For example, you could set the twin path to properties.desired.chiller-water and then provide the following
JSON content:
{
"temperature": 66,
"pressure": 28
}
Reference:
https://docs.microsoft.com/en-us/azure/iot-hub/iot-hub-automatic-device-management

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 1)
How should you complete the GROUP BY clause to meet the Streaming Analytics requirements?

1. A. GROUP BY HoppingWindow(Second, 60, 30)
2. B. GROUP BY TumblingWindow(Second, 30)
3. C. GROUP BY SlidingWindow(Second, 30)
4. D. GROUP BY SessionWindow(Second, 30, 60)

Correct Answer: B
Scenario: You plan to use a 30-second period to calculate the average temperature reading of the sensors. Tumbling window functions are used to segment a data stream into distinct time segments and perform a
function against them, such as the example below. The key differentiators of a Tumbling window are that they repeat, do not overlap, and an event cannot belong to more than one tumbling window.
InAnswers:
A: Hopping window functions hop forward in time by a fixed period. It may be easy to think of them as Tumbling windows that can overlap, so events can belong to more than one Hopping window result set.
Reference:
https://docs.microsoft.com/en-us/azure/stream-analytics/stream-analytics-window-functions

- (Exam Topic 3)
From the Device Provisioning Service, you create an enrollment as shown in the exhibit. (Click the Exhibit tab.)

You need to deploy a new IoT device.
What should you use as the device identity during attestation?

1. A. a self-signed X.509 certificate
2. B. the random string of alphanumeric characters
3. C. the HMACSHA256 hash of the device's registration ID
4. D. the endorsement key of the device's Trusted Platform Module (TPM)

Correct Answer: C
Each device uses its derived device key with your unique registration ID to perform symmetric key attestation with the enrollment during provisioning. To generate the device key, use the key you copied from your DPS
enrollment to compute an HMAC-SHA256 of the unique registration ID for the device and convert the result into Base64 format.
Reference:
https://docs.microsoft.com/en-us/azure/iot-edge/how-to-auto-provision-symmetric-keys
