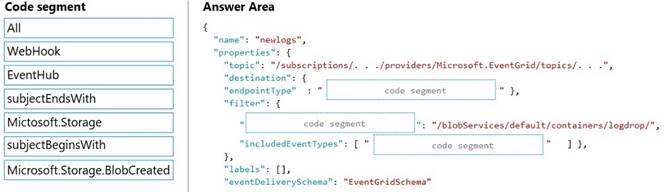

DRAG DROP - (Topic 4)
You need to implement the Log policy.
How should you complete the Azure Event Grid subscription? To answer, drag the appropriate JSON segments to the correct locations. Each JSON segment may be used once, more than once, or not at all. You may need to drag the split bar between panes to view content.
NOTE:Each correct selection is worth one point.

Solution:
Box 1:WebHook
Scenario: If an anomaly is detected, an Azure Function that emails administrators is called by using an HTTP WebHook.
endpointType: The type of endpoint for the subscription (webhook/HTTP, Event Hub, or
queue).
Box 2: SubjectBeginsWith
Box 3: Microsoft.Storage.BlobCreated Scenario: Log Policy
All Azure App Service Web Apps must write logs to Azure Blob storage. All log files should be saved to a container named logdrop. Logs must remain in the container for 15 days.
Example subscription schema
{
"properties": { "destination": {
"endpointType": "webhook", "properties": { "endpointUrl":
"https://example.azurewebsites.net/api/HttpTriggerCSharp1?code=VXbGWce53l48Mt8wuo tr0GPmyJ/nDT4hgdFj9DpBiRt38qqnnm5OFg=="
}
},
"filter": {
"includedEventTypes": [ "Microsoft.Storage.BlobCreated", "Microsoft.Storage.BlobDeleted"
],
"subjectBeginsWith": "blobServices/default/containers/mycontainer/log", "subjectEndsWith": ".jpg",
"isSubjectCaseSensitive ": "true"
}
}
}

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 8)
A company is implementing a publish-subscribe (Pub/Sub) messaging component by using Azure Service Bus. You are developing the first subscription application.
In the Azure portal you see that messages are being sent to the subscription for each topic. You create and initialize a subscription client object by supplying the correct details, but the subscription application is still not consuming the messages.
You need to ensure that the subscription client processes all messages. Which code segment should you use?

1. A. await subscriptionClient.AddRuleAsync(new RuleDescription (RuleDescription.DefaultRuleName, new TrueFilter()));
2. B. subscriptionClient = new SubscriptionClient(ServiceBusConnectionString, TopicName, SubscriptionName); D18912E1457D5D1DDCBD40AB3BF70D5D
3. C. await subscriptionClient.CloseAsync();
4. D. subscriptionClient.RegisterMessageHandler(ProcessMessagesAsync, messageHandlerOptions);

Correct Answer: D
Using topic client, call RegisterMessageHandler which is used to receive messages continuously from the entity. It registers a message handler and begins a new thread to receive messages. This handler is waited on every time a new message is received by the receiver.
subscriptionClient.RegisterMessageHandler(ReceiveMessagesAsync, messageHandlerOptions);
Reference:
https://www.c-sharpcorner.com/article/azure-service-bus-topic-and-subscription-pub-sub/

- (Topic 8)
You develop and deploy an Azure App Service web app. The app is deployed to multiple regions and uses Azure Traffic Manager. Application Insights is enabled for the app.
You need to analyze app uptime for each month.
Which two solutions win achieve the goal? Each correct answer presents a complete solution
NOTE: Each correct selection is worth one point

1. A. Application Insights alerts
2. B. Application Insights web tests
3. C. Azure Monitor logs
4. D. Azure Monitor metrics

Correct Answer: AC
Reference:
https://azure.microsoft.com/en-us/blog/creating-a-web-test-alert-programmatically-with-application-insights/

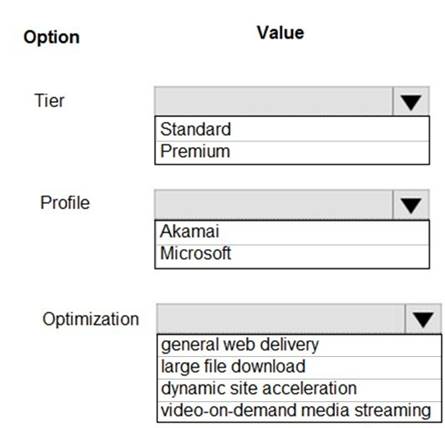

HOTSPOT - (Topic 1)
You need to configure Azure CDN for the Shipping web site.
Which configuration options should you use? To answer, select the appropriate options in the answer area.
NOTE:Each correct selection is worth one point.

Solution:
Scenario: Shipping website
Use Azure Content Delivery Network (CDN) and ensure maximum performance for dynamic content while minimizing latency and costs.
Tier: Standard Profile: Akamai
Optimization: Dynamic site acceleration
Dynamic site acceleration (DSA) is available for Azure CDN Standard from Akamai, Azure CDN Standard from Verizon, and Azure CDN Premium from Verizon profiles.
DSA includes various techniques that benefit the latency and performance of dynamic content. Techniques include route and network optimization, TCP optimization, and more.
You can use this optimization to accelerate a web app that includes numerous responses that aren't cacheable. Examples are search results, checkout transactions, or real-time data. You can continue to use core Azure CDN caching capabilities for static data.

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

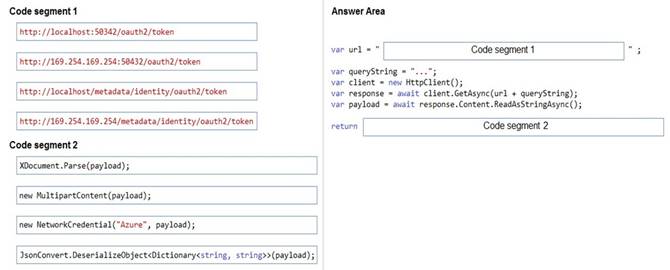

DRAG DROP - (Topic 8)
You are developing a web service that will run on Azure virtual machines that use Azure Storage. You configure all virtual machines to use managed identities.
You have the following requirements:
✑ Secret-based authentication mechanisms are not permitted for accessing an Azure Storage account.
✑ Must use only Azure Instance Metadata Service endpoints.
You need to write code to retrieve an access token to access Azure Storage. To answer, drag the appropriate code segments to the correct locations. Each code segment may be used once or not at all. You may need to drag the split bar between panes or scroll to view content.
NOTE:Each correct selection is worth one point.

Solution:
Azure Instance Metadata Service endpoints "/oauth2/token" Box 1: http://169.254.169.254/metadata/identity/oauth2/token
Sample request using the Azure Instance Metadata Service (IMDS) endpoint (recommended):
GET 'http://169.254.169.254/metadata/identity/oauth2/token?api-version=2018-02- 01&resource=https://management.azure.com/' HTTP/1.1 Metadata: true
Box 2: JsonConvert.DeserializeObject>(payload); Deserialized token response; returning access code.

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
