DRAG DROP - (Topic 8)
You develop an application. You plan to host the application on a set of virtual machines (VMs) in Azure.
You need to configure Azure Monitor to collect logs from the application.

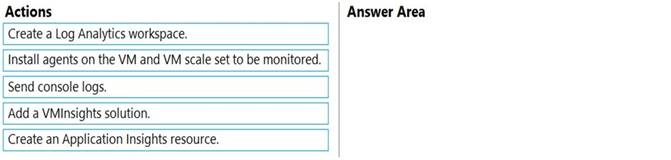

Which four actions should you perform in sequence? To answer, move the appropriate actions from the list of actions to the answer area and arrange them in the correct order.
Solution:
Step 1: Create a Log Analytics workspace. First create the workspace.
Step 2: Add a VMInsights solution.
Before a Log Analytics workspace can be used with VM insights, it must have the VMInsights solution installed.
Step 3: Install agents on the VM and VM scale set to be monitored.
Prior to onboarding agents, you must create and configure a workspace. Install or update the Application Insights Agent as an extension for Azure virtual machines and VM scalet sets.
Step 4: Create an Application Insights resource

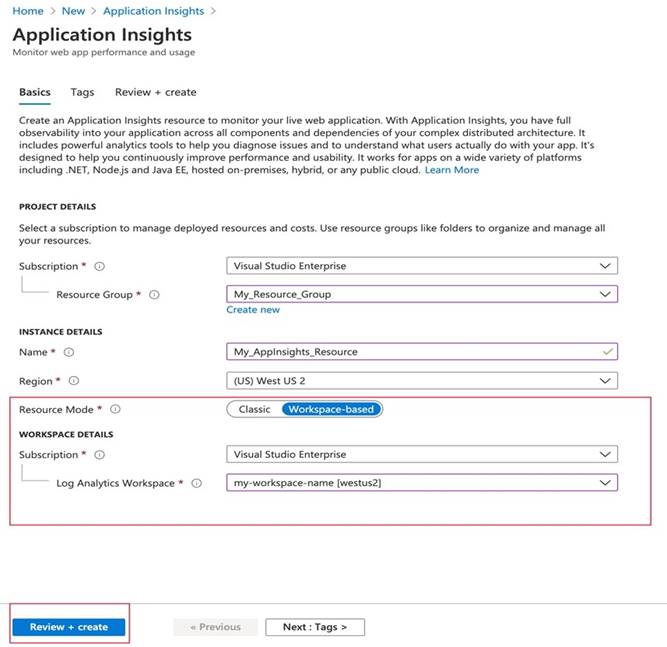

Sign in to the Azure portal, and create an Application Insights resource.
Once a workspace-based Application Insights resource has been created, configuring monitoring is relatively straightforward.
Does this meet the goal?
Correct Answer:
A
DRAG DROP - (Topic 8)
You are developing an Azure solution to collect inventory data from thousands of stores located around the world. Each store location will send the inventory data hourly to an Azure Blob storage account for processing.
The solution must meet the following requirements:
✑ Begin processing when data is saved to Azure Blob storage.
✑ Filter data based on store location information.
✑ Trigger an Azure Logic App to process the data for output to Azure Cosmos DB.
✑ Enable high availability and geographic distribution.
✑ Allow 24-hours for retries.
✑ Implement an exponential back off data processing.
You need to configure the solution.

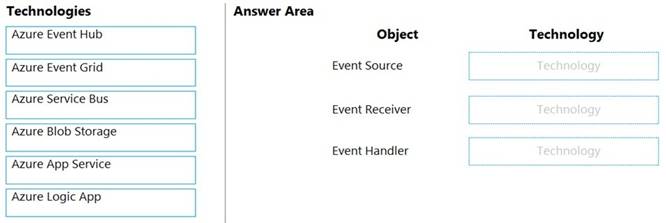

What should you implement? To answer, select the appropriate options in the answer area.
NOTE:Each correct selection is worth one point.
Solution:
Box 1: Azure Event Grid
Blob storage events are pushed using Azure Event Grid to subscribers such as Azure Functions, Azure Logic Apps, or even to your own http listener. Event Grid provides reliable event delivery to your applications through rich retry policies and dead-lettering.
Box 2: Azure Logic App

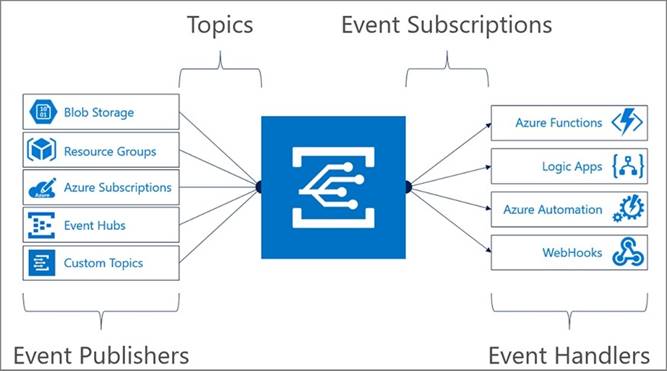

Event Grid uses event subscriptions to route event messages to subscribers. This image illustrates the relationship between event publishers, event subscriptions, and event handlers.
Diagram
Description automatically generated
Box 3: Azure Service Bus
The Event Grid service doesn't store events. Instead, events are stored in the Event Handlers, including ServiceBus, EventHubs, Storage Queue, WebHook endpoint, or many other supported Azure Services.
Does this meet the goal?
Correct Answer:
A
HOTSPOT - (Topic 8)
You are creating an app that uses Event Grid to connect with other services. Your app's event data will be sent to a serverless function that checks compliance. This function is maintained by your company.
You write a new event subscription at the scope of your resource. The event must be invalidated after 3 specific period of time. You need to configure Event Grid to ensure security.

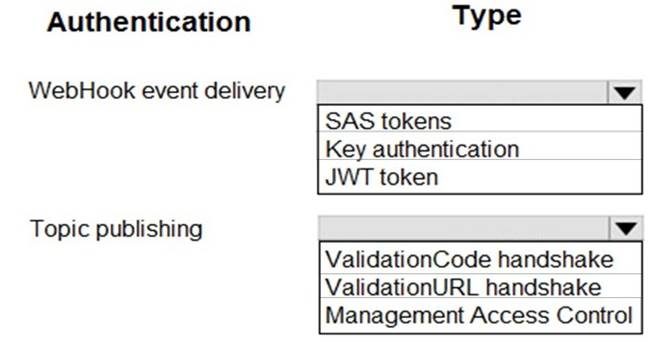

What should you implement? To answer, select the appropriate options in [he answer area. NOTE: Each correct selection is worth one point
Solution:
Box 1: SAS tokens
Custom topics use either Shared Access Signature (SAS) or key authentication. Microsoft recommends SAS, but key authentication provides simple programming, and is compatible with many existing webhook publishers.
In this case we need the expiration time provided by SAS tokens.
Box 2: ValidationCode handshake
Event Grid supports two ways of validating the subscription: ValidationCode handshake (programmatic) and ValidationURL handshake (manual).
If you control the source code for your endpoint, this method is recommended.
Does this meet the goal?
Correct Answer:
A
DRAG DROP - (Topic 8)
You have an application that uses Azure Blob storage. You need to update the metadata of the blobs.
Which three methods should you use to develop the solution? To answer, move the appropriate methods from the list of methods to the answer area and arrange them in the correct order.
Solution:
Metadata.Add example:
// Add metadata to the dictionary by calling the Add method metadata.Add("docType", "textDocuments");
SetMetadataAsync example:
// Set the blob's metadata.
await blob.SetMetadataAsync(metadata);
// Set the blob's properties.
await blob.SetPropertiesAsync();
Does this meet the goal?
Correct Answer:
A
- (Topic 8)
You are a developing a SaaS application that stores data as key value pairs.
You must make multiple editions of the application available. In the lowest cost edition, the performance must be best-effort, and there is no regional failover.
In higher cos! editions customers must be able to select guaranteed performance and support for multiple regions. Azure costs must be minimized.
Which Azure Cosmos OB API should you use for the application?
Correct Answer:
D
