- (Topic 5)

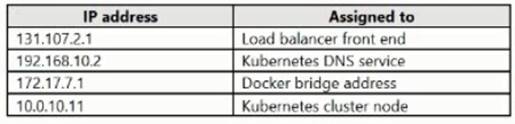

You deploy an Azure Kubernetes Service (AKS) cluster named Cluster1 that uses the IP addresses shown in the following table.
You need to provide internet users with access to the applications that run in Cluster1. Which IP address should you include in the DNS record for Ousted?
Correct Answer:
B
When any internet user will try to access the cluster which is behind a load balancer, traffic
will first hit to load balancer front end IP. So in the DNS configuration you have to provide the IP address of the load balancer.
Reference:
https://stackoverflow.com/questions/43660490/giving-a-dns-name-to-azure-load-balancer
HOTSPOT - (Topic 5)

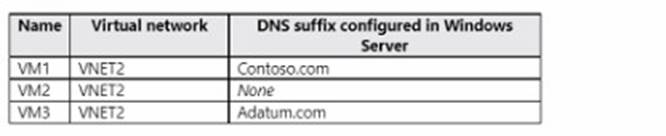

You have an Azure subscription. The subscription contains virtual machines that run Windows Server 2016 and are configured as shown in the following table.
You create a public Azure DNS zone named adatum.com and a private Azure DNS zone named conioso.com.

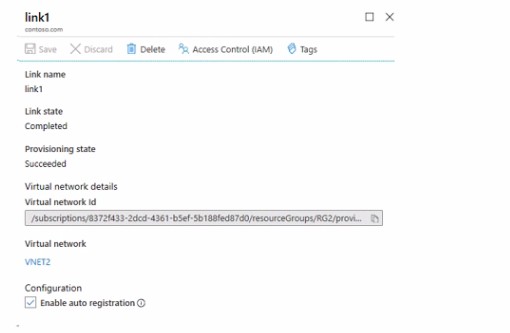

You create a virtual network link for contoso.com as shown in the following exhibit.

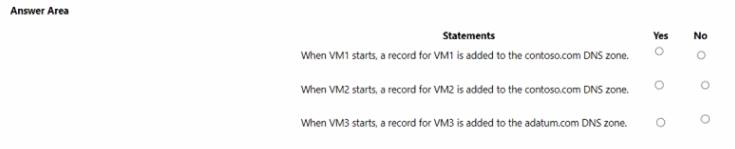

For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Solution:
All three VMs are in VNET2. Auto registration is enabled for private Azure DNS zone named contoso.com, which is linked to VNET2. So, VM1, VM2 and VM3 will auto-register their host records to contoso.com.None of the VM will auto-register to the public Azure DNS zone named adatum.com. You cannot register private IPs on the internet (adatum.com)
Box 1: Yes
Auto registration is enabled for private Azure DNS zone named contoso.com.
Box 2: Yes
Auto registration is enabled for private Azure DNS zone named contoso.com.
Box 3: No
None of the VM will auto-register to the public Azure DNS zone named adatum.com
Does this meet the goal?
Correct Answer:
A
HOTSPOT - (Topic 5)
You have three Azure subscriptions named Sub1, Sub2, and Sub3 that are linked to an Azure AD tenant.
The tenant contains a user named User1, a security group named Group1, and a management group named MG1. User1 is a member of Group1.
Sub1 and Sub2 are members of MG1. Sub1 contains a resource group named RG1. RG1 contains five Azure functions.
You create the following role assignments for MG1:
• Group1: Reader
• User1: User Access Administrator
You assign User1 the Virtual Machine Contributor role for Sub1 and Sub2. You assign User1 the Contributor role for RG1.
For each of the following statements, select Yes if the statement is true. Otherwise, select No.
NOTE: Each correct selection is worth one point.
Solution:
Does this meet the goal?
Correct Answer:
A
- (Topic 5)

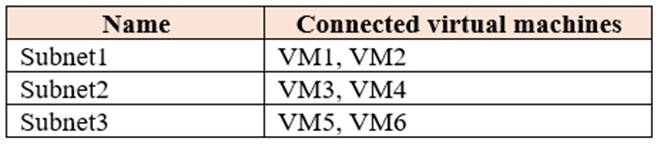

You have an Azure subscription that contains a virtual network named VNET1. VNET1 contains the subnets shown in the following table.
Each virtual machine uses a static IP address.
You need to create network security groups (NSGs) to meet following requirements:
✑ Allow web requests from the internet to VM3, VM4, VM5, and VM6.
✑ Allow all connections between VM1 and VM2.
✑ Allow Remote Desktop connections to VM1.
✑ Prevent all other network traffic to VNET1.
What is the minimum number of NSGs you should create?
Correct Answer:
C
Note: A network security group (NSG) contains a list of security rules that allow or deny network traffic to resources connected to Azure Virtual Networks (VNet). NSGs can be associated to subnets, individual VMs (classic), or individual network interfaces (NIC) attached to VMs (Resource Manager).
Each network security group also contains default security rules.
References:
https://docs.microsoft.com/en-us/azure/virtual-network/security-overview#default-security- rules
- (Topic 5)
You have an Azure DNS zone named adatum.com. You need to delegate a subdomain named research.adatum.com to a different DNS server in Azure. What should you do?
Correct Answer:
B
https://docs.microsoft.com/en-us/azure/dns/delegate-subdomain
