Refer to the exhibit.

Of which cable type this an example?

1. A. RJ-45 straight-through
2. B. RJ-45
3. C. RJ-45 rollover
4. D. RJ-11
5. E. RJ-45 crossover

Correct Answer: E

Which router can be used for disk-in-access to the router CLI management purposes and does not usually pass normal network traffic?

1. A. AUX
2. B. Gigabit Ethernet
3. C. Fast Ethernet
4. D. Channelized serial

Correct Answer: A

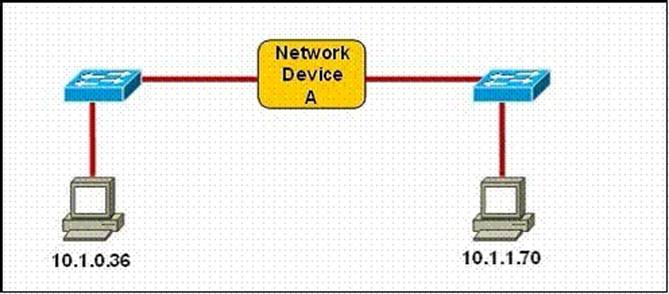

Refer to the exhibit.

Which three statements correctly describe Network Device A? (Choose three.)

1. A. With a network wide mask of 255.255.255.128, each interface does not require an IP address.
2. B. With a network wide mask of 255.255.255.128, each interface does require an IP address on a unique IP subnet.
3. C. With a network wide mask of 255.255.255.0, must be a Layer 2 device for the PCs to communicate with each other.
4. D. With a network wide mask of 255.255.255.0, must be a Layer 3 device for the PCs to communicate with each other.
5. E. With a network wide mask of 255.255.254.0, each interface does not require an IP address.

Correct Answer: BDE

The pins and RJ-45 are numbered from 1 through 8. With the material points of the plug facing toward you, pin 1 is the leftmost pin. Which two sets are looped on an RJ-45 T1 loopback plug? (Choose two)

1. A. Pins 1 and 4
2. B. Pins 1 and 7
3. C. Pins 2 and 5
4. D. Pins 2 and 8
5. E. Pins 1 and 5
6. F. Pins 2 and 7

Correct Answer: AC

Which type of memory stores the startup configuration file for the Cisco device?

1. A. Flash
2. B. NVRAM
3. C. RAM
4. D. ROM

Correct Answer: B
