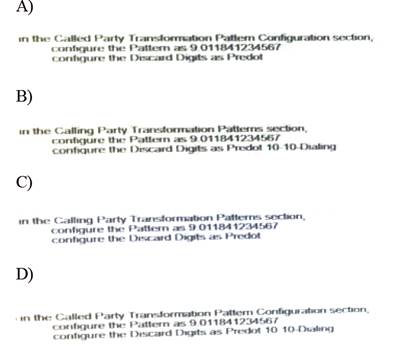

A user dials 9011841234567 to reach Vietnam. Which steps send the call to the PSTN provider as 011841234567?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A

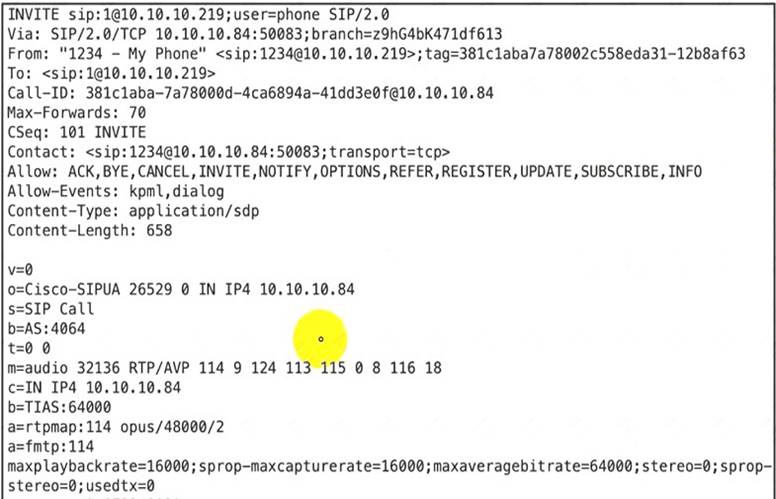

Refer to the exhibit.

When a UC Administrator is troubleshooting DTMF negotiated by this SIP INVITE, which two messages are examined next to further troubleshoot the issue? (Choose two.)

1. A. REGISTER
2. B. SUBSCRIBE
3. C. PRACK
4. D. NOTIFY
5. E. UPDATE

Correct Answer: BD

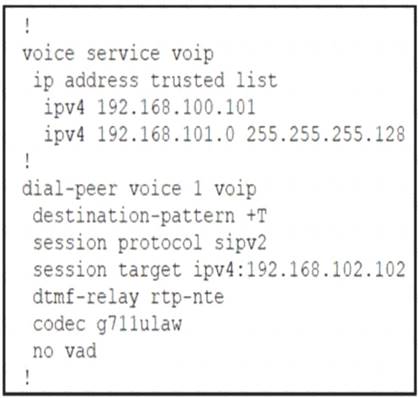

Refer to the exhibit.

When a call is received on Cisco Unified Border Element. from which lP does it allow a connection?

1. A. 192.168.100.103
2. B. 192.168.102.102
3. C. 192.168.100.102
4. D. 192.168.101.201

Correct Answer: B

Refer to the exhibit.

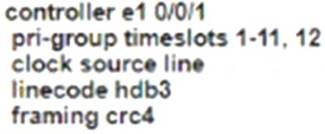

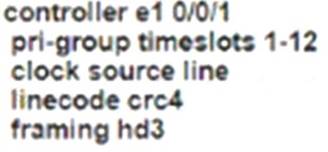

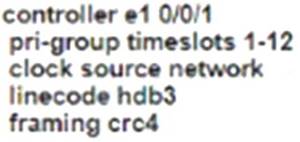

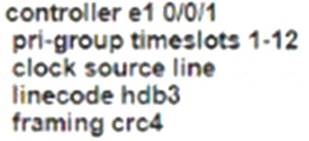

An administrator must replace the T1 card with an E1 card. What is the correct configuration if the administrator was asked to configure 12 time slots?

1. A.
2. B.
3. C.
4. D.

Correct Answer: C

Which type of message must an administrator configure in the SIP Trunk Security Profile for a Message Waiting Indicator light to work with a SIP integration between Cisco UCM and Cisco Unity Connection?

1. A. Unsolicited NOTIFY
2. B. 200 ok
3. C. SIP Register
4. D. TCP port 5060

Correct Answer: A
