Which Webex Calling construct is used to organize calling features within a physical site?

1. A. client settings
2. B. locations
3. C. service settings
4. D. call routing

Correct Answer: B
A location is a physical site that contains users, devices, and resources. Locations are used to organize calling features within a physical site. For example, you can create a location for each of your offices and then assign users, devices, and resources to that location. This will allow you to manage calling features for each office separately.

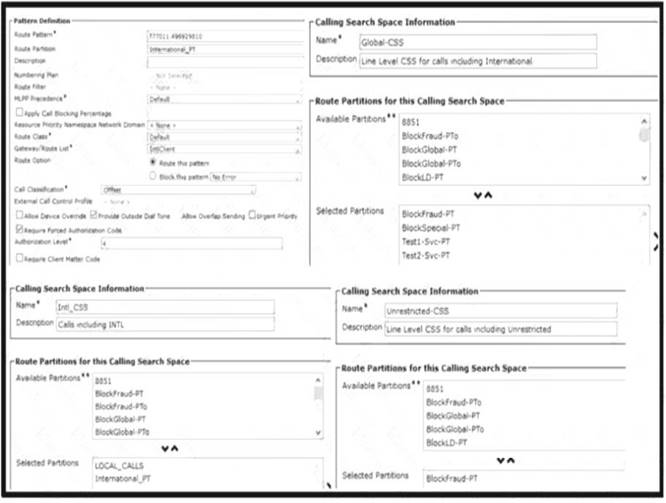

Refer to the exhibit.

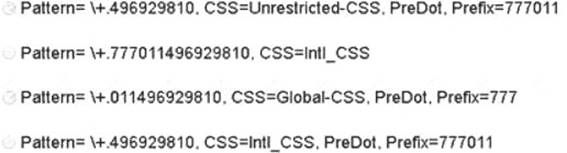

How must the +E.164 translation pattern be configured to reach international number 496929810?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

What is the purpose of a hybrid Local Gateway?

1. A. to handle calls between Webex Calling and Cisco Calling Plans
2. B. to handle calls between Webex Calling and Cloud Connected PSTN
3. C. to handle calls between Cisco IJCM and Webex Calling
4. D. to handle calls between the Public Switched Telephone Network and Webex Calling

Correct Answer: D
A hybrid local gateway handles calls between the Public Switched Telephone Network (PSTN) and Webex Calling. It is commonly deployed on the customer's premises but can also be hosted by a partner. The local gateway registers with Webex Calling and handles all calls between the PSTN and Webex Calling. It gives customers the flexibility to bring their own service provider or continue using their existing provider for a smooth and effective transition to the cloud.

Which DHCP option must be set up tor new phones to obtain the TFTP server IP address?

1. A. option 66
2. B. option 15
3. C. option 6
4. D. option 120

Correct Answer: A

Refer to the exhibit.

An engineer configures ISDN on a voice gateway. The provider confirms that the PRI is configured with 10 channels the engineer ordered and is working from the provider side, but the engineer cannot get a B-channel to carry voice. The rest of the configuration for the serial interface and voice network is functioning correctly. Which actions must be taken to carry voice?

1. A. The engineer must activate the controller card on the voice gateway before configuring the device.
2. B. The engineer used a T1 interface but must use an E1 interface.
3. C. The pri-group timeslots command must be 0-9 for the 10 channels because all values on a router start with 0.
4. D. The engineer must manually revert the order of using the channels.

Correct Answer: A
