Refer to the exhibit.

An engineer must monitor ingress traffic from SW1 and SW2 port-channel interfaces from SW3. Which configuration must be implemented to accomplish this goal?

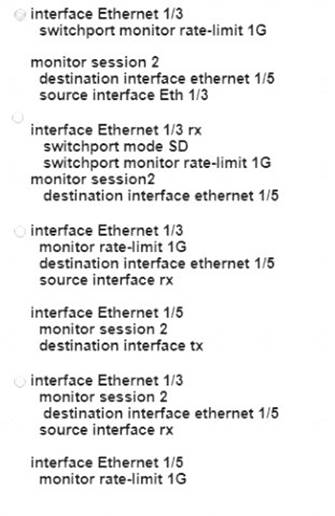

A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

Refer to the exhibit.

An engineer configures a new application profile using REST API and receives this error massage. Which method can be used before application profile can be configured?

1. A. POST to aaaLogin
2. B. POST to aaaRefresh
3. C. POST to aaaLogout
4. D. GET to aaaListDomains

Correct Answer: A
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/rest_cfg/2_1_x/ b_Cisco_APIC_REST_API_Configuration_Guide/ b_Cisco_APIC_REST_API_Configuration_Guide_chapter_01.html

An engineer upgrades the bash on the Cisco Nexus 9000 Series Switch.

Which command must be sed to complete the task?

1. A. rpm -qa
2. B. rpm -Uhv
3. C. upgrade -U
4. D. update -vh

Correct Answer: B

Refer to the exhibit.

An engineer configures FCIP on a Cisco MDS 9000 Series switch. What is the result of implementing the configuration?

1. A. The switch attempts to make two TCP connections
2. B. Compression is performed by using hardware
3. C. Mode2 is enabled by default.
4. D. Compression is performed by using software.

Correct Answer: B
https://www.cisco.com/c/en/us/td/docs/switches/datacenter/mds9000/sw/8_x/config/ip_services/ipsvc/ cfcip.html

An engineer updated firmware on Fabric Interconnects and activates it. However, the endpoint fails to boot from the new firmware image. What is expected to occur in this case?

1. A. The system defaults to the backup image version
2. B. The system defaults to and boots into GOLD firmware image
3. C. The system defaults to the GOLD firmware image
4. D. The system defaults to and boots into kickstart image

Correct Answer: A
https://www.cisco.com/c/en/us/td/docs/unified_computing/ucs/ucs-manager/CLI-User-Guides/Firmware- Mgmt/4-0/ b_UCSM_CLI_Firmware_Management_Guide_4-0/ b_UCSM_CLI_Firmware_Management_Guide_4-0_chapter_011.html
