An engineer must suggest a deployment model for a newly developed application. The engineer has a small starting budget and lacks technical knowledge and infrastructure to implement storage, operating system, and database services to support the application deployment. The engineer also needs usage data related to the service and the ability to elastically scale the deployment as customer demands grow. Which two models must be used to meet the requirements?
(Choose two.)

1. A. private cloud
2. B. platform as a service
3. C. software as a service
4. D. infrastructure as a service
5. E. public cloud

Correct Answer: DE

An engineer mus! configure HSRP protocol on two Cisco Nexus 9000 Series Switches running a virtual port channel. In addition, the HSRP implementation must meet these requirements:
It must allow more than 500 groups.
switch 1 must act as the primary switch.
Both switches must use a user-defined hardware address.

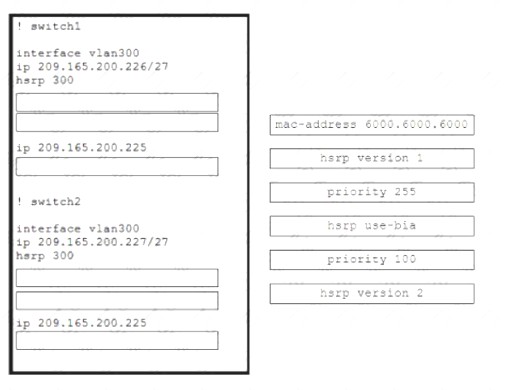

Drag and drop the commands from the right to complete a configuration of the HSRP on the left. The commands are used more than once. Not all commands are used.

Solution:
Switch 1:
Box 1 = hsrp version 2
Box 2 = priority 100
Box 3 = mac-address 6000.6000.6000
Switch 2:
Box 1 = hsrp version 2
Box 2 = priority 255
Box 3 = mac-address 6000.6000.6000

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

Refer to the exhibit.

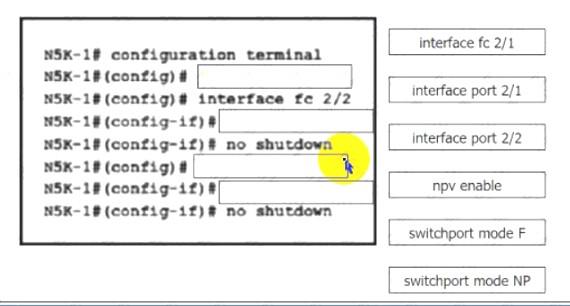

The server is sending traffic to the storage server using Fiber Channel protocol. The requirement is for the N5K-1 to forward traffic to MDS9k-1. Drag and drop the configuration steps from the right to complete the configuration for N5K-1 on the left. Not all configuration steps are used.

Solution:
npv enable, switchport mode F, interface fc2/1, switchport mode NP

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

A new user with access privileges in the Finance department moves to a new Admin department. The user must have access privileges to the Admin department data and applications inside the Cisco UCS Manager Which set of changes must be implemented in Cisco UCS Central for the user to acquire the privileges?

1. A. Create an Admin user account and remove the authentication service for the Finance privileges.
2. B. Disable the Finance user account and add the authentication service for the Admin privileges.
3. C. Create a new locale Admin and add the Admin department to the Admin local
4. D. Delete the old locale
5. E. Finance and remove the Finance department from the Finance locale.

Correct Answer: C

An engineer must allow communication between the APIC controller and an OpenStack OpFlex agent. The agent is running on a compute node directly plugged to a Cisco ACI leaf switch. The engineer must enable and extend Infra VLAN on the port facing the compute and extend the Infra VLAN to the host. Which action must be taken to meet these requirements?

1. A. Enable the Infra VLAN on the Interface Profile policy
2. B. Enable the Infra VLAN on the Attachable Access Entity Profile.
3. C. Add the infra VLAN via the physical domain.
4. D. Add the infra VLAN via the VMM domain.

Correct Answer: C
