Refer to the exhibit.

The operations team for a service provider network is implementing a route map policy. OSPF area 0 should originate the default route with a type 2 metric of 2 when the application server on the connected interface (192.168.1.1) is up. Routers RL and RM have set up OSPF peering with other adjacent routers. Which action meets this requirement?

1. A. Apply default-information originate route-map ospf-default-route on router RL.
2. B. Configure distribute-list route-map ospf-default-route out on router RM.
3. C. Configure distribute-list route-map ospf-default-route out on router RL.
4. D. Apply default-information originate route-map ospf-default-route on router RM.

Correct Answer: D

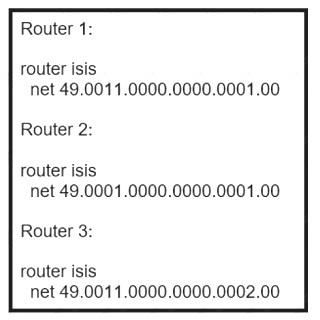

Refer to the exhibit.

Router 4 is added to the network and must be in the same area as router 1. Which NET should the engineer assign?

1. A. 49.0001.0000.0000.0004.00
2. B. 49.0111.0000.0000.0001.00
3. C. 49.0011.0000.0000.0003.00
4. D. 49.0011.0000.0000.0002.00

Correct Answer: C

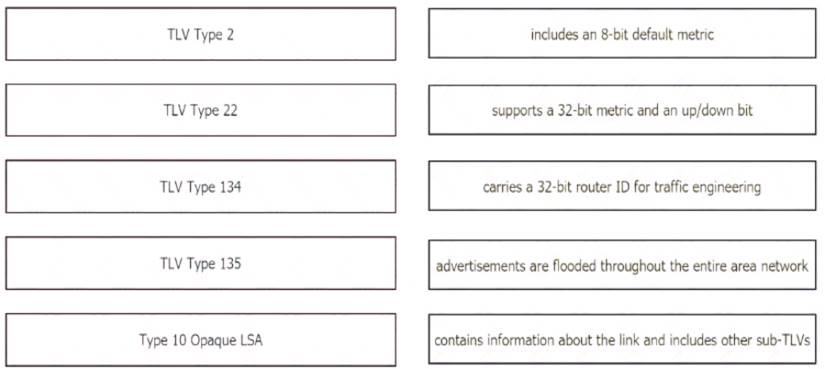

Drag and drop the OSPF and IS-IS Cisco MPLS TE extensions from the left to their functional descriptions on the right.

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

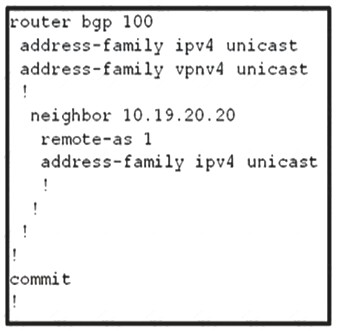

Refer to the exhibit.

An engineer is trying to implement BGP configuration on a router Which configuration error prevents the ASBR from establishing a BGP neighborship to a directly connected BGP speaker?

1. A. The routing policy is absent for this Cisco IOS XR eBGP instance.
2. B. The IPv4 address family configuration under neighbor configuration-mode must be removed.
3. C. The VPNv4 address family interferes with the 8GP IPv4 address family negotiations.
4. D. The TCP session parameters are not specified.

Correct Answer: D
https://www.cisco.com/c/en/us/td/docs/routers/xr12000/software/xr12k_r41/routing/configuration/guide/routing

An engineer is configuring IEEE 802.1 ad on the access port on a new Cisco router. The access port handles traffic from multiple customer VLANs, and it is expected to mark all customer traffic to the same VLAN without dropping any traffic. Which configuration must the engineer apply?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D
