Refer to the exhibit.

CE1 and CE2 require connectivity to the internet through the ISP connected to PE3 What should an engineer configure to complete this task?

1. A. PE2 must be configured to serve as a route reflector for PE3 routes learned from the interne
2. B. PE2 then shares the routes with CE1 and CE2.
3. C. CE1 and CE2 must be configured with a route distinguisher in the PE1 VRF that dynamically imports the route from the internet.
4. D. CE1 and CE2 must be configured to use a static default route with a next-hop of PE3 to reach internet routes.
5. E. PE1 must be configured with an import route target in the CE1 VRF that matches the export route target for the internet VRF on PE3.

Correct Answer: D

Refer to the exhibit.

What does this REST API script configure?

1. A. application profile
2. B. VRF
3. C. public community string for SNMP
4. D. interface with IP address 192.168.0.1

Correct Answer: D

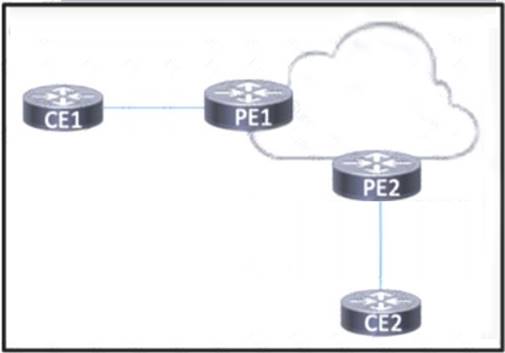

Refer to the exhibit

BGP is running in the core of the service provider to exchange routes for its customers, and OSPF serves as the PE-CE routing protocol. The service provider s existing customer at CE1 is opening a new office in a different geographical location connected via CE2. A network engineer must update the BGP implementation so that PE1 and PE2 will share routes and provide communication between CE1 and CE2 Which action must the engineer take?

1. A. Configured CE2 to establish a BGP relationship with PE1 and PE2
2. B. Configure CE1 and CE2 with a pseudowire that will run over the service provider core.
3. C. Configure PE1 and PE2 to mutually redistribute BGP and OSPF in the VRF for the customer.
4. D. Configure PE1 and PE2 to redistribute OSPF from the VRF for the customer into BGPPUM

Correct Answer: C

A company is expanding its existing office space to a new floor of the building, and the networking team is installing a new set of switches. The new switches are running IGMPv2, and the engineers configured them for VLAN10 only. The rest of the existing network includes numerous Layer 2 switches in multiple other VLANs, all running IGMPv3. Which additional task must the team perform when deploying the new switches so that traffic is switched correctly through the entire network?

1. A. Configure the new switches to use IGMPv3 on all VLANs on the network.
2. B. Configure all switches on the network to support IGMPv2 and IGMPv3 on all VLANs on the network.
3. C. Configure the new switches to use IGMPv3 on VLAN10 only.
4. D. Configure all switches on the network to support IGMPv2 and IGMPv3 on VLAN10 only.

Correct Answer: C

While implementing TTL security, you issue the PE(config-router-af)#neighbor 2.2.2.2 ttl-security hops 2 command.
After you issue this command, which BGP packets does the PE accept?

1. A. from 2.2.2.2, with a TTL ol 253 Of more
2. B. from 2.2.2.2, with a TTL of less than 2
3. C. to 2.2.2.2, with a TTL of less than 253
4. D. to 2.2.2.2, with a TTL of 2 or more

Correct Answer: A
