- (Topic 4)

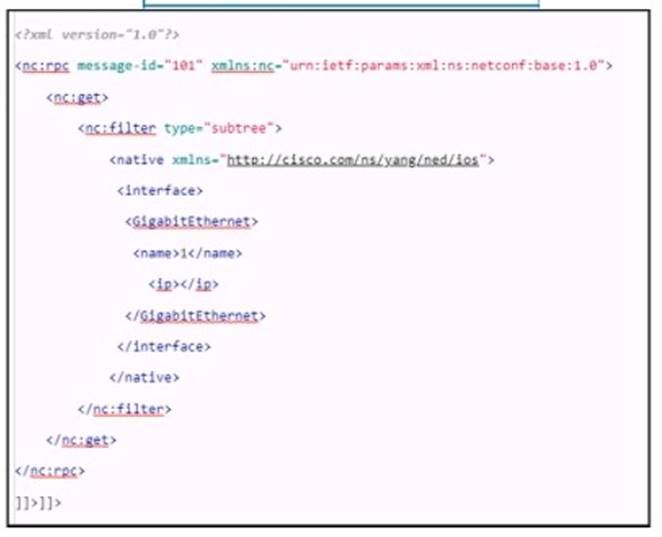

Refer to me exhibit. The NETCONF object is sent to a Cisco IOS XE switch. What is me purpose of the object?

1. A. view the configuration of all GigabitEthernet interfaces.
2. B. Discover the IP address of interface GigabitEthernet.
3. C. Set the description of interface GigabitEthernet1 to *1*.
4. D. Remove the IP address from interface GigabitEthernet1.

Correct Answer: A

- (Topic 2)
Refer to the exhibit.

What is required to configure a second export destination for IP address 192.168.10.1?

1. A. Specify a VRF.
2. B. Specify a different UDP port.
3. C. Specify a different flow ID
4. D. Configure a version 5 flow-export to the same destination.
5. E. Specify a different TCP port.

Correct Answer: B
To configure multiple NetFlow export destinations to a router, use the following commands in global configuration mode:
Step 1: Router(config)# ip flow-export destination ip-address udp-port
Step 2: Router(config)# ip flow-export destination ip-address udp-port
The following example enables the exporting of information in NetFlow cache entries: ip flow-export destination 10.42.42.1 9991 ip flow-export destination 10.0.101.254 1999
Reference: https://www.cisco.com/c/en/us/td/docs/ios/12_0s/feature/guide/12s_mdnf.html

- (Topic 2)

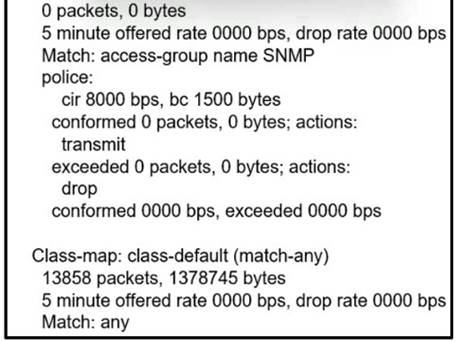

Refer to the exhibit.

How does the router handle traffic after the CoPP policy is configured on the router?

1. A. Traffic coming to R1 that does not match access list SNMP is dropped.
2. B. Traffic coming to R1 that matches access list SNMP is policed.
3. C. Traffic passing through R1 that matches access list SNMP is policed.
4. D. Traffic generated by R1 that matches access list SNMP is policed.

Correct Answer: C

- (Topic 4)
Refer to the exhibit.

What does the response "204 No Content mean for the REST API request?

1. A. Interface toopback 100 is not removed from the configuration.
2. B. Interface toopback 100 is not found in the configuration.
3. C. Interface toopback 100 is removed from the configuration.
4. D. The DELETE method is not supported.

Correct Answer: C
This is because the response “204 No Content” means that the REST API request was successful, but there is no content to return. The request was a DELETE method, which is used to remove a resource from the server. The resource in this case was the interface loopback 100, which was deleted from the configuration of the device. The source of this answer is the Cisco ENCOR v1.1 course, module 8, lesson 8.4: Implementing REST API.

- (Topic 1)
Which devices does Cisco DNA Center configure when deploying an IP-based access control policy?

1. A. All devices integrating with ISE
2. B. selected individual devices
3. C. all devices in selected sites
4. D. all wired devices

Correct Answer: C
When you click Deploy, Cisco DNA Center requests the Cisco Identity Services Engine (Cisco ISE) to send notifications about the policy changes to the network devices.
