- (Topic 4)

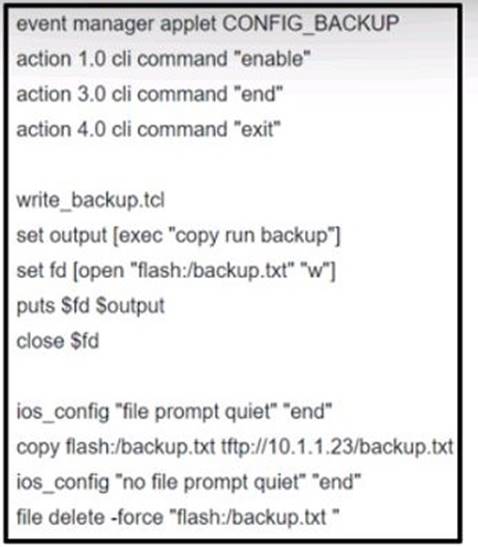

Refer to the exhibit.

Which statement is needed to complete the EEM applet and use the Tel script to store the backup file?

1. A. action 2.0 cli command "write_backup.tcl tcl"
2. B. action 2.0 cli command "flash:write_backup.tcl"
3. C. action 2.0 cli command "write_backup.tcl"
4. D. action 2.0 cli command "telsh flash:write_backup.tcl"

Correct Answer: B
This is because the EEM applet needs to specify the full path of the Tcl script that is stored in the flash memory of the device. The script name is write_backup.tcl and it is used to backup the running configuration to a remote server. The source of this answer is the Cisco ENCOR v1.1 course, module 8, lesson 8.3: Implementing Embedded Event Manager.

DRAG DROP - (Topic 4)

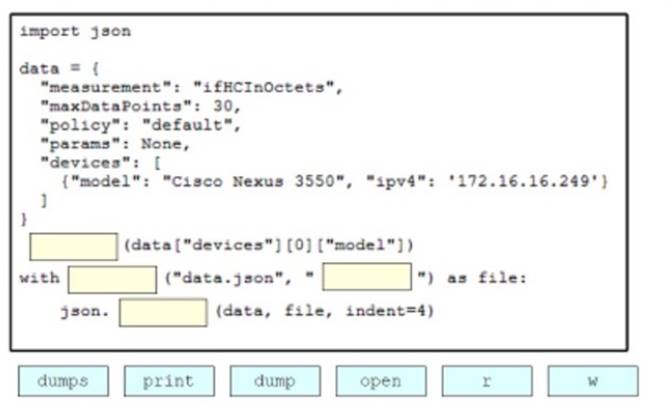

Drag and drop the code snippets from the bottom onto the blanks in the Python script to print the device model to the screen and write JSON data to a file Not all options are used

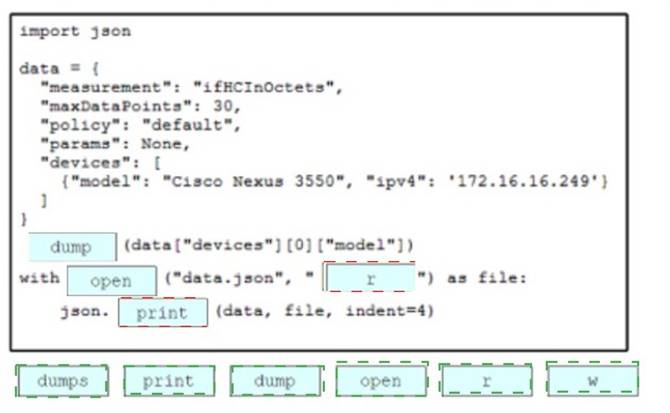

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Topic 2)
Why is an AP joining a different WLC than the one specified through option 43?

1. A. The WLC is running a different software version.
2. B. The API is joining a primed WLC
3. C. The AP multicast traffic unable to reach the WLC through Layer 3.
4. D. The APs broadcast traffic is unable to reach the WLC through Layer 2.

Correct Answer: B

- (Topic 3)

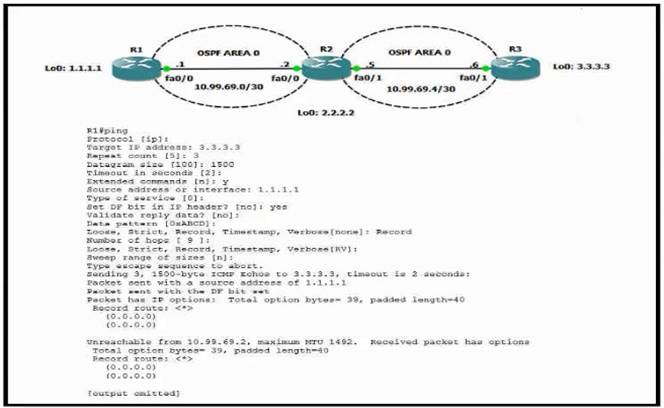

Refer to the exhibit.

R1 is able to ping the R3 fa0/1 Interface. Why do the extended pings fail?

1. A. The DF bit has been set
2. B. The maximum packet size accepted by the command is 147G bytes
3. C. R2 and R3 do not have an OSPF adjacency
4. D. R3 is missing a return route to 10.99.69.0/30

Correct Answer: A
If the DF bit is set, routers cannot fragment packets. From the output below, we learn
that the maximum MTU of R2 is 1492 bytes while we sent ping with 1500 bytes. Therefore these ICMP packets were dropped.
Note: Record option displays the address(es) of the hops (up to nine) the packet goes through.

DRAG DROP - (Topic 2)

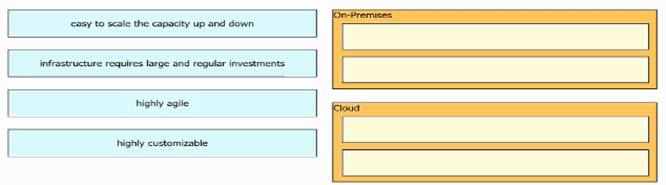

Drag and drop the characteristics from the left onto the infrastructure deployment models they describe on the right.

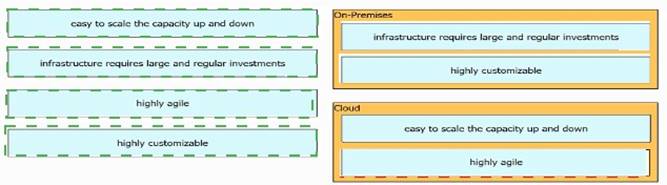

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A
