- (Topic 2)

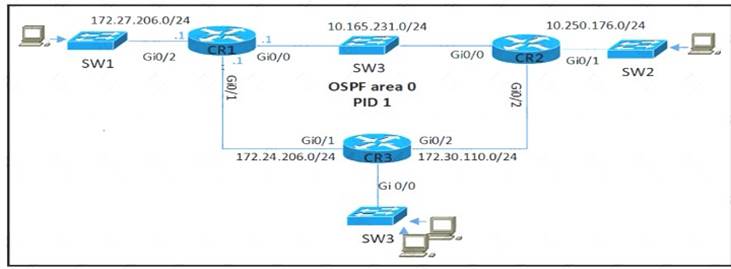

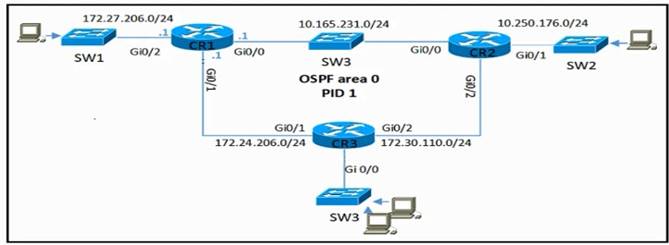

Refer to the exhibit.

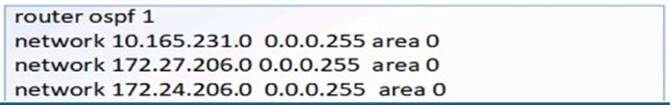

CR2 and CR3 ate configured with OSPF. Which configuration, when applied to CR1. allows CR1 to exchange OSPF Information with CR2 and CR3 but not with other network devices or on new Interfaces that are added to CR1?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: D

- (Topic 4)
Which two functions is an edge node responsible for? (Choose two.)

1. A. provides multiple entry and exit points for fabric traffic
2. B. provides the default exit point for fabric traffic
3. C. provides the default entry point for fabric traffic
4. D. provides a host database that maps endpoint IDs to a current location
5. E. authenticates endpoints

Correct Answer: AD

- (Topic 4)

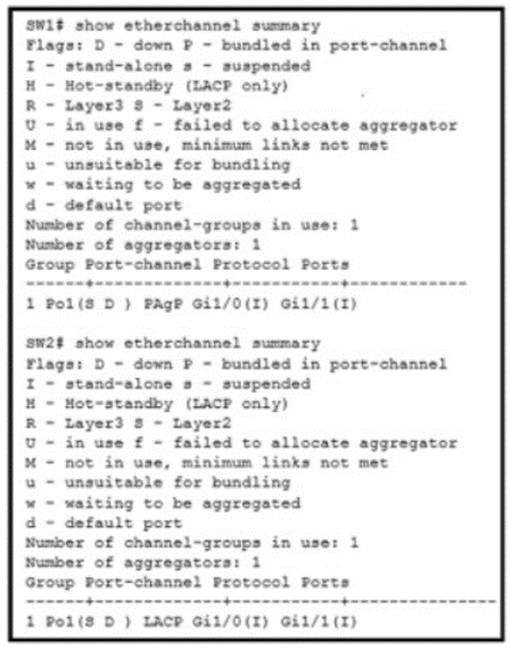

Reler to the exhibit The EtherChannel between SW1 and SW2 is not operational. Which a coon will resolve the issue?

1. A. Configure channel-group 1 mode active on GVO and G1 1 of SW2.
2. B. Configure twitchport trunk encapsulation dot1q on SW1 and SW2.
3. C. Configure channel-group 1 mode active on Gl'O and GM of SW1 .
4. D. Configure switchport mode dynamic desirable on SW1 and SW2

Correct Answer: C

- (Topic 2)
The login method is configured on the VTY lines of a router with these parameters
✑ The first method for authentication it TACACS
✑ If TACACS is unavailable login is allowed without any provided credentials
Which configuration accomplishes this task?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: B

- (Topic 3)

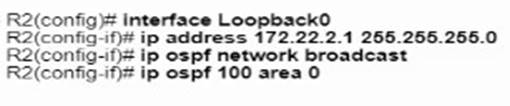

An engineer must configure a new loopback Interface on a router and advertise the interface as a fa4 in OSPF. Which command set accomplishes this task?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A
✑ Step 1. Create the loopback interface using the interface loopback number global configuration command.
✑ Step 2. Add a description. Although optional, it is a necessary component for documenting a network.
✑ Step 3. Configure the IP address.
For example, the following commands configure a loopback interface of the R1 router shown in (shown earlier in the chapter):
R1# configure terminal
R1(config)# interface loopback 0
R1(config-if)# ip address 10.0.0.1 255.255.255.0
R1(config-if)# exit
R1(config)#
