- (Topic 3)

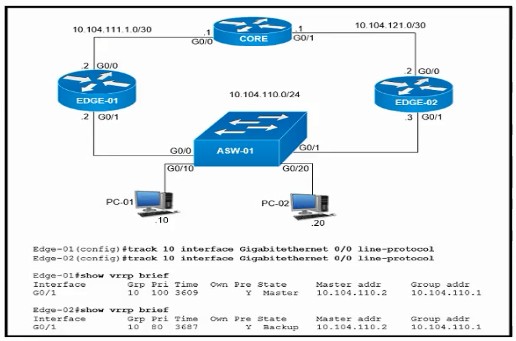

Refer to the exhibit.

Object tracking has been configured for VRRP-enabled routers Edge-01 and Edge-02 Which commands cause Edge-02 to preempt Edge-01 in the event that interface G0/0 goes down on Edge-01?
A)

B)

C)

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: A

- (Topic 4)

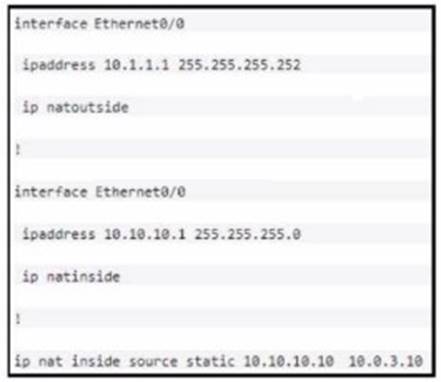

Refer lo the exhibit.

Which address type is 10.10.10.10 configured for?

1. A. inside global
2. B. outside local
3. C. outside global
4. D. inside local

Correct Answer: D

- (Topic 4)

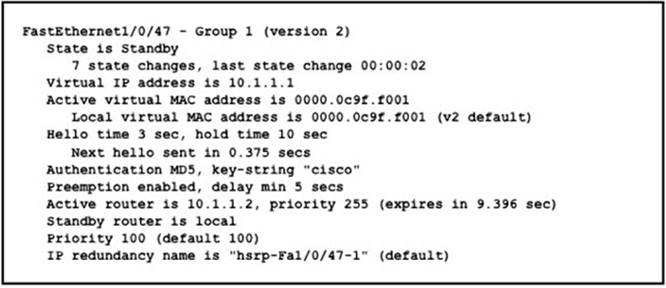

Refer to the exhibit. An engineer configures HSRP and enters the show standby command. Which two facts about the network environment are derived from the output? (Choose two.)

1. A. The local device has a higher priority selling than the active router
2. B. The virtual IP address of the HSRP group is 10.1.1.1.
3. C. If the local device fails to receive a hello from the active router for more than 5 seconds, it becomes the active router.
4. D. The hello and hold timers are set to custom values.
5. E. If a router with a higher IP address and same HSRP priority as the active router becomes available, that router becomes the new active router 5 seconds later.

Correct Answer: BE

- (Topic 1)
After a redundant route processor failure occurs on a Layer 3 device, which mechanism allows for packets to be forwarded from a neighboring router based on the most recent tables?

1. A. BFD
2. B. RPVST+
3. C. RP failover
4. D. NSF

Correct Answer: D

- (Topic 4)
A customer has a wireless network deployed within a multi-tenant building. The network provides client access, location-based services, and is monitored using Cisco DNA Center. The security department wants to locate and track malicious devices based on threat signatures. Which feature is required for this solution?

1. A. Cisco aWIPS policies on the WLC
2. B. Cisco aWIPS policies on Cisco DNA Center
3. C. malicious rogue rules on the WLC
4. D. malicious rogue rules on Cisco DNA Center

Correct Answer: B
