- (Topic 4)

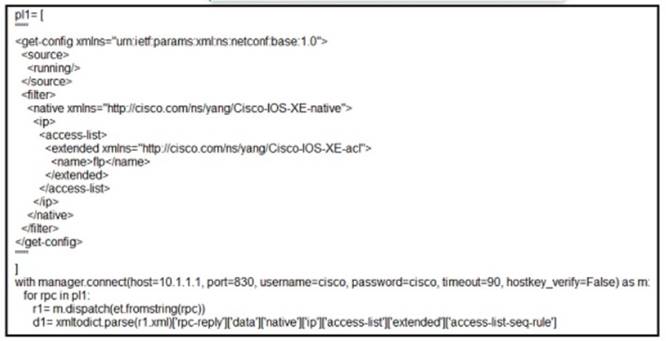

Refer to the exhibit.

What is achieved by the XML code?

1. A. It reads the access list sequence numbers from the output of the show ip access-list extended flp command into a dictionary list.
2. B. It displays the output of the show ip access-list extended flp command on the terminal screen
3. C. It displays the access list sequence numbers from the output of the show Ip access-list extended flp command on the terminal screen
4. D. It reads the output of the show ip access-list extended flp command into a dictionary list.

Correct Answer: A

- (Topic 3)
A large campus network has deployed two wireless LAN controllers to manage the wireless network. WLC1 and WLC2 have been configured as mobility peers. A client device roams from AP1 on WLC1 to AP2 on WLC2, but the controller's client interfaces are on different VLANs. How do the wireless LAN controllers handle the inter-subnet roaming?

1. A. WLC1 marks me diem with an anchor entry In Its own databas
2. B. The database entry is copied to the new controller and marked with a foreign entry on VVLC2.
3. C. WLC2 marks the client with an anchor entry In Its own databas
4. D. The database entry Is copied to the new controller and marked with a foreign entry on WLC1
5. E. WLCl marks the client with a foreign entry in its own databas
6. F. The database entry is copied to the new controller and marked with an anchor entry on WLC2.
7. G. WLC2 marks the client with a foreign entry In its own databas
8. H. The database entry Is copied to the new controller and marked with an anchor entry on WLC1.

Correct Answer: B

- (Topic 3)

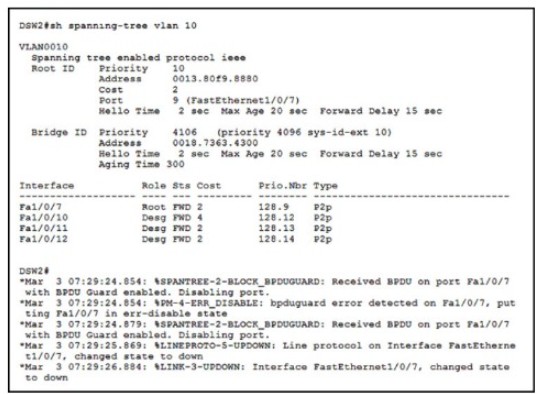

Refer to the exhibit.

An engineer entered the command no spanning-tree bpduguard enable on interface Fa 1/0/7. What is the effect of this command on Fa 1/0/7?

1. A. It remains in err-disabled state until the shutdown/no shutdown command is entered inthe interface configuration mode.
2. B. It remains in err-disabled state until the errdisable recovery cause failed-port-state command is entered in the global configuration mode.
3. C. It remains in err-disabled state until the no shutdown command is entered in the interface configuration mode.
4. D. It remains in err-disabled state until the spanning-tree portfast bpduguard disable command is entered in the interface configuration mode.

Correct Answer: A
sw2#show errdisable recovery ErrDisable Reason Timer Status
----------------- --------------
arp-inspection Disabled bpduguard Disabled
channel-misconfig (STP) Disabled dhcp-rate-limit Disabled
dtp-flap Disabled gbic-invalid Disabled inline-power Disabled l2ptguard Disabled link-flap Disabled mac-limit Disabled
link-monitor-failure Disabled loopback Disabled
oam-remote-failure Disabled pagp-flap Disabled
port-mode-failure Disabled pppoe-ia-rate-limit Disabled psecure-violation Disabled security-violation Disabled sfp-config-mismatch Disabled storm-control Disabled
udld Disabled
unicast-flood Disabled sw2#

- (Topic 4)
A customer wants to connect a device to an autonomous Cisco AP configured as a WGB. The WGB is configured properly: however, it fails to associate to a CAPWAP- enabled AP. Which change must be applied in the advanced WLAN settings to resolve this issue?

1. A. Enable Aironet IE.
2. B. Enable passive client.
3. C. Disable AAA override.
4. D. Disable FlexConnect local switching.

Correct Answer: A

- (Topic 2)
In a Cisco SD-WAN solution, how Is the health of a data plane tunnel monitored?

1. A. with IP SLA
2. B. ARP probing
3. C. using BFD
4. D. with OMP

Correct Answer: C
