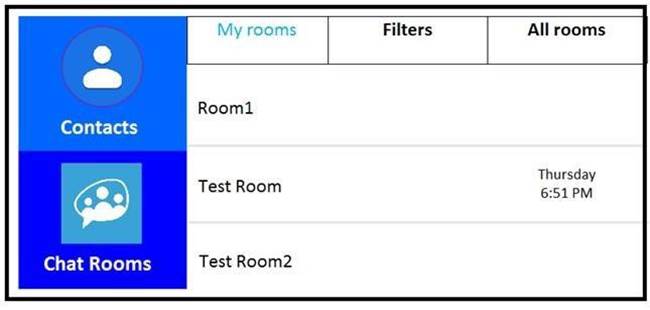

Refer to the exhibit.

Users report that they cannot see the Chat Rooms icon on their Cisco Jabber clients. This feature works without issue in the lab. An engineer reviews the Cisco IM&P and Jabber configuration and finds that the jabber-config.xml file is configured properly to support this feature. Which activity should be performed on the IM&P server to resolve this issue?

1. A. Activate Cisco XCP Connection Manager in Cisco Unified Serviceability > Tools > Service Activation.
2. B. Restart Cisco XCP Message Archiver in Cisco Unified Serviceability > Tools > Control Center – Feature Services.
3. C. Restart XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Control Center – Network Services.
4. D. Activate XCP Text Conference Manager in Cisco Unified Serviceability > Tools > Service Activation.

Correct Answer: D

An engineer is configuring DNS for service discovery in a jabber deployment for On-premises Clients. Which snippet will complete the SRV record name _ tcp.example.com?

1. A. _cisco_uds
2. B. _collab_edge
3. C. _xmp
4. D. server
5. E. _xmpp-client

Correct Answer: A

The persistent chat feature is configured in a Cisco Jabber deployment that is running Cisco Unified IM and Presence 11.5 SU6 Desktop clients are working but mobile clients are not displaying persistent chats. Which configuration Is necessary to enable the Jabber persistent chat feature on mobile devices?

1. A. while logged into IM and Presence server Administration, go to 'Messaging', then Settings", and check the checkbox for the 'Enable persistent chat for mobile" field
2. B. add the <Persistent_Chat_Mobile_Enabled>false</Persistent_Chat_Mobile_Enabled> line to the Jabber configuration file that is used by all Jabber devices
3. C. add the <Persistent_Chat_Enable>true</Persistent_Chat_Enabled> line to the Jabber configuration rule that is used by mobile devices
4. D. add "Enable_Persistent_Chat'' in the "Cisco Support Field' on the Jabber for mobile device configuration page on Cisco UCM

Correct Answer: B

What is a step in the SAML SSO process?

1. A. The IdP redirects the SAML response to the browser.
2. B. The LDAP server extracts the assertion.
3. C. The service provider issues an authentication challenge to the browser.
4. D. The browser issues an HTTPS POST request to the IdP.

Correct Answer: A

Which operating system is supported for smart card-based authentication on Jabber and Cisco UCM platforms?

1. A. Mac OS
2. B. Linux
3. C. Chrome OS
4. D. Windows

Correct Answer: D
