Which table holds IP address, MAC address and VXLAN/VLAN information on a Cisco ACI leaf?

1. A. endpoint
2. B. adjacency
3. C. RIB
4. D. ARP

Correct Answer: A
Reference: https://www.cisco.com/c/en/us/solutions/collateral/data-center-virtualization/application-centric-infrastructure/white-paper-c11-739989.html

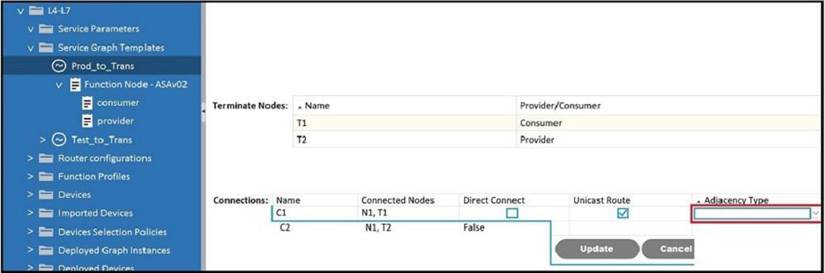

Refer to the exhibit.

Which Adjacency Type value should be set when the client endpoint and the service node interface are in a different subnet?

1. A. Routed
2. B. Unicast
3. C. L3Out
4. D. L3

Correct Answer: D

Which components must be configured for the BGP Route Reflector policy to take effect?

1. A. spine fabric interface overrides and profiles
2. B. access policies and profiles
3. C. pod policy groups and profiles
4. D. leaf fabric interface overrides and profiles

Correct Answer: A
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/4-x/L3-configuration/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401/Cisco-APIC-Layer-3-Networking-Configuration-Guide-401_chapter_01.html

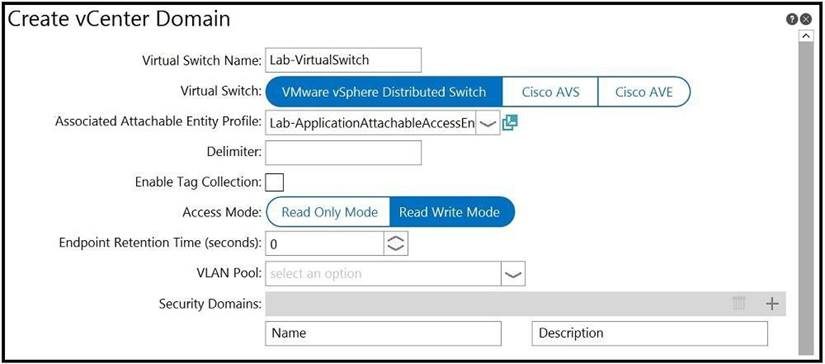

Refer to the exhibit.

An engineer is integrating a VMware vCenter with Cisco ACI VMM domain configuration. ACI creates port-group names with the format of “Tenant | Application | EPG”. Which configuration option is used to generate port groups with names formatted as “Tenant=Application=EPG”?

1. A. enable tag collection
2. B. security domains
3. C. delimiter
4. D. virtual switch name

Correct Answer: D

Which attribute should be configured for each user to enable RADIUS for external authentication in Cisco ACI?

1. A. cisco-security domain
2. B. cisco-auth-features
3. C. cisco-aci-role
4. D. cisco-av-pair

Correct Answer: D
Reference: https://www.cisco.com/c/en/us/td/docs/switches/datacenter/aci/apic/sw/2-x/Security_config/b_Cisco_APIC_Security_Configuration_Guide/b_Cisco_APIC_Security_Guide_chapter_01011.html
