Refer to the exhibit. After a failover occurs, which two actions must be performed on Switch-B to manually preempt the operational primary role back to Switch-A? (Choose two.) A. Configure the local vPC role priority to have a lower value than Switch-A.

1. A. Configure the local vPC role priority to have a higher value than Switch-A.
2. B. Disable and then re-enable the vPC peer-keepalive link.
3. C. Configure the local vPC role priority to have the same value as Switch-A.
4. D. Disable and then re-enable the vPC peer link.

Correct Answer: BE

A request to activate the port security database is rejected. Which action do you perform to investigate the cause of the issue?

1. A. Enable the auto-learning feature.
2. B. Use the force option to identify rejected devices.
3. C. Find conflicting entries between the active and configuration databases.
4. D. Verify that devices are fully attached to the active database.

Correct Answer: B

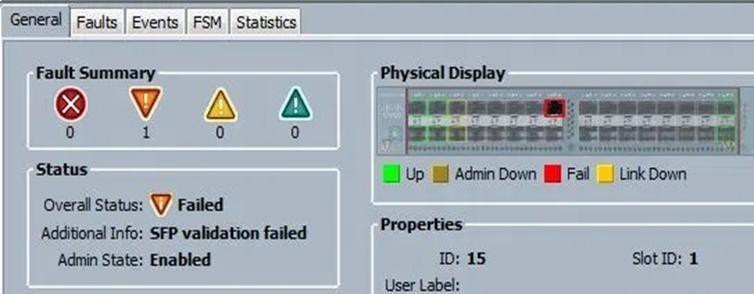

Refer to the exhibit. When an engineer inserts 8-Gb FC SFP port 15 on a Cisco UCS Fabric Interconnect, the port fails. What is a possible cause of the issue?

1. A. Port 15 is configured as an Ethernet port.
2. B. Port 15 is configured for 4-Gb FC.
3. C. Port 15 is missing a license.
4. D. The polarity of the fiber cable is reversed.

Correct Answer: B

Refer to the exhibit. Sw1 and Sw2 are two Cisco Nexus 9000 Series Switches that run Cisco NX-OS. They are VTEPs in the same vPC domain. Which statement describes what happens in this scenario?

1. A. Sw1 drops all traffic because there is no (S, G) OIF list to encapsulate VXLAN multicast packets and send them out to the underlay network through the uplink interfaces.
2. B. Sw1 performs the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs.
3. C. Sw1 and switch 2 perform the VxLAN multicast encapsulation and decapsulation for all traffic associated with the VxLAN VNIs, depending on the hashing.
4. D. Sw2 did not send an IP PIM register to the rendezvous point for the multicast group of the VXLAN VNI.

Correct Answer: B

The Cisco Nexus switch is connected to a peer switch that is not running Cisco NX-OS. The switches are connected using port channel and are experiencing packet loss. Which action should be performed on the Cisco Nexus switch ports to resolve this issue?

1. A. Turn on lacp suspend-individual.
2. B. Turn on lacp graceful-convergence.
3. C. Turn off lacp graceful-convergence.
4. D. Turn off lacp suspend-individual.

Correct Answer: C
