- (Exam Topic 1)
The CTO of a company requires the support of a network consultant to deliver an MPLS solution without resigning to a certain degree of redundancy and scalability. Which solution effectively scales to hundreds or thousands of sites?

1. A. L2VPN with the broadcast traffic processed at the ingress PE.
2. B. L3VPN with direct LSP connectivity between all PEs.
3. C. L2VPN by encapsulating multiple frame formats with interworking.
4. D. L3VPN using a hierarchical topology of N-PEs and U-PEs.

Correct Answer: D

- (Exam Topic 2)

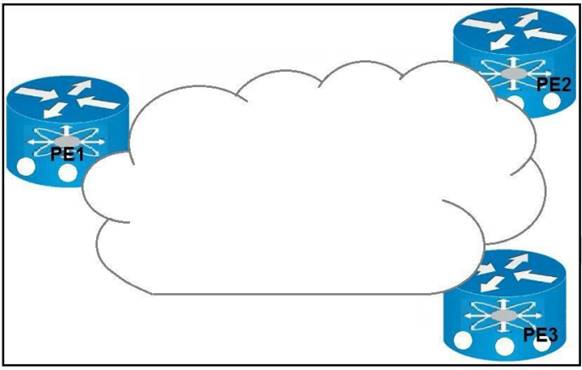

Refer to the exhibit.

Which result occurs when PE1 learns a new MAC address and all three PEs are enabled with EVPN native?

1. A. A system notification is sent to the network administrator that triggers the manual configuration of the new MAC address on PE2 and PE3.
2. B. The new MAC address is sent by BGP to PE2 and PE3 as a Type 2 BGP route.
3. C. The MAC address is entered into the CAM table and is classified for use on the native VLAN
4. D. The MAC address is entered into the CAM table only if it is learned on the native VLAN.

Correct Answer: B
Reference: https://www.cisco.com/c/en/us/td/docs/routers/asr9000/software/asr9k-r6-4/lxvpn/configuration/ guide/b-l2vpn-cg-asr9000-64x/b-l2vpn-cg-asr9000-64x_chapter_01011.html

- (Exam Topic 2)

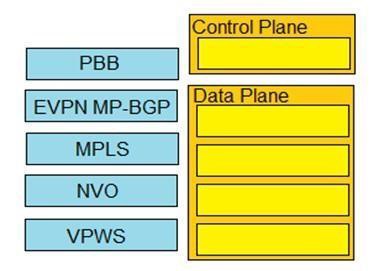

Drag and drop the EVPN components from the left onto the correct planes on the right.

Solution:
Reference:
https://www.cisco.com/c/dam/m/en_us/network-intelligence/service-provider/digital-transformation/knowledge-network-webinars/pdfs/0420-epn-ckn.pdf slide 8

Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

- (Exam Topic 3)

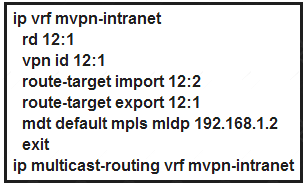

Refer to the exhibit.

Which statement about this configuration is true?

1. A. Router 1 will accept multicast routes with a route-target of 12:1.
2. B. 192.168.1.2 must be reachable by all routers participating in the mvpn-intranet MVRF.
3. C. Router 1 has statically defined thresholds for data MDT.
4. D. The MVRF must be configured on each router on the customer and service provider networks.

Correct Answer: A

- (Exam Topic 3)
Which two statements about MPLS L3 VPN RDs are true? (Choose two.)

1. A. They enable EIGRP to use address families to separate traffic between IPv4 and VPNv4.
2. B. They are represented as 32-bit values
3. C. They are represented as 64-bit values.
4. D. They enable OSPF to import and export routes into the global routing table of a router.
5. E. E.They allow BGP to uniquely identify duplicate routes.

Correct Answer: CE
