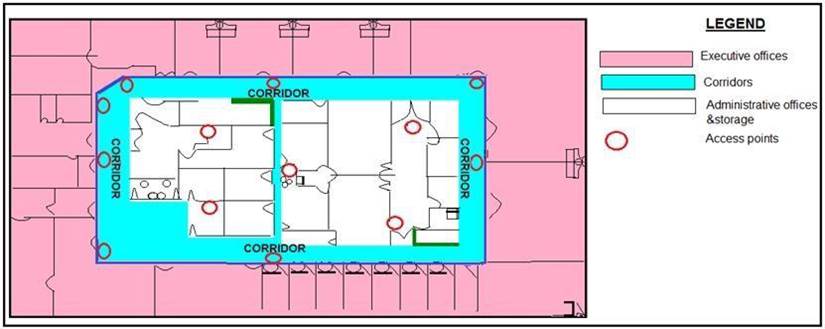

Refer to the exhibit.

What is the main reason why the Wi-Fi design engineer took a different approach than installing the APs in the offices, even though that installation provides better coverage?

1. A. aesthetics
2. B. transmit power considerations
3. C. antenna gain
4. D. power supply considerations

Correct Answer: B
https://www.cisco.com/en/US/docs/solutions/Enterprise/Mobility/emob30dg/RFDesign.html#wp1000551

A high-density wireless network is designed. Which Cisco WLC configuration setting must be incorporated in the design to encourage clients to use the 5 GHz spectrum?

1. A. RRM
2. B. Cisco centralized key management
3. C. Band select
4. D. Load balancing

Correct Answer: C

Why is 802.11a connectivity reduced in an X-ray room?

1. A. X-rays create significant non-Wi-Fi interference on the 802.11a band.
2. B. X-rays impact the 802,11a UNll-2 channels that cause access points to dynamically change channels.
3. C. X -rays within these rooms cause multipath issues.
4. D. X-ray rooms exhibit increased signal attenuation.

Correct Answer: A
portable X-ray machines, sending high-resolution images, sometimes in real time, echography machines, and electrocardiography [ECG] machines). These devices may also use the same spectrum as Wi-Fi but with other protocols and, therefore, become sources of interference for your system.

WLC SSO is set up between two WLCs in a service provider network serving public spaces. On WLC
failover, it is noticed that only about half of the original client count is now showing on the secondary WLC, although it is currently showing the role as active. Which design side case explains the issue?

1. A. The secondary WLC platform does not support the required client count.
2. B. The WLCs had not completed database sync before the primary failure.
3. C. SSO is not configured correctly.
4. D. Some client sessions were in WebAuth-Req state before failover.

Correct Answer: D

A company has 10 access point licenses available on their backup Cisco WLC and their primary Cisco WLC is at full capacity, 5 access points are set to high failover priority and 7 access points are set to critical failover priority. During a failure, not all critical access points failed over to the backup Cisco WLC. Which configuration
is the cause of this issue?

1. A. The high priority access point is oversubscribed.
2. B. network ap-priority is set to enable.
3. C. The critical priority access point count is oversubscribed.
4. D. network ap-priority is set to disable.

Correct Answer: D
https://www.ciscolive.com/c/dam/r/ciscolive/emea/docs/2016/pdf/BRKCOL-2275.pdf
