How should the IP addresses be assigned for all members of a Cisco vManage cluster located in the same data center?

1. A. in the same subnet
2. B. in overlapping IPs
3. C. in each controller with a /32 subnet
4. D. in different subnets

Correct Answer: A

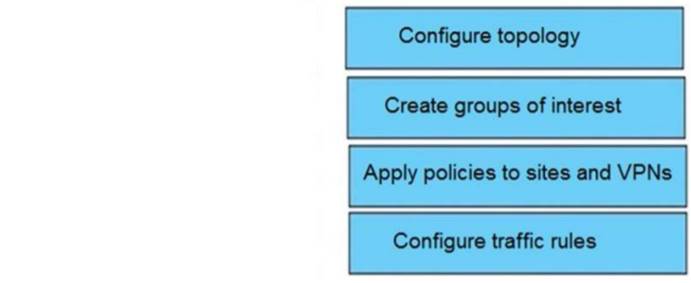

Drag and drop the vManage policy configuration procedures from the left onto the correct definitions on the right.

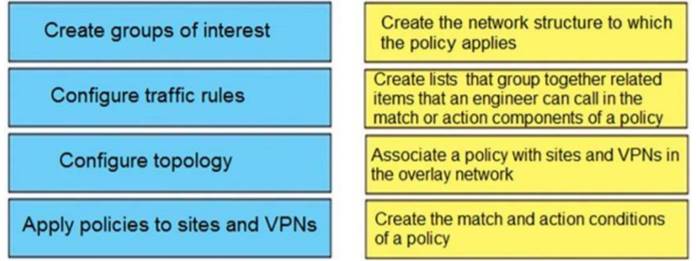

Solution:


Does this meet the goal?

1. A. Yes
2. B. No

Correct Answer: A

Which protocol detects path status (up/down), measures loss/latency/jitter, and measures the quality of the IPsec tunnel MTU?

1. A. OMP
2. B. IP-SLA
3. C. BFD
4. D. DTLS

Correct Answer: C

An enterprise deployed a Cisco SD-WAN solution with hub-and-spoke topology using MPLS as the preferred network over the Internet. A network engineer must implement an application-aware routing policy to allow ICMP traffic to be load-balanced over both the available links. Which configuration meets the requirement?

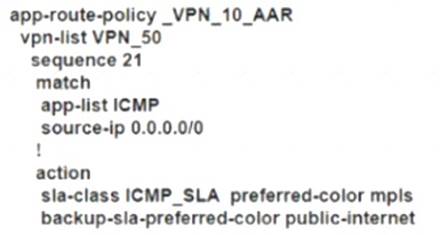

A)

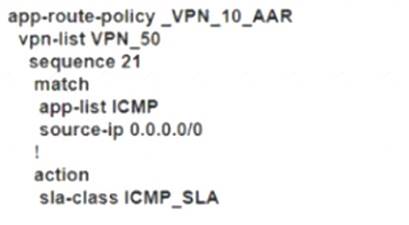

B)

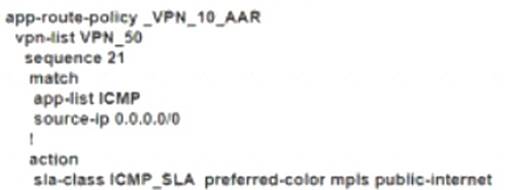

C)

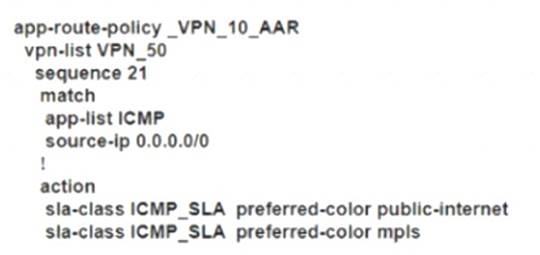

D)

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: C

Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

1. A. Real Time
2. B. System Status
3. C. ACL Logs
4. D. Events

Correct Answer: A

https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge-20-x/policies-book/service-c
