An engineer must avoid routing loops on the SD-WAN fabric for routes advertised between data center sites Which BGP loop prevention attribute must be configured on the routers to meet this requirement?

1. A. same OMP overlay-as on WAN Edge routers of all data centers
2. B. static routing on al WAN Edge routers instead of BGP
3. C. same BGP AS between all WAN Edge routers and CE routers
4. D. same BGP AS between all CE and PE routers

Correct Answer: A

A voice packet requires a latency of 50 msec. Which policy is configured to ensure that a voice packet is always sent on the link with less than a 50 msec delay?

1. A. centralized control
2. B. localized data
3. C. localized control
4. D. centralized data

Correct Answer: D
https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/ios-xe-17/policies-book-xe/applicat

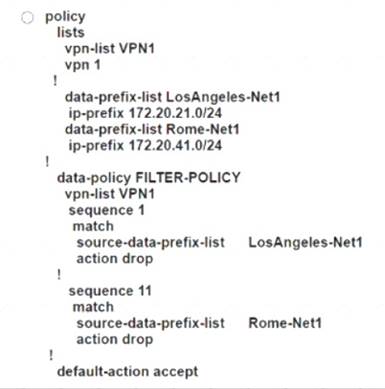

An engineer creates a data policy to prevent communication from the 172.20.21.0/24 network to the 172.20.41.0/24 network. Which configuration accomplishes this task?

1. A. Option A
2. B. Option B
3. C. Option C
4. D. Option D

Correct Answer: B

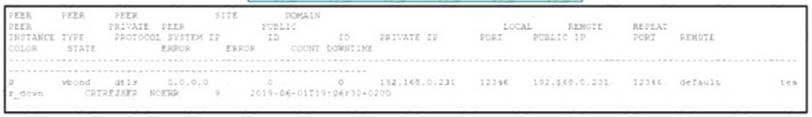

Refer to exhibit.

An engineer is troubleshooting tear down of control connections even though a valid Certificate Serial Number is entered Which two actions resolve the Issue? (Choose two)

1. A. Enter a valid serial number on the controllers for a given device
2. B. Remove the duplicate IP in the network.
3. C. Enter a valid product ID (model) on the PNP portal
4. D. Match the serial number file between the controllers
5. E. Restore network reachability for the controller

Correct Answer: CD
https://community.cisco.com/t5/networking-documents/sd-wan-routers-troubleshoot-control-connections/ta-p/38

A network administrator configures SNMFV3 on a Cisco WAN Edge router from CL I for monitoring purposes How many characters are supported by the snmp user username command?

1. A. from 1 to 8
2. B. from 1 to 16
3. C. from 1 to 32
4. D. from 1 to 48

Correct Answer: C
