- (Exam Topic 3)

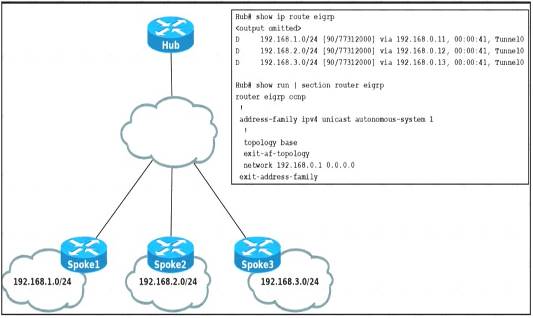

Refer to the exhibit.

Spoke routers do not learn about each other's routes in the DMVPN Phase2 network. Which action resolves the issue?

1. A. Remove default route from spoke routers to establish a spoke-to-spoke tunnel.
2. B. Configure a static route in each spoke to establish a spoke-to-spoke tunnel.
3. C. Rectify incorrect wildcard mask configured on the hub router network command.
4. D. Disable EIGRP split horizon on the TunnelO interface of the hub router.

Correct Answer: D

- (Exam Topic 3)
Refer to the exhibit.

While troubleshooting a BGP route reflector configuration, an engineer notices that reflected routes are missing from neighboring routers. Which two BGP configurations are needed to resolve the issue? (Choose two)

1. A. neighbor 10.1.1.14 route-reflector-client
2. B. neighbor R2 route-reflector-client
3. C. neighbor 10.1.1.2 allowas-in
4. D. neighbor R4 route-reflector-client
5. E. neighbor 10.1.1.2 route-reflector-client

Correct Answer: AE

- (Exam Topic 3)
What is a characteristic of Layer 3 MPLS VPNs?

1. A. LSP signaling requires the use of unnumbered IP links for traffic engineering.
2. B. Traffic engineering supports multiple IGP instances
3. C. Traffic engineering capabilities provide QoS and SLAs.
4. D. Authentication is performed by using digital certificates or preshared keys.

Correct Answer: C
Reference:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_te_diffserv/configuration/15-mt/mp-te-diffserv-15-mt-bo
MPLS traffic engineering supports only a single IGP process/instance
The MPLS traffic engineering feature does not support routing and signaling of LSPs over unnumbered IP links.
Reference: https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/mp_te_path_setup/configuration/xe- 3s/mp-te-path-setup-xe-3s-book/mp-te-enhance-xe.html

- (Exam Topic 1)
Which protocol is used in a DMVPN network to map physical IP addresses to logical IP addresses?

1. A. BGP
2. B. LLDP
3. C. EIGRP
4. D. NHRP

Correct Answer: D

- (Exam Topic 3)
A network administrator performed a Compact Flash Memory upgrade on a Cisco Catalyst 6509 Switch. Everything is functioning normally except SNMP, which was configured to monitor the bandwidth of key interfaces but the interface indexes are changed. Which global configuration resolves the issue?

1. A. snmp-server ifindex permanent
2. B. snmp ifindex permanent
3. C. snmp-server ifindex persist
4. D. snmp ifindex persist

Correct Answer: C
The SNMP ifIndex persistence feature provides an interface index (ifIndex) value that is retained and used when the router reboots. The ifIndex value is a unique identifying number associated with a physical or logical interface. In the following example, SNMP ifIndex persistence is enabled for all interfaces:
router(config)# snmp-server ifindex persist
