- (Exam Topic 3)

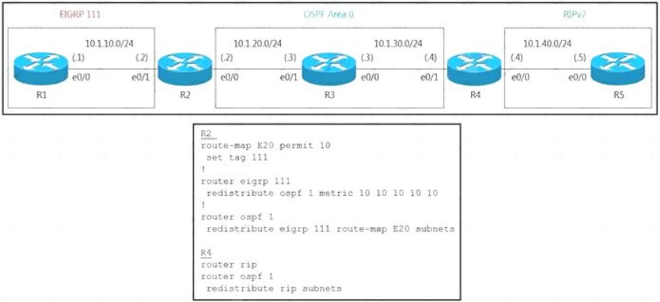

Refer to the exhibit.

R5 should not receive any routes originated in the EIGRP domain. Which set of configuration changes removes the EIGRP routes from the R5 routing table to fix the issue?

1. A. R4route-map O2R deny 10 match tag 111route-map O2R permit 20!router ripredistribute ospf 1 route-map O2R metric 1
2. B. R2route-map E20 deny 20 R4route-map O2R deny 10 match tag 111!router ripredistribute ospf 1 route-map O2R metric 1
3. C. R4route-map O2R permit 10 match tag 111route-map O2R deny 20!router ripredistribute ospf 1 route-map O2R metric 1
4. D. R4route-map O2R deny 10 match tag 111!router ripredistribute ospf 1 route-map O2R metric 1

Correct Answer: A
In this question, routes from EIGRP domain are redistributed into OSPF (with tag 111) then RIPv2 but without any filtering so R5 learns all routes from both EIGRP and OSPF domain. If we only want R5 to learn routes from OSPF domain then we must filter out routes with tag 111 and permit other routes. The line “route-map O2R permit 20” is important to allow other routes because of the implicit deny all at the end of each route-map.

- (Exam Topic 1)
Which two statements about redistributing EIGRP into OSPF are true? (Choose two)

1. A. The redistributed EIGRP routes appear as type 3 LSAs in the OSPF database
2. B. The redistributed EIGRP routes appear as type 5 LSAs in the OSPF database
3. C. The administrative distance of the redistributed routes is 170
4. D. The redistributed EIGRP routes appear as OSPF external type 1
5. E. The redistributed EIGRP routes as placed into an OSPF area whose area ID matches the EIGRPautonomous system number
6. F. The redistributed EIGRP routes appear as OSPF external type 2 routes in the routing table

Correct Answer: BF

- (Exam Topic 2)

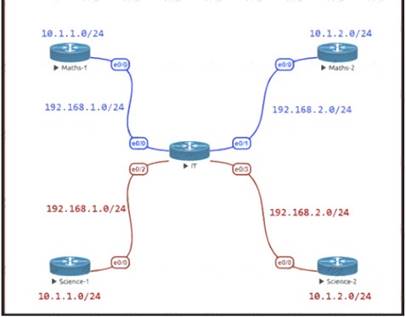

Refer to the exhibit.

The Math and Science departments connect through the corporate. IT router but users in the Math department must not be able to reach the Science department and vice versa Which configuration accomplishes this task?

1. A. vrf definition Scienceinterface E 0/2ip address 192.168.1.1 255.255.255.0no shutinterface E 0/3ip address 192.168.2.1 255.255.255.0no shut
2. B. vrf definition Science address-family ipv4!interface E 0/2ip address 192.168.1.1 255.255.255.0vrf forwarding Science no shut!interface E 0/3ip address 192.168.2.1 255.255.255.0vrf forwarding Science no shut
3. C. vrf definition Science address-family ipv4!interface E 0/2ip address 192.168.1.1 255.255.255.0no shut!interface E 0/3ip address 192.168.2.1 255.255.255.0no shut
4. D. vrf definition Science address-family ipv4!interface E 0/2vrf forwarding Scienceip address 192.168.1.1 255.255.255.0no shut!interface E 0/3vrf forwarding Science ip address 192.168.2.1

Correct Answer: D

- (Exam Topic 1)

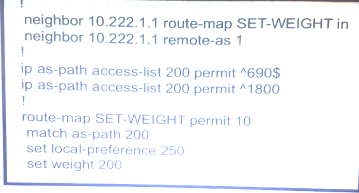

Refer to the exhibit.

A router receiving BGP routing updates from multiple neighbors for routers in AS 690. What is the reason that the router still sends traffic that is destined to AS 690 to a neighbor other than 10.222.1.1?

1. A. The local preference value in another neighbor statement is higher than 250.
2. B. The local preference value should be set to the same value as the weight in the route map.
3. C. The route map is applied in the wrong direction.
4. D. The weight value in another neighbor statement is higher than 200.

Correct Answer: C

- (Exam Topic 1)

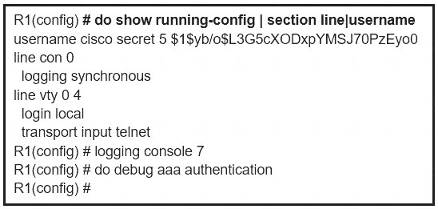

Refer to the exhibit.

An administrator that is connected to the console does not see debug messages when
remote users log in. Which action ensures that debug messages are displayed for remote logins?

1. A. Enter the transport input ssh configuration command.
2. B. Enter the terminal monitor exec command.
3. C. Enter the logging console debugging configuration command.
4. D. Enter the aaa new-model configuration command.

Correct Answer: C
The logging console is a default and hidden command.
