- (Exam Topic 3)

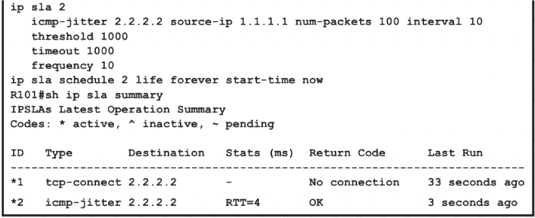

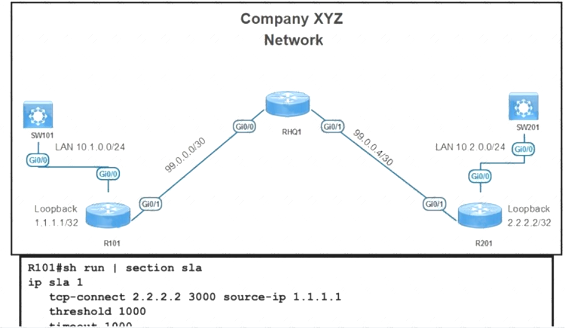

Refer to the exhibit While troubleshooting an issue on the network, an engineer notices that a TCP Connect operation failed on port 3000 between R101 and R201. Which command must be configured on R201 to respond to the R101 IP SLA configurations with a control connection on UDP port 1967?

1. A. ip sla responder udp-echo ipaddress 1.1.1.1 port 1967
2. B. ip sla responder tcp-connect ipaddress 1.1.1.1 port 3000
3. C. ip sla responder tcp-connect ipaddress 2.2.2.2 port 3001
4. D. ip sla responder

Correct Answer: A

- (Exam Topic 2)

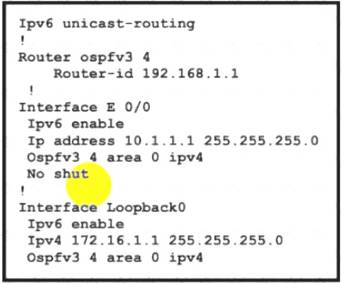

Refer to the exhibit. The network administrator configured the branch router for IPv6 on the E 0/0 interface The neighboring router is fully configured to meet requirements, but the neighbor relationship is not coming up. Which action fixes the problem on the branch router to bring the IPv6 neighbors up?

1. A. Enable the IPv4 address family under the E 0/0 interface by using the address-family Ipv4 unicast command
2. B. Disable IPv6 on the E 0/0 interface using the no ipv6 enable command
3. C. Enable the IPv4 address family under the router ospfv3 4 process by using the address-family ipv4 unicast command
4. D. Disable OSPF for IPv4 using the no ospfv3 4 area 0 ipv4 command under the E 0/0 interface.

Correct Answer: C
Once again, Cisco changed the IOS configuration commands required for OSPFv3 configuration. The new OSPFv3 configuration uses the “ospfv3” keyword instead ofthe earlier “ipv6 router ospf” routing process command and “ipv6 ospf” interface commands.
The Open Shortest Path First version 3 (OSPFv3) address families feature enables both IPv4 and IPv6 unicast traffic to be supported. With this feature, users may havetwo processes per interface, but only one process per address family (AF).

- (Exam Topic 3)

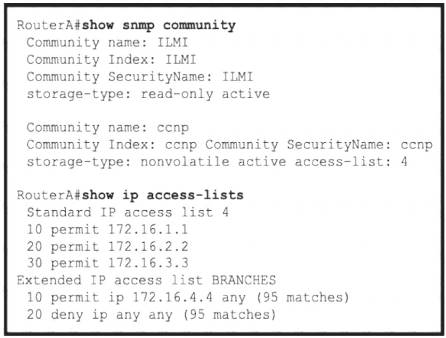

Refer to the exhibit The SNMP server with IP address 172.16 4 4 cannot access host router A Which configuration command on router A resolves the issue?

1. A. snmp-server community ccnp
2. B. access-list 4 permit 172.16.4.0 0.0.0.3
3. C. access-list 4 permit host 172.16.4.4
4. D. snmp-server host 172.16.4.4 ccnp

Correct Answer: D

- (Exam Topic 3)

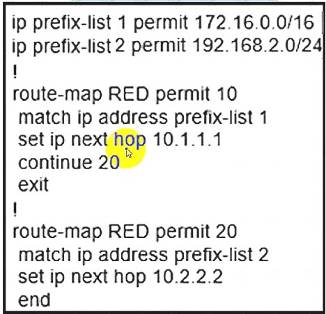

Refer to the exhibit.

The forwarding entries how that the next hop for prefixes from the 172.16.0.0/16 network is set to 10.2.2.2 instead of 10.1.1.1. Which action resolves the issue?

1. A. Add set ip next hop 10.1.1.1 in route-map RED permit 20.
2. B. Add the continue statement in route-map RED permit 10 instead of continue 20.
3. C. Remove match ip address prefix-list 1 from route-map RED permit 10.
4. D. Remove the continue 20 statement from route-map RED permit 10

Correct Answer: D

- (Exam Topic 1)
Which protocol does VRF-Lite support?

1. A. IS-IS
2. B. ODR
3. C. EIGRP
4. D. IGRP

Correct Answer: C
